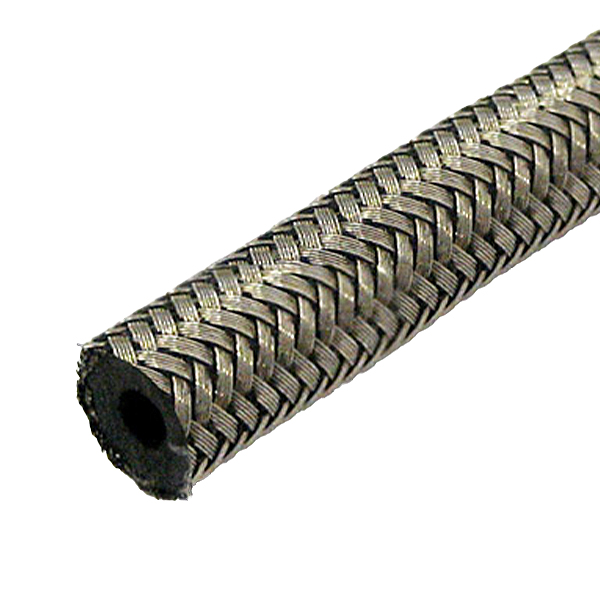

Stratoflex 156 Medium Pressure Hose

From $19.65 to $37.85
Part Number Tube OD Hose OD Hose ID Max PSI Mini Blend Price Buy
156-3
.188.376.15615001.75$19.65
Quantity
156-4
.250.440.21915002.00$20.50
Quantity
156-5
.312.486.28115002.25$21.50
Quantity
156-6
.375.549.34415002.50$22.50
Quantity
156-8
.500.651.43812503.50$24.85
Quantity
156-10
.625.797.56212504.00$27.55
Quantity
156-12
.750.938.68812504.50$32.60
Quantity
156-16
1.0001.156.87510005.50$37.85
Quantity
Subtotal $0.00
Add to Wishlist

Overview

Stratoflex 156 Hose. Sold by the foot.
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Stratoflex 156 hose is a bit different than Aeroquip 601 hose in that Stratoflex fittings for the hose use an additional separate ferrule and have an O-ring. Oddly when I contacted Stratoflex tech support to ask for a fitting installation process they dont publish one for liability reasons as opposed to Aeroquip whose process is in the Aircraft Spruce catalog! All Stratoflex would tell me is to go to AC43.13 but that only shows the Aeroquip 601 kind of hose fitting configuration. Bottom line is I winged it installing the Stratoflex fittings trying to follow the 601 process and it seemed to work but havent pressure tested it yet...

Rick
August 2, 2018

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is Stratoflex 156 equivalent to Aeroquip 601 hose? Are Aeroquip 816 fitting compatible with Stratoflex 156? Thanks...

The Aeroquip 601 and Stratoflex 156 are equivalent to each other, but we can only recommend to use like manufacturer fittings and hose when making an assembly.
