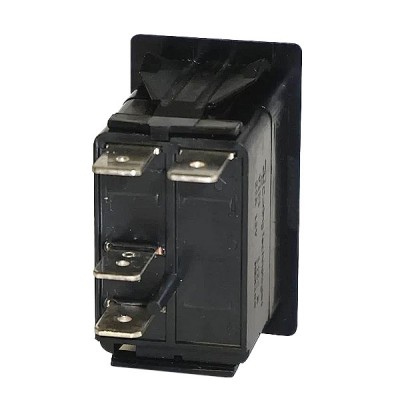

Part# 11-15097
MFR Model# V1D1-GXXB
StepsModel NumberDescriptionContactPart Number

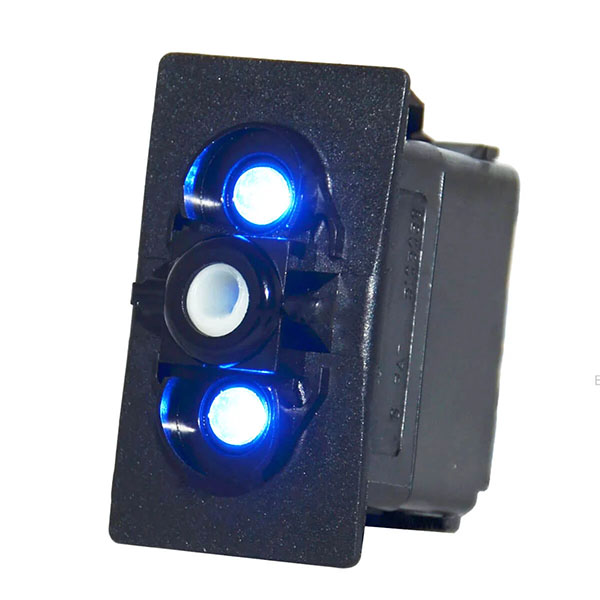

--V1D1-GXXBOn-Off Blue LightSPST11-15097


Carling Technologiesí sealed V-Series Contura switches are well known for their cutting edge design, high quality, maximum performance and unmatched reliability. These switches are a staple in the marine and transportation industries and have passed a range of environmental, corrosion, temperature, vibration, shock and sealing tests including MIL Std 202F, MIL Std 510.1, UL 1500, ISO 8846, IEC 60529 and BS 5490 among others, making them one of the most rugged and reliable switches ever manufactured.
California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm -


  • Certified to IP66/68 with dual seals around lamps and rocker stem.
  • Silver plated butt contact mechanism provides reliability up to and beyond 100K electrical cycles
  • Greaseless construction withstands temperature extremes down to -40 ̊C
  • The switch accommodates up to 10 terminals and endless illumination and circuit options.
  • The switch connector allows the user to preload FQC terminals for ease of assembly.
  • Numerous choices of removable rockers allow for style change without having to retest or re-qualify the switch base.

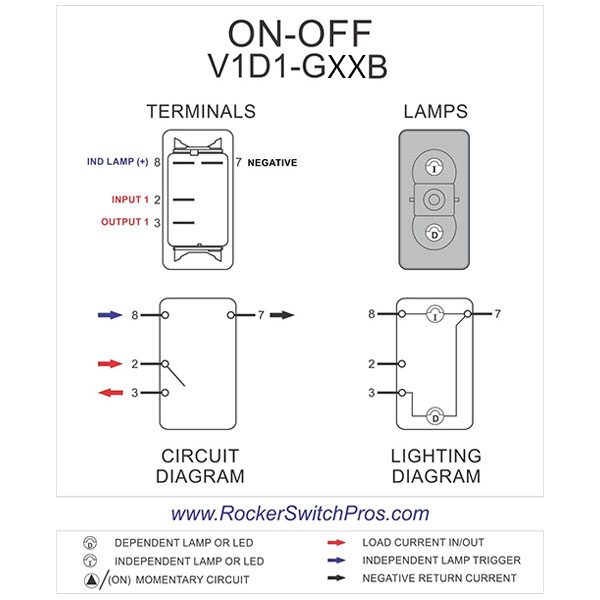

Reference Chart


Carling Switches and accessories are very good quality. Solid dimensionally and properly designed for long use, in my opinion. Aircraft Spruce should carry the quick connect box so we dont have to buy the from Newark Products on line.

April 15, 2018

Great product. Solid. Dimensionally sound and easy to work with. Suggestion for Aircraft Spruce..... begin to carry the 8-post VCH-01 Quick Connect box for these switches so I dont have to go to Newark Products to buy them.

April 15, 2018

Gave two stars do to poor description. Needed more info in the description. The (On)-Off SPST was not clearly stated, in fact it is only described in a question buy a user, down in the Q&A. I thought that the (On) described the Light operation on the switch but it turns out it is a momentary On switch. Order two new On-Off SPST switches.

Darrin T
July 20, 2020


Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Switch part numbers v1d1-gxxb and v2d1-axob. the word in parentheses, does that mean when the light is on?

No, if the on or off is in parenthesis, for example (on) or (off), that means the function is momentary. If you release it, it will return to the previous position. For example, if you have a switch that is (on) - off - (on), that means that it is off in the middle, if you press it either way it will go on, but when you release it will return to the center off position.

Q: Are these Carling switches and covers for certificated aircraft?--Looking for a PA-16

These switches do not have any FAA Approval.

Q: Is the lighting of the Carling switches LED or incandescent?

The white lights are incandescent, the blue and red are LEDs.

Q: What are the connectors PN for these switches?

Per the manufacturer you can use AMP terminal receptacles. An example is 640903-1

Q: Which Contura series are these switches - IV, V, VII or ??? I may need to purchase the switch bodies elsewhere since you dont appear to stock the type Im looking for. But I do plan to purchase covers from you.

These are the V series

Q: Is the backlight and indicator light on these switches dimmable?

The ones that are lit are dimmable but only the top lamp and not the indicator light.
