Lord Instrument Panel Shock Mount

From $13.50 to $31.50
Model Part Number Price Buy

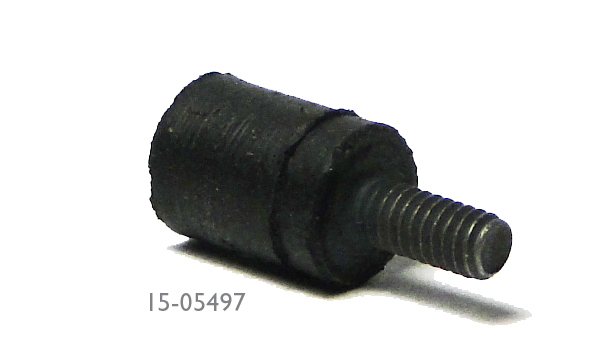

M7505
15-05497
$13.50
Quantity

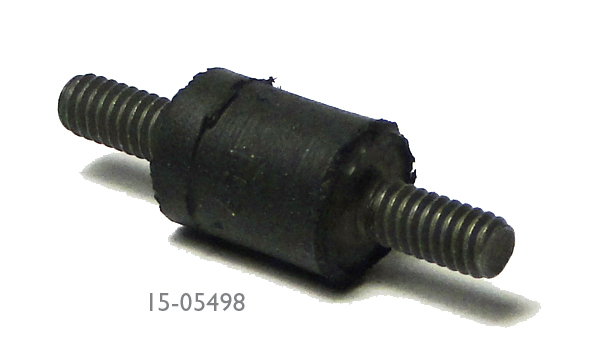

M7504
15-05498
$31.50
Quantity
Subtotal $0.00
Add to Wishlist

Overview

Lord Instrument Panel Mounts

Miniature Sandwich mounts are ideal for vibration isolation of instrument panels. Available in two different sizes and styles. Body constructed of top quality Neoprene Rubber.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications


Model Shear Load Compression T Stud Length #1 Threads Stud Length #2 Threads
M7505 1.0 lbs 6 lbs .50" .38" 8-32 - 8-32
M7504 1.5 lbs 10 lbs .50" .38" 8-32 .38" 8-32
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Replaced Beech A36 L/H Panel Mounts Perfectly!

Cody A Verified Purchase

LORD INSTRUMENT PANEL MOUNT 1.0 LB

February 15, 2024

Exact replacement for my c150 dash mount.

Cowans A Verified Purchase

LORD INSTRUMENT PANEL MOUNT 1.5 LBS

July 15, 2021

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What are the dimensions and thread sizes of the Lord Instrument Panel Mount 1.5lbs?

Per the manufacturer, the diameter is .38in, the stud on each end is 3/8in, the depth is 1/2in and the screw is an 8/32.

Q: Regarding the Lord Instrument Panel Shock Mounts: Is the thread material non-magnetic? What metal is it?

The thread material is steel and it is magnetic.

Q: Regarding the #M7505, how long is stud length #2, or in other words, what length screw should I get?

The threaded stud is .38" long. It is listed on the chart. Listed as STUD LENGTH #1.

Q: What is the depth of the screw hole in M7505?

It is approx 1/4".

Q: Does it come with nuts and screws to attach to the panel?

No, this is the mount only, 8-32 is the thread.

Q: The M7505 instrument panel shock mount Is it male/female or just male and what would be the diameter and depth of the female if it has one?

male thread 8-32, female depth: 5/16, female thread: 8-32
