Active Extinguisher Line (15 Ft)

$698.00/Each
Quantity
Add to Wishlist
Part# 13-03266
MFR Model# CA 1X/5/WK

Overview

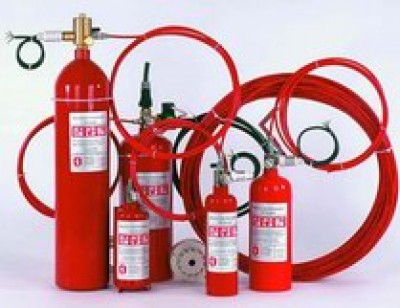

Active Extinguishing Line is totally independent fire extinguishing system from any power source. Its main secret lies in the heat detector in a form of a line made out of special laser predrilled polymer, which will react instantly to any source of heat or fire. This line (heat detector) is connected to reservoir containing fire-extinguishing agent: hexafluoropropane FE-36 or award winning Pyrocool FEF solution. Inside of the protected device (equipment) a loop made out of the heat detector breaks, creating a mini sprinkler, directly over source of fire or heat, extinguishing it instantly. In the moment of activation the system closed circuit switch collapses sending a signal informing of fire.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • Server Stations
  • Electrical Control Boxes
  • Power Supply
  • Engine Compartments
  • Electrical Motors
  • Cars, Trucks, Buses
  • Construction Equipment
  • Logging Equipment

Specifications

  • FE-36
  • Minimum Solution - 6.9%
  • Application Formula - 1lb. per cubic yd.
  • Working Pressure at 68° F - 174 psi
  • Temperature of Activation <194° F
  • Max. Length of Heat Detector – Up 30 ft.
  • Temperature Range – 4° F Up 140° F
  • Duration <10 seconds

Benefits

  • Self Contained
  • Non-Conductive (FE-36 only)
  • Non-Corrosive
  • Simple to Maintain
  • No Cleaning Necessary
  • Highly Effective in Bus, Truck, and
  • RV Engine Compartments
  • Halon Replacement Environmentally
  • Friendly (FE-36 Only)
