|4-API|| Aircraft Products
|4-ABI|| Alaskan Bushwheel
| Cessna XP
|4-TDG|| Scott 3200 & 3400,
ABI 3200, ABI 3400
|4-F24|| Fairchild 24, Beech
|4-RV|| Vans RV3, RV4,
RV6, RV7, RV8 & RV9(See Notes)

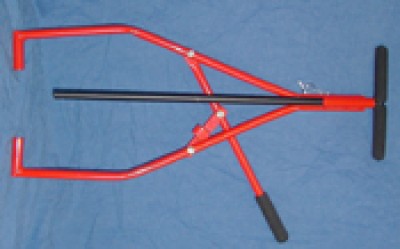

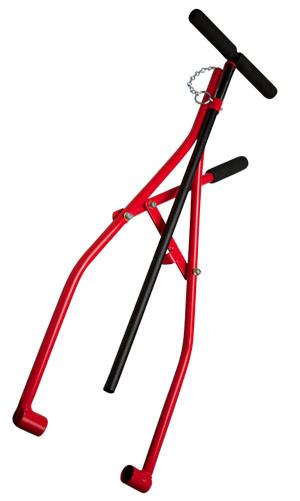

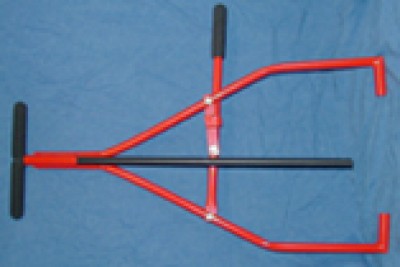

Operation: Extend the handle easily with high-shear quick release pin. Apply forward pressure on the spreader bar to open the wishbone jaws. Line up Bogi-Bar attachments at the tow points or axle depending on model. Release the tension on the spreader bar and youre Locked-On! The tow bar will not slip off the plane. Reversal for removal. Extended, the Bogi-Bars are slightly over 4 feet long unless noted.
Notes for 4-RV: 28" while the T handle is all the way down, and 48" when the T handle is all the way up. This will not fit with wheel pants. Fits RV3 & RV4 with tail wheel. Now fits RV6, RV7, RV8, and RV9.
For nosewheel aircraft Bogert tow bars, click here.
Works perfectly on my RV and RV8. Much easier to move my airplane around. A little pricey but effective.
Rugged, well made product that makes it easy to steer and control the plane while pulling it into the hangar. This my second one, for my Cessna 170. I have one for my experimental RV-7A, there it does double-duty as a gust lock, by jamming between the rudder pedals And seatback, and looping a strap around the stick.
Fits My RV3 with no modifications. Works great. Lights weight, compact for travel and storage.
The tow bar works great on my Steen Skybolt. I couldnt be more happy with the product. It arrived exactly when promised, which was just in time for my next flight.
Had to remove and reinstall the tail wheel cotter pin and the bar worked perfectly with no other adjustments necessary. Bar fits snug around both ends of bolt and is easy to attach and remove. havent traveled with it yet but like the way the T-handle collapses to make for easy storage.
Using this with my Stinson 108-1 and Scott Tailwheel. So far, so good--has a solid grip on the tail wheel and appears to turn the tailwheel easily for maneuvering.
Ive only used it a little bit (basically, only moved the airplane a few feet to see how well the tow bar worked), but it seems to be a great product. Clamps onto the tailwheel of my Super Decathlon very firmly. You do have to hold the bar kind of low to avoid hitting the aft lower corner of the rudder on the SD, but Bogert makes a Drop Handle to solve this problem (Im on the fence about spending another $50 for this). Also, I thought that the lever on the Bar would be some sort of over-center locking mechanism, but its actually used to spread the tongs to get them onto the wheel the tongs are held in place by the very firm springiness of the tongs themselves.
Great addition to the hangar. Allows greater precision when positioning the aircraft, can accurately and confidently place it into a tight space now. Folds nice and compact for travel, so it will likely join me on most flights away from home.
I have an RV-8. While it works well on the left nut, it is just a bit too small for the right nut (hence it slips off). Ill have to do a little machining to get it right, but beyond that, certainly something useful especially in tight spaces when manual pushing is difficult especially when the wheel turns once unlocked.
Did not fit my RV-6 tailwheel, but not their fault. Turns out I have an upgraded wheel and fork. Wish they sold a mod for my tailwheel. Thinking of welding on two sockets to the Bogi-Bar to increase the size of each tube.
Yes, Bogert model 4-RV (p/n 13-02408) will fit the RV-8.
Yes, this will work for an RV6.
Yes, this should work just fine.
You would want our part number 13-10000 for use with a Scott 3200.
The fully closed width is 5.5" | The fully open width is 8".
