Ground Support Tow Bar For 1-1/8 Axle

$158.00/Each
Quantity
Add to Wishlist
Part# 13-02110
MFR Model# M540-020

Overview

This is a universal tow bar designed for aircraft with 1-1/8" axles such as Cessna Skymaster and Piper Seneca. Fits nose wheel axle end caps.

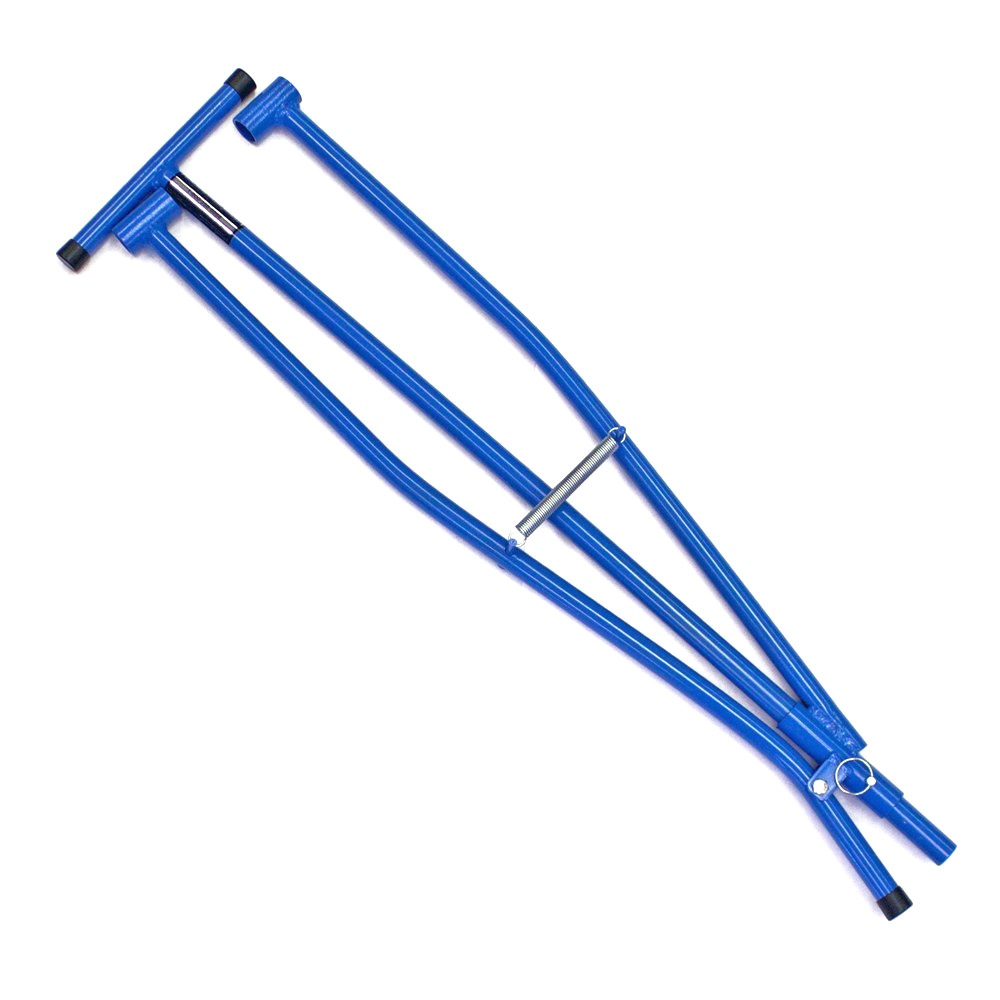

Collapsible Length: 33"

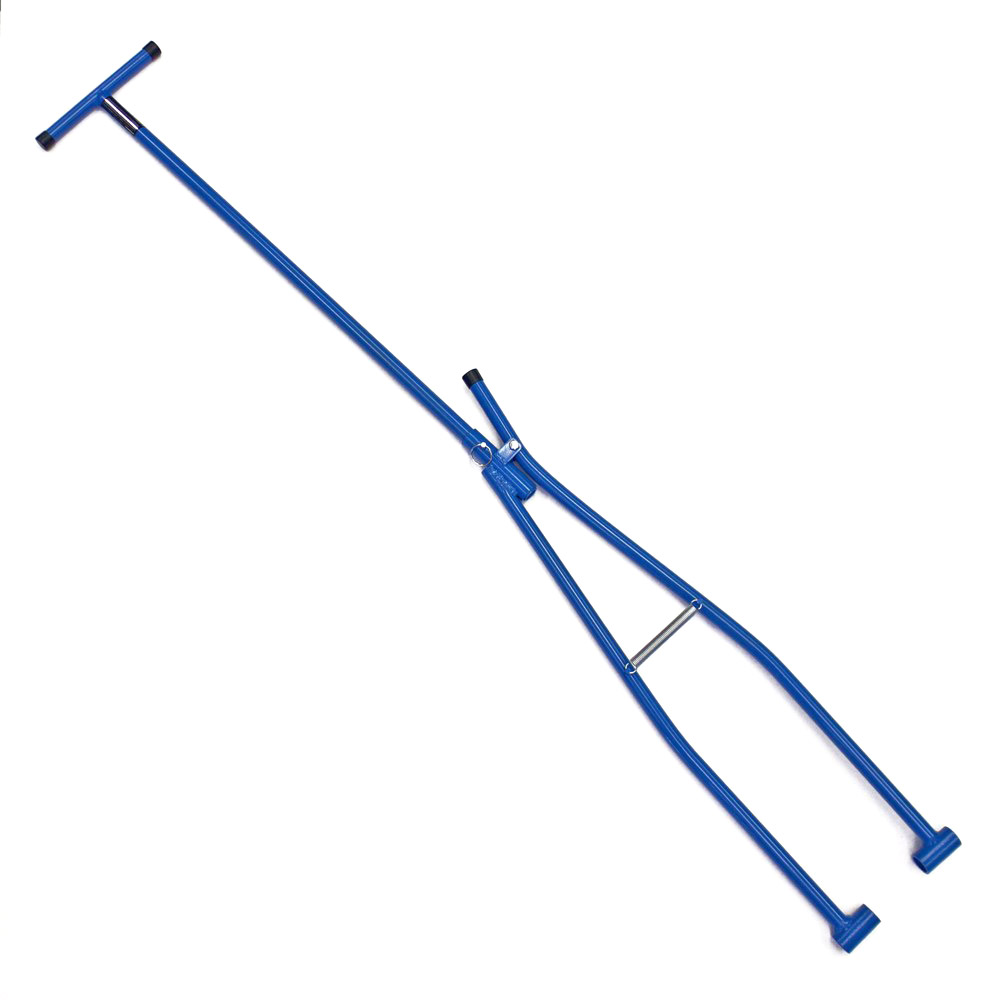

Overall Length: 56"

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Application Guide

  • CESSNA 310,337,414,421,PIPER COMANCHE,TWIN COMANCHE,APACHE,AZTEC,NAVAJO, CHEYENNE,SENECA

Specifications

  • Collapsible Length: 33"
  • Overall Length: 56"

Reviews

This TOWBAR works GREAT with the API 6131 tailwheel !!!!! I give it a 9.9 (nothing is perfect},, But this is close .....

Steve V Verified Purchase

Towbar - Lrg Cessna & Piper

September 14, 2022

The towbar I ordered was the perfect solution for my needs. I placed the order and picked it up the next day.

Robert H
April 27, 2020

This new towbar replaced the one that was in the plane when I bought it. The old one was not a good fit and damaged the front nose wheel pant. The new towbar is a perfect fit and makes the task of moving my plane much easier.

Bob H
April 24, 2020

As adverstised and exactly what I needed. My only complaint is it took nearly 3 months to get to me...due to back orders. Still very happy with Aircraft Spruce and the product.

Rick W
August 18, 2019

Excellent product at a good price.

Elias R
October 16, 2018

Good price for a quality built product.

Brent P
December 14, 2017

Often found myself needing a towbar when I landed my seneca out in the middle of nowhere airports. This towbar looks like it wouldnt hold on because the spring is kind of weak, but the physics of the design works. Nice, light, affordable, portable towbar that you can wrap up in a blanket and keep in the nose baggage compartment. Worth the money

Gregory S
February 27, 2016

Great product works excellent saved me quite a bit flying into new airports with tight spots

Saso N Verified Purchase

Towbar - Lrg Cessna & Piper

April 28, 2022

I purchased this towbar because of its overall length and low cost, not knowing if it would fit my application and expecting to have to make modifications. To my surprise it fit my Aviation Products tailwheel perfectly. The attach points have an inside diameter of 0.850 which fit the 3/4 head bolt/nut on my tailwheel exactly. My only complaint was that the handle section fit inside the fork section was extremely loose. Although it doesnt affect the function it does make the quality seem poor as the pieces just kind of flop around. I machined two thin wall bushings (.850 OD x .750 ID) and installed into the receiving tube of the fork. Now the two pieces go together snugly and the bar feels much more sturdy. Very happy overall.

Matthew B
April 26, 2022

Dayne K Verified Purchase

Towbar - Lrg Cessna & Piper

February 12, 2022

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What would be the OD of the attachment part of the towbar?

1.05"

Q: Whats the inside diameter of the attach points? Im looking at this as an alternative for a Cherokee. It would need a 3/4 ID to fit over the ends of the Cherokees tow bracket on the nose gear. Thanks...

It is made for 1-1/8 inch axles so the cup ID would be a little larger than that.

Q: Will this fit my PA-32 Lance (retractible gear)? I need a replacement tow bar and most PA-32 tow bars are for fixed gear Cherokees. Thanks

Per the supplier: We are not sure if this will work on the Lance. That towbar connects at the axle. So you would need to check how your old towbar connects to the aircraft. If it connects to the axle and is 1-1/8” axle then yes this will work. Most Cherokee aircraft have a plate with holes that the towbar goes into the holes. That towbar looks like a pitch fork bent down.
