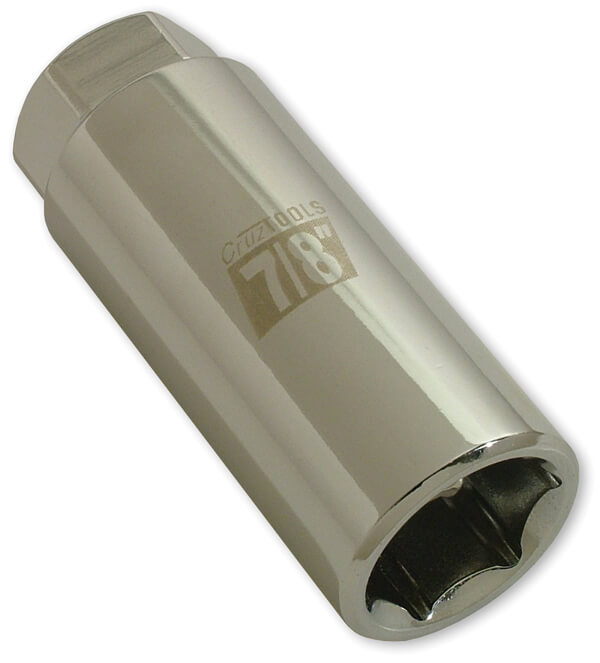

Aviation spark plugs have special needs; using a non-standard 7/8" hex, and exhaust manifolds can get in the way of wrench access. A thin-wall socket is necessary for many applications. To ensure compatibility with all makes of plugs including Champion and Tempest, a deep well is called for.
This Aviation Spark Plug Socket meets all these needs, with a combo hex and 3/8" drive for additional flexibility. Pro-quality.
Developed specifically for general aviation aircraft
Compatible with Tempest and Champion Spark Plugs
Thin wall for fit into narrow cavities
Combined built-in 1" hex and 3/8" drive permits added flexibility in manifold access
Lifetime guaranteed and professional quality
Dimensions: 3.15 Inches Length x 1.25 Inches in Diameter
Very satisfied with your product and fast delivery.
December 7, 2020
Great quality socket and worked perfectly!
March 7, 2019
Great product, fast shipping
April 13, 2018
January 7, 2018
Exactly what I needed.
September 15, 2017
Appears to be well made and fits the plugs nicely.
December 5, 2020
July 23, 2018
Works as you would expect, not clear it is any better than a Craftsman thin wall deep socket.
The Champion socket works better at retaining the plug.
January 14, 2018
good product, non magnetic socket.
March 6, 2017
As others have stated this socket has thick walls. I choose it because I needed the shortest overall socket length possible due to restricted space (engine baffling). It did hit the cylinder head cooling fins before bottoming out. I assumed I would have to lathe down the O.D., which I did. After reducing the O.D. it works fine.
July 6, 2017
It works fine when used with Champion spark plugs. But, it isn't as thin-walled as the Champion plug socket - and therefore every once in awhile it won't quite fit when removing or installing Tempest spark plugs.
This happened on Continental TSIO-360 and GTSIO-520 engines, where on two or three plugs the socket was simply too fat to fit past fuel injection hardware or, in some cases - past the spark plug relief cut.
A little judicious grinding solved the problem, but now the pretty chrome finish is toast.
May 16, 2015
Too thick. Can’t use on my Lycoming IO-360
March 11, 2021
This was initially was described on their website as 1.5 diameter. After bringing this problem to Aircraftspruces attention they changed the diameter to 1.25 (And said that customers simply have to see if the socket fits their requirements??!!) In order for an extended socket to fit into the sparkplug well of some Lycoming 0-360 engines the diameter has to be 1.18 (1 11/64) or less. This socket will not work unless it is modified to that diameter. Buyer beware !!!
September 27, 2019
Walls are too thick making it useless for bottom plugs on my IO540. It’s deep enough for the tempest fine wire but the walls won’t allow it to get past the spark plug relief cut into the cylinder. Since this is billed as an aviation spark plug, 1 Star. Otherwise it’s a good deep wall socket.
April 11, 2019
barely worked with tempest plugs in io360. NOT as thin walled as my IAs. Going to get one like his and return this one.
March 23, 2019
As mentioned by another reviewer, the walls are very thick. I didnt have time to return the socket so had to grind the walls thinner to make it fit in a Lycoming IO360-A1A.
November 24, 2016
It didn’t fit on the lower plugs of my O235. The OD of the socket is 1.25” and a regular 7/8” is 1.16”. Used a regular 7/8” deep socket. Kind of annoying since I waited for this to do the job.
March 24, 2018
This socket does not work with Tempest fine wire spark plugs. It works just great with Champion. I'll be returning this socket, since I have Tempest. The walls of the socket are too thick to fit for tightening the plug.
