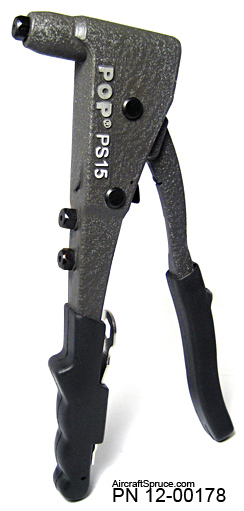

PROFESSIONAL HAND PLIER RIVET TOOL

$44.50/Each
Quantity
Add to Wishlist
Part# 12-00178
MFR Model# PS15-CS

Overview


Professional Hand Plier Rivet Tool is 50% easier to use then other hand tools. A patented compound link designed does the work for you. A shorter grip opening ergonomically designed for one hand operation. Grips cover the length of the lever and body, and soft handles are contoured to fit the hand.

The wrench and nosepieces (3/32", 1/8", 5/32", & 3/16") are stored in the handle of the tool. Excellent for use on Cherry and other standard pop rivets.

Features

  • Robust aluminum casting and vanadium steel handle design
  • Setting capacity: aluminum rivets up to 3/16" (4.8 / 5.0mm) body diameter
  • Contoured handle grips for comfort
  • Rivet retaining handle design for one-handed riveting
  • Supplied with nosepieces for 3/32", 1/8", 5/32" & 3/16" (2.4mm, 3.2mm, 4.0mm & 4.8mm) rivets
  • Supplied nosepiece wrench
  • Length: 9.65" (245mm)
  • Weight: 1.3 lbs. (0.6 kg)

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Will this gun work with stainless steel rivets? Regarding Part # 12-00178

Yes it will work with stainless rivets. It does not pull Cherrymax or CherryLok rivets properly.

Q: So, the product description states, “ Excellent for use on Cherry and other standard pop rivets,” yet there is an answer to a question on this riveter which states, “ It does not pull Cherrymax or CherryLok rivets properly.” Can you explain the discrepancy?

It can pull cherry branded "pop" rivets, BSP-41, ccc-32, etc etc. Cherrymax and Cherrylok rivets require special pullers.
