SNAP BUSHINGS

From $0.09 to $0.36
Mounting Part No. Hole Dia. Bushing I.D. Price Buy
04-05700* .250 1/8 $0.09
Quantity
04-05710* .312 3/16 $0.15
Quantity
04-05730 .375 1/4 $0.11
Quantity
04-05738 .437 1/4 $0.27
Quantity
04-05758 .500 1/4 $0.17
Quantity
04-05753 .500 3/8 $0.14
Quantity
04-05775 .625 1/4 $0.32
Quantity
04-05773 .625 1/2 $0.15
Quantity
04-05790 .750 3/8 $0.36
Quantity
04-05793 .750 9/16 $0.19
Quantity
Subtotal $0.00
Add to Wishlist

Overview

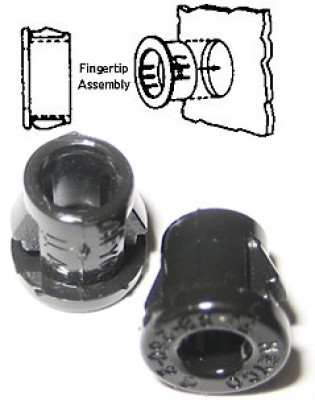

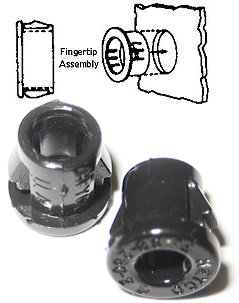

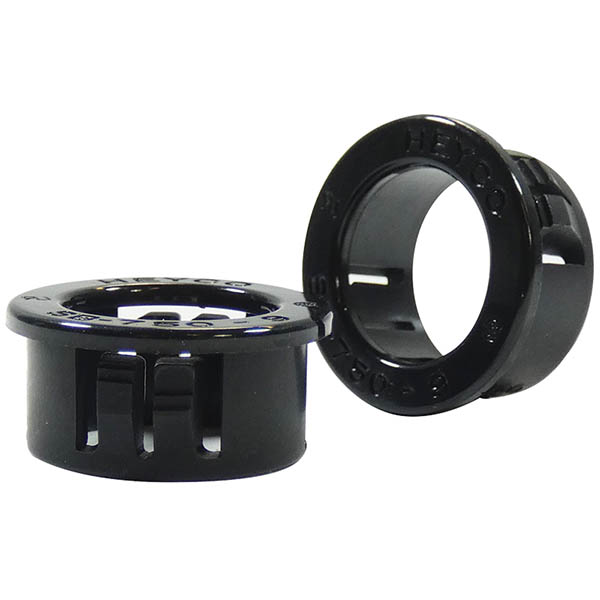

These snap bushings are ideal for abrasion and cutting protection of wiring, antenna leads, tubing, cables, etc. that are routed through bulkheads, ribs and other internal aircraft structures. Made of hard black nylon, the bushings convert raw-edged holes to smooth, neat insulated ones. Just drill a hole about 1/8" larger than bushing I.D. and insert bushing. Spring-like fingers snap out to hold it in place. Stocked in following sizes. Special sizes on request with 100 piece minimum.

*For .062" max. bulkhead thickness. All others for .125" max. bulkhead thickness. Less 15% Discount on 100 pieces per size.
