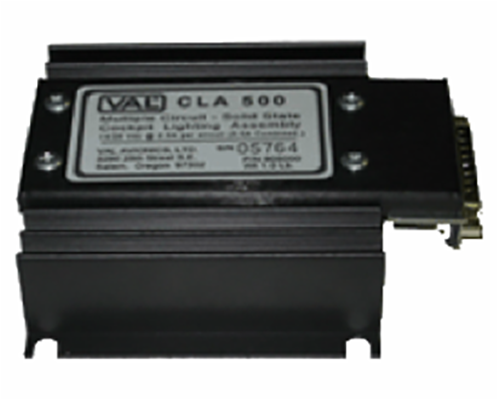

Val Avionics Cla 500 Cockpit Lighting Assembly

Select Voltage:
14 Volt28 Volt
Quantity
Add to Wishlist

Overview

The CLA 500 is a four-channel cockpit lighting control assembly. With this unit you can control four lighting regions in the aircraft separately. For instance, the CLA 500 might control lighting of the instruments, the radios, the lower sub panels and the dome lights or flood lighting. The combinations are up to the imagination, but the power of control will be yours with this compact yet versatile dimming unit.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Physical dimensions: L: 6.000" W: 4.625″ H: 1.250″
  • Weight: 1 lb
  • Mounting: Remote-mounted.
  • Power requirements: 12 or 28 VDC, 5.0A maximum
  • Output: 0 to 12 or 24 VDC, 2.5A/Channel (5.0A combined)
  • 2-year manufacturer’s warranty.
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Will this work with LED as well as incandesent lights?

Per the manufacturer: if the LED is designed for 0-12 vDC it should work fine. If it has any other voltage/Freq then it won't work.

Q: Will the CLA-500 (28VDC version) work for LED panel lights?

Per the vendor. "That is not a yes or no question. If the LEDs are designed to run on 0-12 volts then yes."
