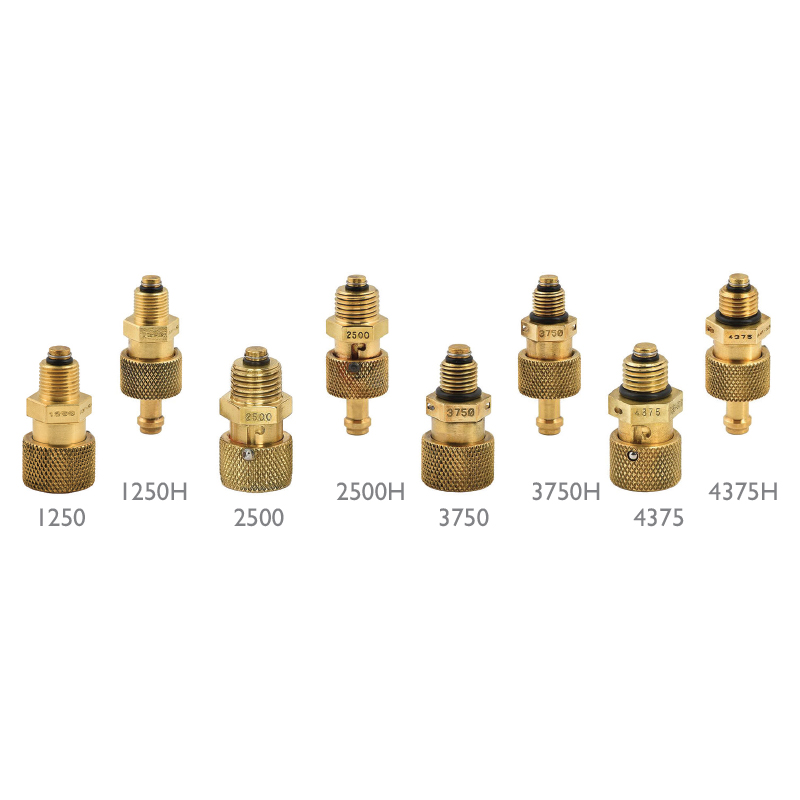

| Image | Description | Size | Part Number | Price | Buy |
|---|---|---|---|---|---|

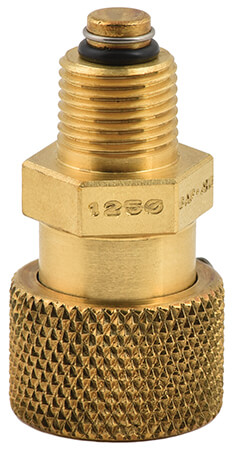

 | Saf-Air Fuel Drain Valve 1250, 1/8-27 NPT | 1/8 NPT | 05-27301 | $21.50 | |

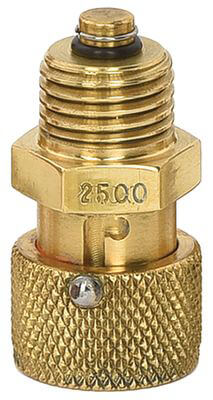

 | Saf-Air Fuel Drain Valve 2500, 1/4-18 NPT | 1/4 NPT | 05-27302 | $22.65 | |

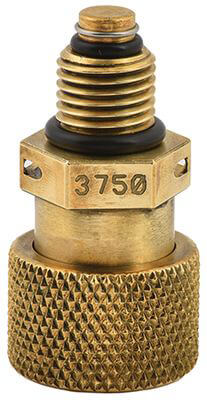

 | Saf-Air Fuel Drain Valve 3750, 3/8-24 | 3/8-24 | 05-27305 | $21.50 | |

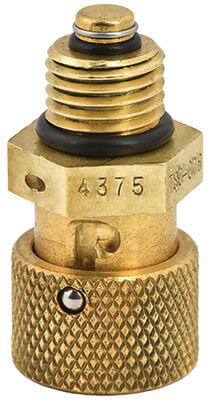

 | Saf-Air Fuel Drain Valve 4375, 7/16-20 | 7/16-20 | 05-27303 | $21.50 | |

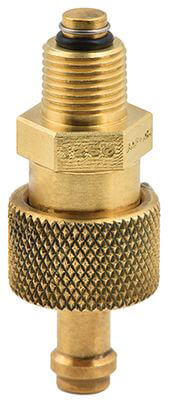

 | Saf-Air Fuel Drain Valve 1250H, 1/8-27 NPT | 1/8 NPT | 05-02688 | $27.50 | |

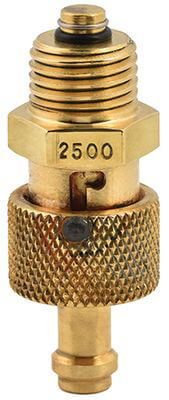

 | Saf-Air Fuel Drain Valve 2500H, 1/4-18 NPT | 1/4 NPT | 05-02689 | $26.75 | |

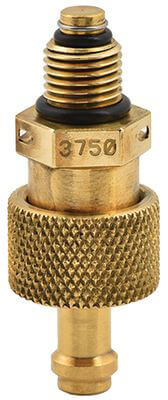

 | Saf-Air Fuel Drain Valve 3750H, 3/8-24 | 3/8-24 | 05-02690 | $27.50 | |

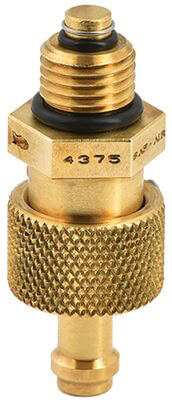

 | Saf-Air Fuel Drain Valve 4375H, 7/16-20 | 7/16-20 | 05-02691 | $26.95 |
Overview
SAF-AIR Products, Inc. has taken its very dependable fuel drain valve and added a new feature – it locks in the open position! This valve makes the operation of the pre-flight check for contamination and water in the fuel system very easy. This valve is so unique that SAF-AIR Products, Inc. received a United States patent on its design. Models 1250 & 1250H are popular choices to install on gascolators. FAA & TSO-C76 APPROVED.
|
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Features
- Eight models in two styles, with or without 1/4" hose adapter
- All valves can be rebuilt
- New feature - it locks in the open position
- Standard fuel resistant Viton® o-rings included
- Push-to-test, or push-and-turn to lock open
- Effortless operation with sure grip knob
- Double-sealed to prevent leakage
O-Ring Replacement
Specifications
- MATERIAL: 360 Brass
- FINISH: Natural
- TEMPERATURE: -60° to +260°F (-51° to +127°C)
- O-RINGS: All valves M83248/1 Size -006
- PRESSURE: 60 PSI max
Reviews
This is in my opinion the best product for experimentals serving as a main tank test point and the option to lock open and drain the tank (albeit slowly). Excellent quality also.
Verified Purchase
Saf-Air Fuel Drain Valve 1250H, 1/8-27 NPT
Great
Verified Purchase
Saf-Air Fuel Drain Valve 1250, 1/8-27 NPT
Exactly what I ordered. Thank you.
Verified Purchase
Saf-Air Fuel Drain Valve 1250, 1/8-27 NPT
exelent produck 3 week delivery
Verified Purchase
Saf-Air Fuel Drain Valve 1250H, 1/8-27 NPT
Good product, makes tank drain much less messy..
Verified Purchase
Saf-Air Fuel Drain Valve 1250H, 1/8-27 NPT
Verified Purchase
Saf-Air Fuel Drain Valve 1250H, 1/8-27 NPT
Perfect fit on my Andair GAS500 gascolator.
Verified Purchase
Saf-Air Fuel Drain Valve 1250H, 1/8-27 NPT
Install but not yet tested. I like that it locks open and has an integral barb fitting. However it’s important to have a separate shut off valve in line with this valve to prevent theft of your fuel.
Verified Purchase
Saf-Air Fuel Drain Valve 1250H, 1/8-27 NPT
Handy for a quick drain or to empty a tank.
Verified Purchase
Saf-Air Fuel Drain Valve 2500H, 1/4-18 NPT
Verified Purchase
Saf-Air Fuel Drain Valve 2500H, 1/4-18 NPT
Q&A
Please note, Aircraft Spruce ®'s personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce ® assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
No, the manufacturer recommends purchasing another valve when the seal needs to be replaced.
No, for example on the 1250 valve, the nut would be too wide so that once you put a socket over it, it would not engage. You will need to use a wrench for the install.
