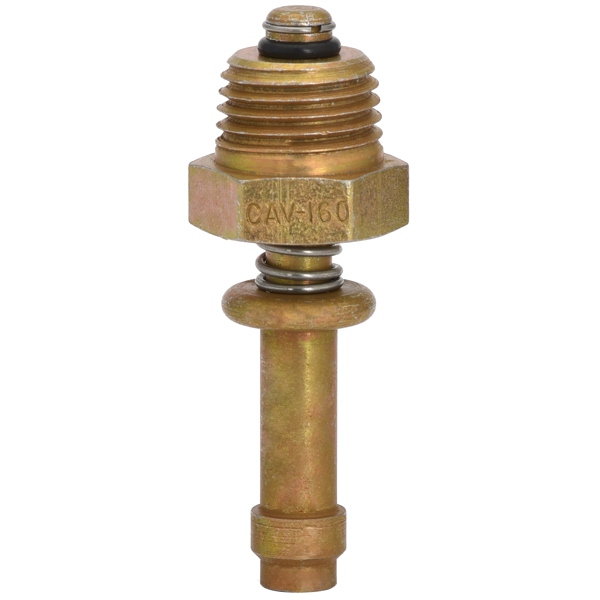

Saf-Air CAV-160H-4 Pushtype Fuel Drain Valve

$23.50/Each
Part# 05-00966
MFR Model# CAV-160H-4

Overview

SAF-AIR push type fuel drain valves are close tolerance valves of simple design. These valves provide the most trouble free operation of any other line valves in the industry. SAF-AIR valves are manufactured with an o-ring placed on the stem to seal against a flat seat on the body. This design eliminates an area where dirt can gather, thus putting an end to the main cause of fuel drain valve drip. FAA PMA APPROVED.

Comes with 1/4" hose end.

California Prop 65 Warning Symbol

WARNING: The product may contain and/or expose you to a chemical(s) or substance(s) which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. www.P65Warnings.ca.gov

Features

  • Eight models in two styles with or without 1/4" hose adapter
  • All Valves can be rebuilt
  • Standard fuel resistant o-rings
  • Simple operation - just push to sample fuel

Specifications

  • MATERIAL: 360 Brass
  • FINISH: Natural
  • TEMPERATURE: -60 to +260F (-51 to +127C)
  • O-RINGS: All valves M83248/1 Size -006 CAV-170 Size -012, CAV-180 Size -011
  • PRESSURE: 60 PSI max
  • CAV-100H-4, CAV-160H-4, CAV-170H-4, CAV-180H-4 All four models come with 1/4" hose end.
  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the thread specification for the mounting fitting of the SAF-AIR CAV-160H-4 PUSHTYPE FUEL DRAIN VALVE?

The Saf-Air CAV-160H-4 drain valve has 1/4-18 NPT male thread. This will thread in to a 1/4" pipe thread fitting.

Q: Cannot find any details on the total length of Saf-airs CAV-160H-4, your part number 05-00966, drain valve. May be a clearance issue with this valve installation is why Im asking. Thanks

Total length: 1-7/8 inch approx.
