CESSNA NOSE STRUT SEAL KIT

$17.50/Each
Quantity
Add to Wishlist
Part# 04-03468
MFR Model# TCNS-1

Overview

Cessna Nose Strut Seal Kit Fits: 150, 152, 172, 172RG, 175, 182, R182, 205, 206, 210, P210, T210, 310 - 3500 thru 310Q thru 1160, 320, 336, and 337.

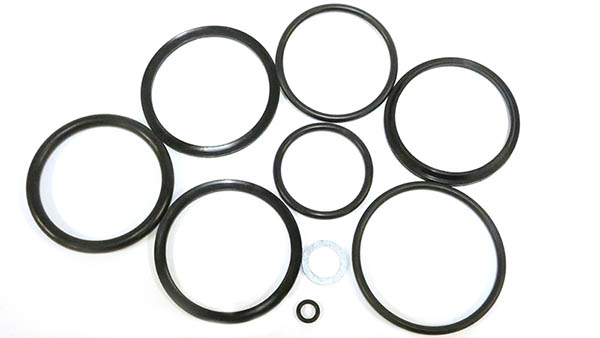

In The Box

  • 1 ea. - MS28775-010 (AN6227B5)
  • 1 ea. - MS28775-221 (AN6227B26)
  • 1 ea. - MS28775-329 (AN6227B32)
  • 1 ea. - MS28775-225 (AN6230B3)
  • 1 ea. - MS28775-228 (AN6230B6)
  • 2 ea. - T1628-329 Back Up Ring
  • 1 ea. - T2418-1 Scraper
  • 1 ea. - T0841200-19 Lock Ring
  • 1 ea. - T0841200-25 Lock Ring
  • 1 ea. - AN901-5A Alum. Gasket

Reviews

It’s a complete basic kit for my Cessna 172M. Good quality, easy to use items and they should last a long time.

Alaska S Verified Purchase

TRIMCRAFT TCNS-1 SEAL KIT, NOSE

June 13, 2021

We keep extra set on hand

Michael M Verified Purchase

TRIMCRAFT TCNS-1 SEAL KIT, NOSE

June 11, 2021

perfect fit, fast shipping

Don F
April 26, 2021

Just installed it yesterday, worked great

Frank N
October 2, 2020

Worked great on my T210. No need to buy more expensive options.

Brent A
September 30, 2020

Works as advertised

Francois T
April 2, 2020

A nicely packaged collection of all o rings, back up rings & aluminum seal, required for resealing the nose gear strut on several Cessna airplanes. All were a perfect fit!

Phil C
February 27, 2020

This kit fixed my nose strut in about an hour. Works great!

Eugene J
January 8, 2020

Absolutely perfect fit, with every single piece needed for C182 front strut rebuild

John
August 5, 2018

First time rebuilding the 172RG strut. This bag of goodies was everthing I needed to complete the job. No mistakes, every size was correct. Who every put this together did a great job. The strut rebuild is relatively easy and in my case very necessary. End product, the strut, ended up like new!!!

Glenn C
May 31, 2018

Q&A

Q: Does this Cessna Nose Strut Seal kit (TCNS-1) kit work with cessna Cardinal 177B?

The TCNS-1 is good on the 177RG, but not the fixed gear models. The kit you will need is the TC177NS-1, our part # 04-04009.

Q: Will this work for a 340A? Kit from the manual seems to be part 5842000-234

You need our part number 04-04039.
