APPAREO STRATUS EXTERNAL 5 FT ADS-B ANTENNA 153025-000026

$59.99/Each
Quantity
Add to Wishlist
Part# 11-14672
MFR Model# 153025-000026

Overview

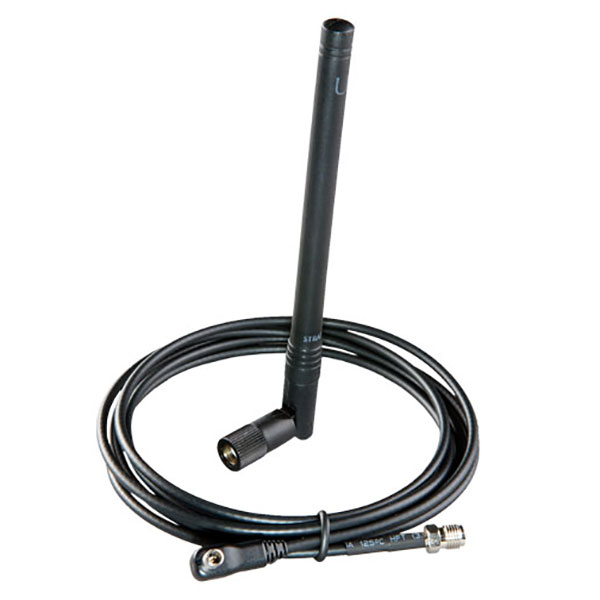

Stratus External ADS-B Antenna Kit - 5'

Includes Stratus 978MHz/1090MHz External Antenna, 5' cable and suction cups for mounting the antenna on your aircraft's windows. Works with all Stratus portables.
  • Customers Also Viewed
  • Frequently Purchased With
  • Related Items

Reviews

Our CJ4 has electrically heated windows so the Stratus will not work sitting on the glare shield. We tried sitting the Stratus on a seat back under the window at the first passenger seat. We received GPS signals ok but the ADSB in was intermittent. We added this antenna and it solved the problem. Now, we get GPS position and ADSB info to our iPads in the cockpit.

Donnie T Verified Purchase

APPAREO 5 ADS-B ANTENNA 153025-000026

July 16, 2021

The two flimsy plastic suction cups provided to support the ADS-B antenna on the a/c windshield fit neither the antenna nor the cable and do not adequately secure either one. I would have expected a more substantial $60 accessory from Stratus, especially considering the $700 price I paid for my Stratus III unit.

S. R Verified Purchase

APPAREO 5 ADS-B ANTENNA 153025-000026

July 5, 2021

Great accessory. Now able to mount Stratus remotely off glare shield and out of the sun.

Jan L Verified Purchase

APPAREO 5 ADS-B ANTENNA 153025-000026

June 5, 2021

Antenna really helps the reception for my Stratus 3...noticed an improvement in areas where I’ve lost ADS-B reception prior, but no longer happens at those points.

Blake
March 27, 2021

Good quality and works as expected. Allowed me to mount the Stratus 2S below the panel in my Bonanza.

Eric H
October 5, 2020

Works great! Lets you keep your Stratus out of the window to prevent overheating & out of the way

C L
May 5, 2019

This is a must have for those who use the Stratus. I was having trouble with my Stratus picking up ground stations due to a windshield with electric heat causing interference. I went from one ground station to eight stations being received. I normally would pick it up around 3,000 AGL where I live, now it’s not even 1,000 ft AGL and I’m picking up ADS-B ground stations. This antenna makes the Stratus much more reliable and gives you the flexibility of moving the stratus away from the sun to prevent overheating. I would highly recommend!

Adam
September 15, 2018

This antenna was exactly what I need to mount my Stratus 2S under the pilot seat. I was tired of the suction mount system and had it fall off the window a couple times in cold weather. Quite alarming when the AHRS tumbles in IMC. I purchased the gps antenna and the dual band ADSB antenna. Ran the wires along with the charging cable behind trim panels and carpet. Now the system is unnoticeable, no suction cups and far better reception than before. Plus the 2S is more secure due to using a bolt on RAM motorcycle mount to the seat frame of my Comanche 250.

Grant
February 24, 2017

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What type of connector is on the end of the antenna? Can this antenna work with other ADS-B receivers, or only Stratus?

This has an SMA antenna. We do not have data to support that it will work with other ads-b receivers.

Q: What antenna cable is used for this if you need a longer cable?

Part # 11-14672 comes as a kit from the manufacturer. You can also order part # 11-16567 it comes with a 10ft cable.

Q: Is one antenna all you need or can you benefit by having two antennas ,(one for 1090 and another for 978)?

This antenna has the capability for both frequencies, You only need one.

Q: Does this antenna also provide GPS signal or do I need to buy both this antenna and a gps antenna?

You will also need the GPS antenna.
