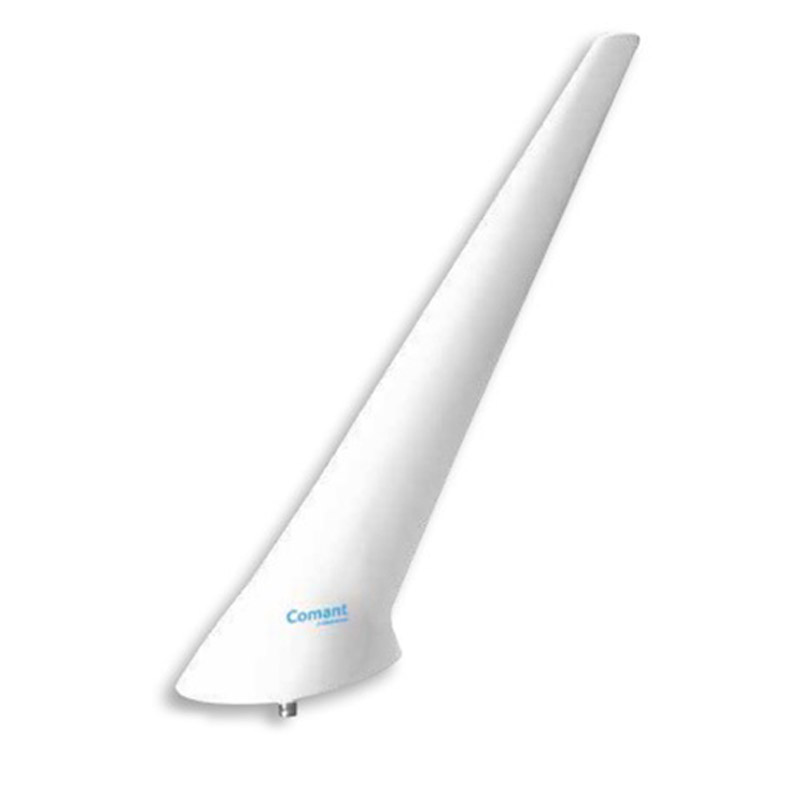

Comant CI-119 CHF Antenna

$840.00/Each
Quantity
Add to Wishlist
Part# 11-19390
MFR Model# CI-119

Overview

Comant’s four internal hole mount blade style VHF communication antenna with offset BNC port. Equivalent to the CI 138, CI 139 and CI 196 expect for variations to BNC location and hold pattern. Suitable for either top or bottom mounting with both light and heavy fixed wing single / multiengine and helicopter aircraft.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Electrical
  • Frequency: 118-137
  • VSWR: 2.9:1 Max
  • Polarization: Vertical
  • Radiation Pattern: Omnidirectional
  • Impedance RF: 50 Ohms
  • Power RF: 25 Watts

  • Mechanical
  • Weight: 1.25 lb
  • Height: 13 in
  • Material Valox: 420
  • Finish: Glossy White
  • Connector: Offset BNC (female)

  • Environmental
  • Temperature: -55 to +85 Celsius
  • Altitude: 35,000 ft.

  • Federal Specifications
  • FAA TSO: C37d, C38d
  • RTCA Environmental: DO-160D
  • Gasket: C12704 Cork Neoprene

Documents

  • Light Fixed Wing Single Engine
  • Light Fixed Wing Multi-Engine
  • Heavy Fixed Wing Single Engine
  • Heavy Fixed Wing Multi-Engine
  • Helicopter
  • Always consult your installation shop
  • for best application
