Garmin GPS 18X LVC - OEM

Overview

	WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

• 12-parallel-channel receiver with WAAS-enabled GPS technology for improved accuracy and faster acquisition times
• Position accuracy of 3 meters (typical), meeting or exceeding performance requirements for fleet tracking and navigation applications

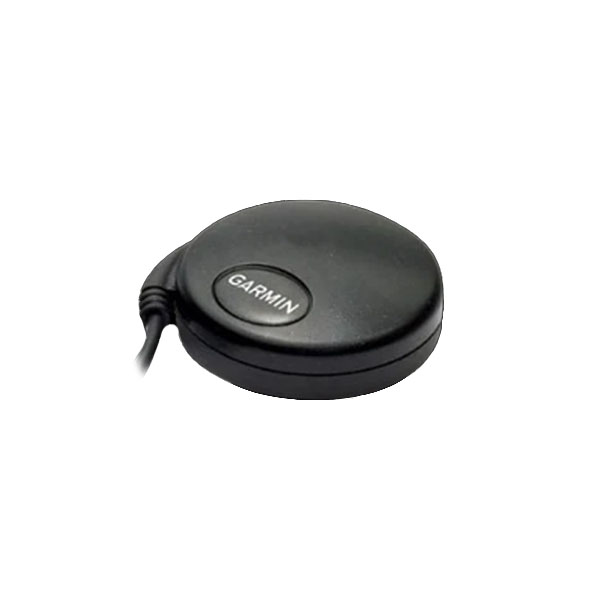

• Compact cylindrical design measuring 2.4 inches (6.1 cm) in diameter for installation in confined spaces and tight enclosures

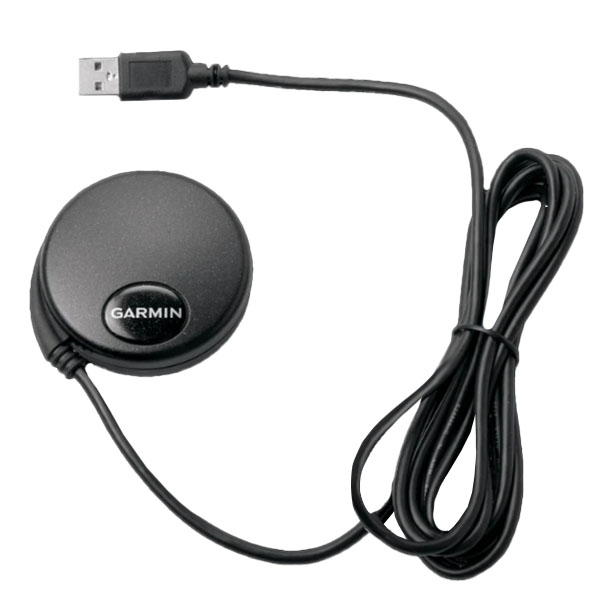

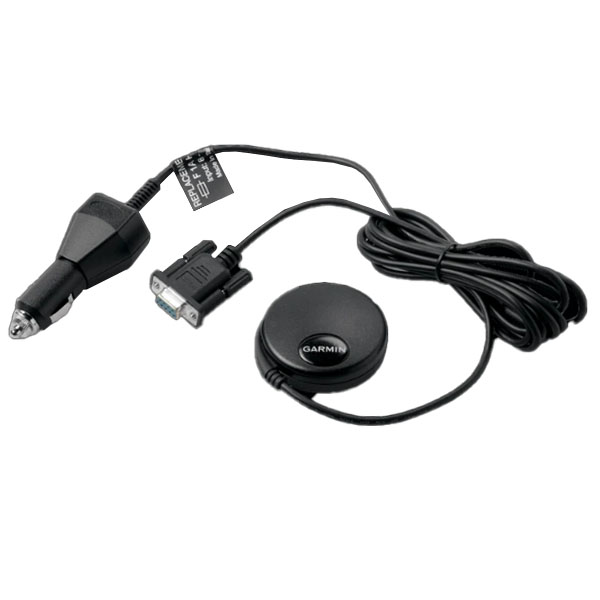

• Multiple connection interfaces including DB-9 pin serial, USB A-style connector, and bare wire options for flexible system integration
• Pulse-Per-Second (PPS) output synchronized within 1 microsecond of UTC time for timing-critical applications requiring high precision
• Non-volatile memory preserves receiver configuration settings and includes integrated real-time clock functionality

Usage Instructions

• Connect the GPS 18x LVC using your selected interface—DB-9 serial, USB, or bare wire leads—and mount the integrated magnetic base securely on a metal surface oriented toward the sky. Position the receiver to maximize satellite visibility, avoiding obstructions directly overhead. Configure your connected device to accept either NMEA 0183 standard output format or Garmin proprietary protocol as required by your application. After initial power-up, allow 2-3 minutes for cold start acquisition on first use.

Data Insights

• Independent testing shows the Garmin GPS 18x LVC delivers position accuracy approximately 50% better than standard GPS receivers in urban environments with obstructed sky views. The 12-channel parallel architecture provides rapid time-to-first-fix performance while the WAAS correction layer reduces positional error significantly compared to unaided GPS-only solutions. The 1-microsecond PPS output accuracy makes this receiver suitable for network timing and frequency synchronization applications where nanosecond-level precision matters.

Design and Material

• The GPS 18x LVC combines compact engineering with rugged construction. Its cylindrical profile minimizes footprint while the integrated magnetic base enables instant repositioning on any ferrous surface without drilling or brackets. The weather-resistant black housing withstands temperature fluctuations and exposure to salt spray, making it suitable for marine and outdoor fleet applications where corrosion presents a real challenge.
• Weather-resistant molded plastic casing rated for marine and industrial environments
• Integrated magnetic base with standard 1/4"-20 threaded mount point for alternative installations
• 5-meter attached cable with your selected connector termination (DB-9, USB A, or bare wire)
• Matte black finish reduces glare and resists fingerprints during handling and installation
• Lightweight construction under 4 ounces reduces weight penalty in vehicle and portable applications
• Modular design allows straightforward replacement or upgrade without system redesign

The Final Verdict

• The Garmin GPS 18x LVC is the practical choice for equipment builders and integrators who need reliable sub-3-meter positioning in small packages. The combination of proven WAAS-corrected accuracy, multiple connectivity options, and robust weather-resistant construction eliminates the need to compromise between performance and space constraints.
