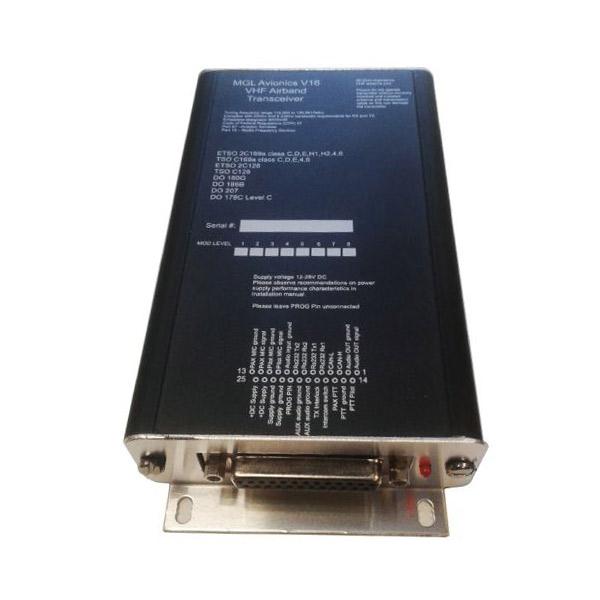

MGL V16 VHF Aviation Radio Transceiver

$820.00/Each
Quantity
Add to Wishlist
Part# 11-16597

Overview

Note: The V16 VHF Aviation Radio Transceiver replaces the MGL V6.

The V16 Com Radio is the latest generation and a new family of RF products by MGL Avionics. Launched in 2018 in the US, the V16 is the first in a new ecosystem of Com Radios, Nav Radios and controllers.

Note: This radio is non-TSO’d and is for use in Experimental and light-sport aircraft and aircraft not having a Type Certificate prohibiting the use of non-TSO’d radios and equipment.

Features

Modular Design:
  • The V16 is a split design remote-mount Com Radio that is controlled via a separate controller/EFIS.

  • Pick Your Controls:
  • The V16 Com Radio can be controlled by a mix (and any number) of Razor (P/N: 11-16598) or Vega (P/N: 11-16599) Control Heads. This means you can have dual left seat and right seat radio displays and controls, or front and back (for tandem seat aircraft). It can also be controlled directly by an MGL Avionics iEFIS (Gen 3 and above), with or without Razor/Vega Controls (sold separately, see accessories).

  • Big Power:
  • The V16 Com Radio boasts 10 Watts of Transmit Power (un-modulated carrier).

  • Low Cost:
  • Designed with modern components and ingenuity for the lowest cost.

  • SL30/SL40:
  • When the V16 is paired with a Razor/Vega control, the control can be connected to any EFIS or display that communicates with SL30/SL40 protocols, to tune the radio and load frequency lists.

  • 2 Channel VOX Intercom:
  • The V16 includes a 2-place intercom with a wide-range VOX system. Multiple headsets can be connected to the Passenger channel if necessary. The advanced voice-activated intercom provides clear audio in noisy cockpits. In extreme cases the intercom can be activated via a switch connected to V16 (intercom PTT).

  • RX Playback “Say Again”:
  • The V16 can replay up to a minute of the last several transmissions. Miss a clearance from ATC? No problem - simply hit the Playback button on your Razor Control head or use a switch connected to discrete input in V16 Com to replay the last transmission. Hit the button again to play the previous transmission.

  • Designed for OEM Use:
  • A full Interface Control Document (ICD) is published to allow for third party use of the V16 Com radio. Ideal for drone / UAV applications or for integrating with full glass panel systems where a remote VHF Com is required.
  • Specifications

    • Channel Spacing: 25KHz or 8.33KHz
    • Input Voltage: 12/14V and 24/28V (10-28 Volts)
    • Current Draw at 13.8V Supply: RX: 0.3A and TX: 2.5A (10 Watts)
    • Weight: 10.6 oz (300 grams)

    Benefits

    • Auxiliary Audio/Music input with auto-mute
    • TX Interlock for dual radio installations
    • Built-in SWR Meter to check antenna matching. Good antenna match will result in VSWR of 1.3 or less (ideal would be 1.0, which would mean no reflected power.
    • Remote flip-flop
    • Scan (monitor standby frequency).

    Harness

    Note: Harnesses are intended for use with experimental aircraft only.
    • Part No. 11-16600 Standard Harness for MGL V16 Transceiver
    • Accessories
    • Frequently Purchased With
    • Customers Also Viewed
    • Related Items

    Reviews

    Bought this radio along with a Vega control head for my Kr2. I used an old STS handheld for over 20 years with no problems but wanted to upgrade to a panel mount that would fit in my limited panel space. The only problem I had with the MGL was sometime when I was messing around in the menus I activated TX VOX, witch resulted in a Garbled and Unreadable for the control tower. Turning that feature Off resulted in a loud and clear from the tower. Very happy with this system.

    Roger B Verified Purchase

    MGL V16 REMOTE VHF TRANSCEIVER

    August 30, 2022

    Compact

    Art O Verified Purchase

    MGL V16 REMOTE VHF TRANSCEIVER

    August 9, 2022

    good clear transmision, plug and play instalation with the wireharnes

    Ragnar E Verified Purchase

    MGL V16 REMOTE VHF TRANSCEIVER

    April 12, 2022

    Nice compact / very light weight unit .

    Robert M Verified Purchase

    MGL V16 REMOTE VHF TRANSCEIVER

    February 3, 2022

    Very pleased with this set up. My RV-3 has limited space so I was able to mount this away from the controller in the panel. The xceiver is loud and clear at the low power setting. I use the 5 watt xmission power setting.

    Glenn S Verified Purchase

    MGL V16 REMOTE VHF TRANSCEIVER

    July 29, 2021

    Got this and the MGL Razor touch-screen control head to replace a nearly-new MGL V6 that just wont work in my plane. First impression is that this is a much better radio. Went with the touch-screen instead of the smaller Vega digital head mostly for ergonomics - easier to get the right thing set up while bouncing around. This radio is much simpler to set up and quite a lot clearer than the V6. Also has the option to transmit at 10 watts instead of the 6W on the V6. Heads-up: V6 is no longer manufactured by MGL. Playback feature is a great bonus. Dont forget to order: adapter for the SMA connector to convert it to a BNC (p/n: 11-16957). For the same overall price, this is a much better deal than the V6.

    Phill
    February 17, 2021

    Replacing my older VHF radio because it didnt receive well, the MGL unit does not have this issue. Receives and transmits great. Had to work on some of my audio wiring because it transmits almost too well and I was getting some RF feedback. The manual talks about some fixes and after I fixed the shields on some of my audio wiring all is good.

    Eric V
    July 29, 2020

    I am extremely impressed with this radio. I am using the internal intercom and it is crisp and clear. It is lightweight and I had no issues building my own harness. I paired it with the Vega controller to replace an intercom and an ICOM a200and still shed some weight. I had one technical question and they responded quickly.

    Michael W
    December 20, 2019

    I installed the MGL V16 with a Vega control head in my RV-4. So far I am highly satisfied. My criteria for replacing the failed radio in my airplane were (1) 10-watt transmit, and (2) ability to monitor the standby frequency (as I have room for only one radio in the small RV-4 panel). The V16 meets these criteria (MGL calls the monitor function scanning.) The radio is very small and light. I removed 3.5 lbs of old radio and wiring, and the V16 and Vega with wiring came to just over 1 lb. Installation was mostly straightforward, although I thought the manual was not clear that the included 120-ohm resistor is necessary for the CAN bus to operate. Performance of the radio has been highly satisfactory. With the Vega control head the comm radio frequencies can be entered from my GRT Sport EX EFIS via RS232, or from my cell phone by its Bluetooth connection to the GRT Sport EX. Channel lists can be cycled and flip-flopped from remote buttons which I have mounted on my throttle, while a third button mounted on my stick is programmed to activate the say again feature on the V16 to replay any of the last several received transmissions. All functions work as expected. During testing I listened to ATIS and had conversations with aircraft in the pattern 99 miles away. All were loud and clear. The Vega control head can show average transmit power and VSWR (a measure of antenna matching.) On 122.8 I was showing 12 watts and VSWR of 1.1 both very satisfactory. The MGL manual specifies RG-58 antenna cable, but I was able to use the supplied crimp-type coax connector with my existing RG-400 antenna cable with no problem. The display on the Vega control head is bright and readable in daylight conditions and dims automatically or manually for low-light conditions (not yet tested.) I am very pleased with the MGL V16 and Vega control.

    Tom S
    October 23, 2019

    Q&A

    Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

    Q: Will this MGL V6 radio serve as Com and Nav as well?

    This is a com radio only.

    Q: What type of connection is required on the antenna cable to mate with the V16?

    This connector is an SMA connector. We carry an adapter that will convert it to a BNC (p/n: 11-16957).

    Q: If I purchase the MGL V16 transceiver plus the control head, is the wiring harness included?

    No, The wiring harness is not included. MGL standard harness part # 11-16600 is for experimental aircraft use only.

    Q: When multiple control heads are used do they all display the same frequency? Or can the copilot have a different frequency in use on his display?

    The control heads would be connected in parallel meaning they will be displaying the same frequencies.

    Q: Can this MGL V16 radio be used with four headsets and a loudspeaker?

    The VHF radio only allows for Pilot and Co-Pilot. For additional headset jacks you will need an audio panel or intercom.

    Q: Can MGL V16 be used with David Clark headsets?

    Yes, as long as the plug style on the headsets matches the jacks connected to the radio these will work fine together.

    Q: will the RAMI AV-534 / AV-534L VHF COM ANTENNA FAA TSO be a suitable match for this transceiver?

    Yes this Rami antenna is compatible with P/N 11-16597.

    Q: 11-16600 Standard Harness for MGL V16 Transceiver, does this include the jacks for the headsets?

    Yes, this will include the jacks.
