DACRON BIAS TAPE

From $28.00 to $60.25
Description Part Number Price Buy
PINKED DACRON BIAS TAPE 2"
09-16300
$28.00
Quantity
PINKED DACRON BIAS TAPE 3"
09-16400
$60.25
Quantity
Subtotal $0.00
Add to Wishlist

Overview

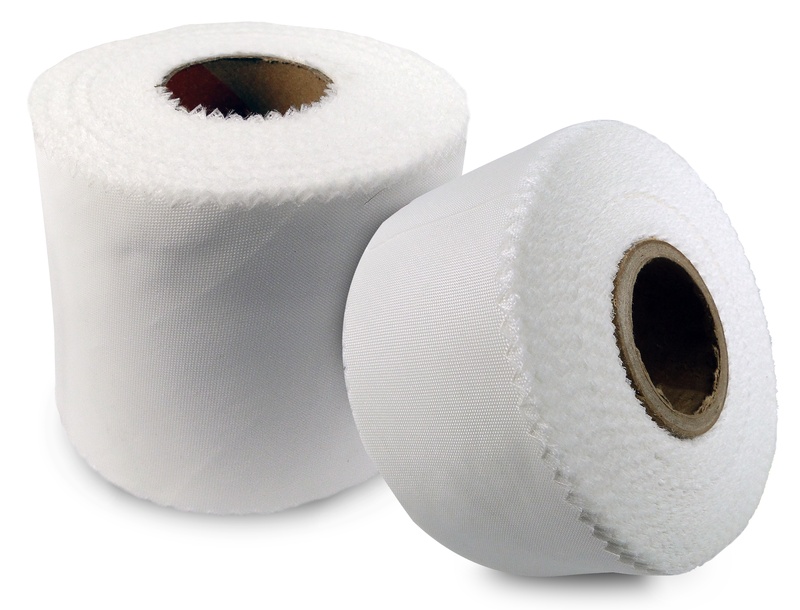

DACRON BIAS TAPE
For Homebuilt Aircraft

NOT FOR USE ON CERTIFIED AIRCRAFT

Bias-cut tapes (weave 45 to edge) are especially useful for trimming compound curves on components such as wing tips and tail surfaces. Bias tape will stretch to conform to the contour without wrinkles, without heat-shrinking edges or cutting and notching to remove excess fabric. Stretching reduces the width about 35% so 3" tape should be used to finish areas normally covered with 2" tape. 2" Bias tape will pull to about 1-3/8" width. Sold in 50 yard rolls.

Reviews

Edges a little more frayed than the 2 inch and 4 inch bias cut tape we have. but is was usable.

Gene A
November 7, 2019

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Regarding Dacron bias tape: Is this the same Dacron as is used in the peel ply? I want a bias cut peel ply.

Yes, it is the same material as the other dacron/peel ply rolls. It is just cut in a 45* bias. There is a sewn seam every 70 inches or so.
