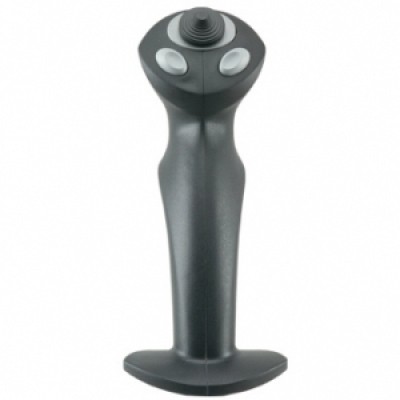

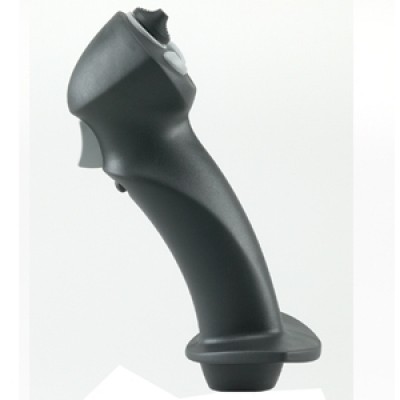

Cs-8 Aircraft Grip

0 Reviews 8 Answered Questions
$174.75/Each
Quantity
Add to Wishlist
Part# 11-10511
MFR Model# CS-8

Overview

Wired with 22 gauge wiring. 7/16 stainless steel shaft with custom machine bushings to fit any diameter shaft. Comfortable grip. Made with lightweight glass-filled Wellman nylon. Rotates easily to any position. Two top pushbuttons. Four-way hat. Made in the USA.

For use in Experimental Aircraft Only.


California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • Eight function control stick
  • Four-way hat switch
  • Two face buttons

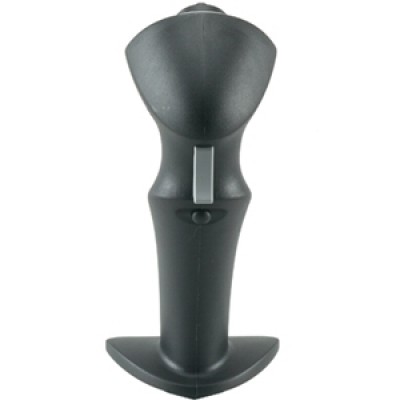

  • Trigger button and index button
  • Ambidextrous design

Documents

  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Submit a Review

Q&A

Submit

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Will the CS-8 grip wire directly to the Ray Allen servos, or will a relay deck be required?

Per the Manufacturer, the CS-8 grip is wired to a relay deck.

Q: What is the weight for the CS-8 aircraft grip?

Per supplier: It weighs less than a lb. Approx. 0.50 lbs.

Q: What is the difference between the three different aircraft grip models (part numbers)?

PN: 11-10508 is a two function control stick. PN: 11-10509 is a four function control stick. PN: 11-10510 is an eight function control stick.

Q: Are there any provisions for labeling the functions for the buttons? There doesnt appear to be adequate space on the top for labels.

There are no provisions for labeling the buttons.

Q: What is the max ID on this grip the CS-8?

These can be built it to accept up to a 1.125" bushing.

Q: Could you please provide an Installation manual for the CS-8?

We have added the wiring diagram to the Documents section of this web page. Please review them there.

Q: Can I order this grip with SOFT TOUCH .? The manufacturer offer this upgrade in his web Page . If so , how can I order It from you ?

Yes, the Soft Touch option is available. When you add the grip to the shopping cart, the system will offer the addon option and if you check the box it will be added to the cart along with the grip.

Q: What does the soft touch option mean?

Per the manufacturer, Soft touch coating is similar to the coating found on cell phones and high end luxury knobs. This coating gives the grip a soft velvety feel
