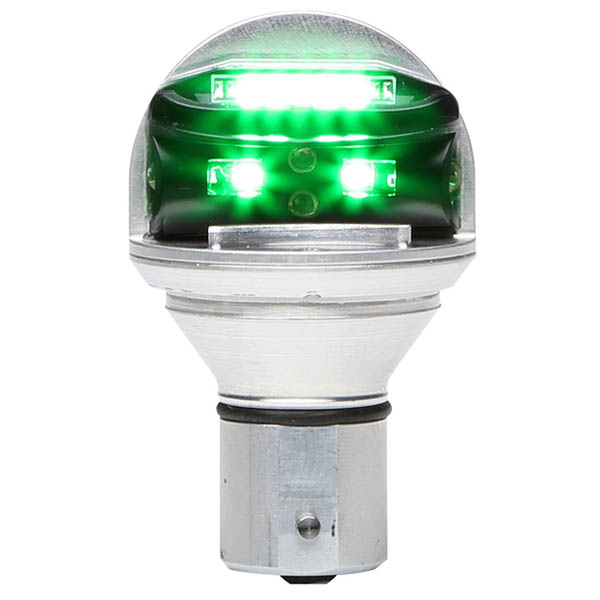

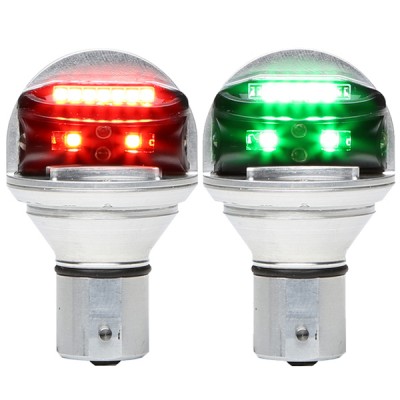

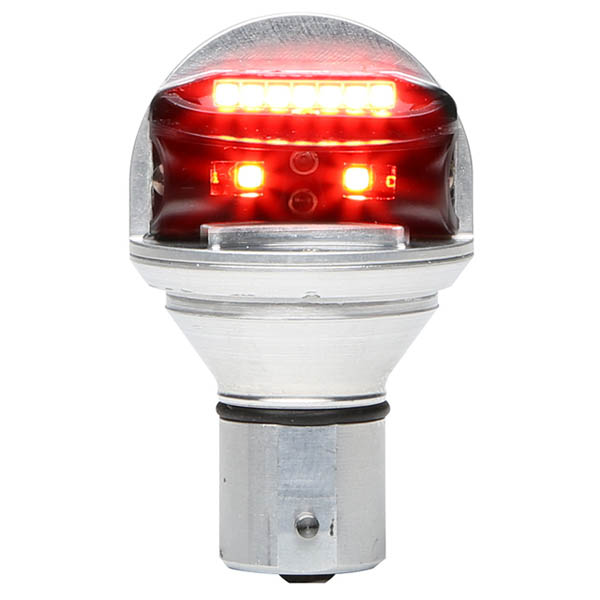

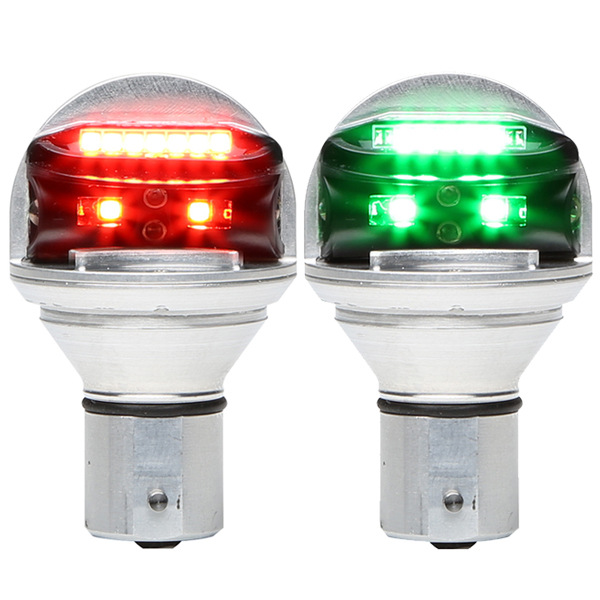

WHELEN CHROMA™ POSITION LED LAMPS FAA-TSO

Select Color:
Red Green
Select Voltage:
14 Volt28 Volt
Quantity
Add to Wishlist

Overview

LED technology is optimal for aviation applications. Whelen LED lights are time and field tested for reliability and long-life performance under the harsh conditions faced by Fire, DOT, and Law Enforcement professionals around the world.

Whelen Aviation Products exceed industry standards. Whether installed on a Boeing 737, a Gulfstream 650, a high altitude reconnaissance aircraft, or on helicopters operating in the North Sea, Whelen products are trusted to perform in every imaginable environment.

Features

  • Direct replacements for W129028 / 129028 / A7512-24 / W628 / 628 incandescent bulbs
  • Unique reflector design allows for full FAR coverage compliance
  • Robust machined base provides vibration resistance tested in accordance with RTCA/DO160 CAT U2, Curves F, F1 for rotorcraft
  • All electronic logic conformal coated for weather resistance
  • Nickel Plated hard contact eliminates premature wear
  • Keeps original lens configuration to maintain FAA approvals of light assembly
  • LED bulbs have a 10,000 hour operating life, while incandescent bulbs have a fragile filament and a 300 hour average life
  • 85% reduced current draw
  • Five year warranty
  • FAA TSO-C30c Type I and II Approved
  • Meets all FAR requirements for Chromaticity, Intensity, and Coverage FAR Part 23.1383 thru 23.1397, FAR Part 27.1383 thru 27.1397
  • RED & GREEN color specific. Dominant wavelengths allow for meeting FAR requirements through a wide variety of aviation Red &
  • aviation Green lenses
  • Fixed current source design provides consistent light output compared to filament lamps and LED resistor type designs, resulting in complete FAR compliance

Documents

  • Customers Also Viewed
  • Frequently Purchased With

Reviews

PA-28-140. Replaced the original bulb with this and it looks great! No STC or 337 needed. It took all of a minute to place (my A/P didnt charge me for it!) Still would get a log entry though.

Derek P Verified Purchase

WHELEN CHROMA POSITION LED LAMP, 14V, RED

May 26, 2021

PA-28-140. Replaced the original bulb with this and it looks great! No STC or 337 needed. It took all of a minute to place (my A/P didnt charge me for it!) Still would get a log entry though.

Derek P Verified Purchase

WHELEN CHROMA POSITION LED LAMP, 14V, GREEN

May 26, 2021

changing our fleet over gradually. the best alternative out there.

Darryl F
March 17, 2021

Purchased both the red and green Led position lamps and found them to be of very good quality. The machine work is first class, the fit as replacements for A7512 bulbs is perfect, light intensity is excellent, and current draw is minimal.

Phillip C
January 25, 2021

Simple drop in replacement on 14V system. I installed with clear lenses and they are very bright! Hope they last as long as one would think for LED’s! Time will tell

Sherman C
January 14, 2021

Brighter than expected and installation was as simple as swapping bulbs.

Kevin P
June 8, 2020

Love them. Effortless installation, zero radio noise/interference. I am much more confident in my ability to be seen. Whelen is the best!

Amy C
March 26, 2020

Excellent plug and play product on our 66 PA-32. I wish every install were this easy. Only downside is the price - seems a bit much for what it is.

Jeff
February 28, 2020

Nice, bright, low amperage light. I needed to obtain a clear cover to ensure its full brightness was available. The S35 Bonanza has colored lenses that limited the output.

Raymond C
February 27, 2020

These lights are fantastic! They are machined from aluminum and they are the brightest NAV lights I have ever seen. I tried some of the cheaper LED NAV lights from Spruce in both of my airplanes and they put out so much RF noise that they break the squelch on the radios. These Whelen Chroma bulbs didnt do that at all. Nice job Whelen!

Advanced M
December 19, 2019

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the current draw for 14 volt Whelen Chroma Position LED lamps?

For 14 volt lamps, they draw 0.30 amps at 14 VDC.

Q: Regarding Whelen Chroma LED Lamps: Do I need to use a clear lens, or the colored lens that are already used with the incandescent bulbs?

You can use the existing colored lenses.

Q: I have a 1989 Piper Warrior and I was wondering if these are just the LED Bulbs? Will they replace the bulbs that are currently installed without replacing the whole position wingtip light?

Yes, these are the bulbs only and are designed to be a "bulb only" replacement for the currently installed lights.

Q: I understand you can use the colored bulbs with the colored lens, but is it better to have a clear lens or is it better to use a colored lens? I have heard that green bulb/green lens may be a better combo.

Per Whelen they are designed to be used with the colored lens. You use the colored lens so that the TSO'd light assy is not modified in any way other than changing the bulb.

Q: How many lumens for the Whelen Chroma Position LED Lamps?

Whelen does not measure their output in lumens. They are 40 candella and are the same output as the w1290 bulbs they replace.

Q: Is the PART # 11-15019 a direct replacement for the A7512-12 bulb? The specs list the A7512-24 but don't specifically mention the A7512-12.

It will, you just need to select the color you need and the 14volt option.

Q: I have briefly looked around and did not see any reference to the post on the base of the Whelen Chroma bulbs. Are they directly opposing or are they offset?

These are off set.

Q: I have read that some LEDs produce RF interference, do these Whelen Chroma bulbs have any problems with radios?

Per Whelen: NO EMI / RFI interference, as Chroma bulbs are built using fixed current sources.

Q: Is there an LED replacement for W-1512?

We have a 5 watt version (11-11374) and a 4 watt version(11-11369.) They are for experimental use only.

Q: May I use the Whelen Chroma led position lights (Part# 11-15017/9) in my PA-38 Tomahawk to replace the normal ones? Piper p/n: 751 381 BULB - Navigation lights (1512).

Yes, that is a direct replacement.
