- Photo may represent series and not specific product
- SHARE

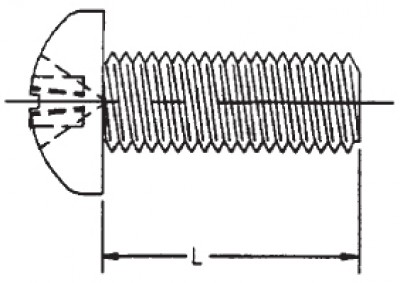

| Thread | Length | NAS No. | Part No. | Price | Buy |
|---|---|---|---|---|---|
| 4-40 | .188 | NAS600-3P | 04-00603 | $0.22 | |
| 4-40 | .250 | NAS600-4P | 04-00604 | $0.08 | |
| 4-40 | .312 | NAS600-5P | 04-00605 | $0.09 | |
| 4-40 | .375 | NAS600-6P | 04-00606 | $0.09 | |
| 4-40 | .438 | NAS600-7P | 04-00607 | $0.11 | |
| 4-40 | .500 | NAS600-8P | 04-00608 | $0.07 | |
| 6-32 | .188 | NAS601-3P | 04-00609 | $0.12 | |
| 6-32 | .250 | NAS601-4P | 04-00610 | $0.08 | |
| 6-32 | .312 | NAS601-5P | 04-00611 | $0.13 | |
| 6-32 | .375 | NAS601-6P | 04-00612 | $0.09 | |
| 6-32 | .438 | NAS601-7P | 04-00613 | $0.10 | |
| 6-32 | .500 | NAS601-8P | 04-00614 | $0.12 | |
| 6-32 | .562 | NAS601-9P | 04-00615 | $0.27 | |
| 6-32 | .625 | NAS601-10P | 04-00616 | $0.14 | |
| 6-32 | .750 | NAS601-12P | 04-00617 | $0.14 | |
| 8-32 | .188 | NAS602-3P | 04-00618 | $0.15 | |
| 8-32 | .250 | NAS602-4P | 04-00620 | $0.11 | |
| 8-32 | .312 | NAS602-5P | 04-00621 | $0.13 | |
| 8-32 | .375 | NAS602-6P | 04-00622 | $0.14 | |
| 8-32 | .438 | NAS602-7P | 04-00623 | $0.14 | |
| 8-32 | .500 | NAS602-8P | 04-00624 | $0.16 | |
| 8-32 | .562 | NAS602-9P | 04-00625 | $0.14 | |
| 8-32 | .625 | NAS602-10P | 04-00626 | $0.14 | |
| 8-32 | .688 | NAS602-11P | 04-00627 | $0.13 | |
| 8-32 | .750 | NAS602-12P | 04-00628 | $0.18 | |
| 8-32 | .813 | NAS602-13P | 04-00629 | $0.14 | |
| 8-32 | .875 | NAS602-14P | 04-00630 | $0.32 | |
| 8-32 | 1.00 | NAS602-16P | 04-00631 | $0.15 | |
| 10-32 | .250 | NAS603-4P | 04-00632 | $0.17 | |
| 10-32 | .312 | NAS603-5P | 04-00633 | $0.14 | |
| 10-32 | .375 | NAS603-6P | 04-00634 | $0.14 | |
| 10-32 | .438 | NAS603-7P | 04-00635 | $0.18 | |
| 10-32 | .500 | NAS603-8P | 04-00636 | $0.20 | |
| 10-32 | .562 | NAS603-9P | 04-00637 | $0.21 | |
| 10-32 | .625 | NAS603-10P | 04-00638 | $0.21 | |
| 10-32 | .688 | NAS603-11P | 04-00639 | $0.19 | |
| 10-32 | .750 | NAS603-12P | 04-00640 | $0.23 | |
| 10-32 | .813 | NAS603-13P | 04-00641 | $0.17 | |
| 10-32 | .875 | NAS603-14P | 04-00642 | $0.28 | |
| 10-32 | .938 | NAS603-15P | 04-00643 | $0.16 | |
| 10-32 | 1.00 | NAS603-16P | 04-00644 | $0.25 | |
| 10-32 | 1.125 | NAS603-18P | 04-00645 | $0.23 | |
| 10-32 | 1.25 | NAS603-20P | 04-00646 | $0.39 |
- JUMP TO
- Overview
- Reviews
- Q&A
- View in Catalog
Overview
|

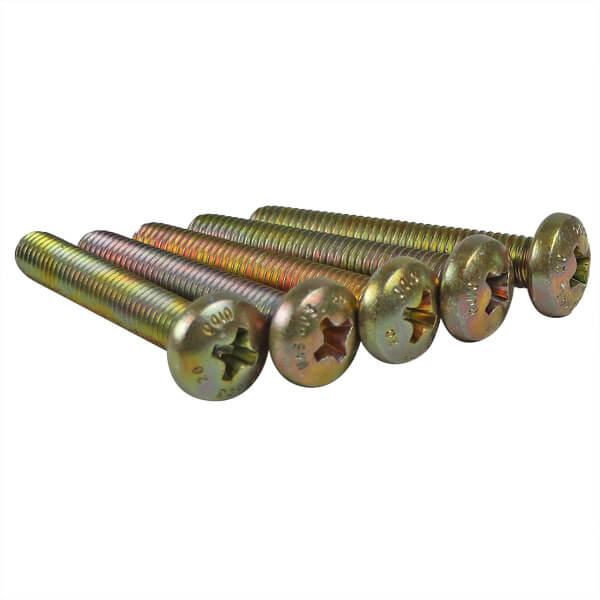

• Phillips Pan Head • Alloy Steel (8740) • Finish - Cadmium per QQ-P-416 • Tensile - 160,000 - 180,000 PSI |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Reviews
When it comes to screwing, size does matter. These are the right size ... for some things.
Verified Purchase
NAS603-4P SCREWS FULL THREAD
When you need to screw with your airplane, these are ideal.
Verified Purchase
NAS603-9P SCREW- FULL THREAD
Shipped Quick
Verified Purchase
NAS603-7P
Shipped Quick
Verified Purchase
NAS603-9P SCREW- FULL THREAD
Shipped Quick
Verified Purchase
NAS603-12P SCREW-FULL THREAD
Oh man, if you need some screws, these are the screws. Best screws ever!
Verified Purchase
NAS603-11P SCREW-FULL THREAD
Verified Purchase
NAS603-8P SCREW-FULL THREAD
I bought some of these to hold the trim tab to the stab spar on my Volksplane. They have the satisfying feeling of strength like they are unlikely to strip out the phillips head with the slip of the screwdriver.
Screws are screws, so this is not so much a review about the product, but about Aircraft Spruce. I use many pieces of small hardware to restore former military vehicles--Aircraft Spruce is the place I go to get the hard-to-get hardware that matches the original equipment. Service has always been excellent, and you have never failed to have the small parts I need!!
Q&A
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
