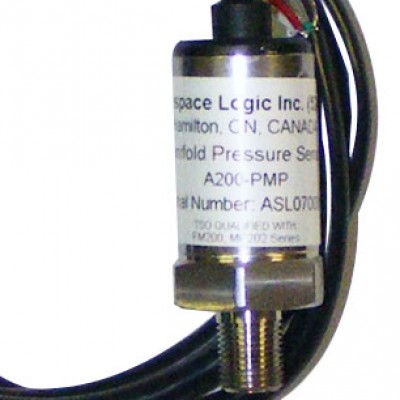

Manifold Pressure Sensor A200-Pmp

$345.00/Each
Quantity
Add to Wishlist
Part# 10-04803
MFR Model# A200-PMP

Overview

The A200-PMP is a bulk micro-machined, absolute type pressure sensor for use in both harsh and benign media with superior accuracy over an operating temperature of -40°C to 105°C. It has superb accuracy of +/- 0.5% full scale.

It contains a custom ASIC which provides signal conditioning for calibration and temperature compensation at the point of measurement. Each sensor is traceable to NIST calibration standards.

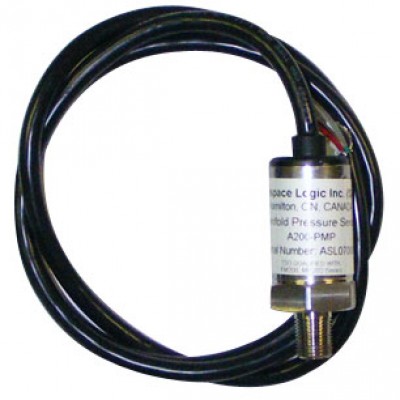

Supplied with a 36" color coded cable.


California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Power requirements are 5V / 10mA
  • Signal output is linear and varies from 0.5V (0 PSI) to 4.5V (100 PSI)
  • Overpressure burst rating is 300 PSI

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is this the same sensor as the one used on Cirrus aircraft? Cirrus PN is 12635-001 or 12635-003

Per the supplier: "No, we do not show this as a direct replacement for Cirrus P/N 12635-001 or 12635-003." We may be able to special order it for you. Please call sales to set up the special order.
