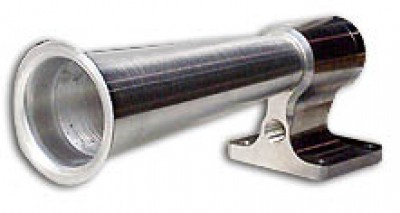

TWO INCH VENTURI 15045

$63.75/Each
Quantity
Add to Wishlist
Part# 15045

Overview

A venturi is a relatively low cost means of producing the vacuum to operate gyroscopic instruments (turn/bank, directional gyro and artificial horizon). It is mounted on the fuselage, parallel with the longitudinal axis of the aircraft. As the aircraft moves through the air, suction is created in the venturi throat. Since the venturi throat is connected by a tube to the gyro instrument case, air is sucked out of the instrument, causing air to enter an inlet port and strike the gyro rotor, which then spins rapidly and activates the instrument. A vacuum regulator and/or restrictor valve may be needed to limit the vacuum to that required for proper instrument operation This small aluminum venturi provides 2"Hg vac- uum for operating turn/bank indicator. Has 1/8" NPT port. Use 1/4" tubing for hookup. Wt.3-1/2 Oz.
Made in USA

Reviews

Gday Jim, Im sure it is an A-class product & you guys are very efficient to deal with, but we still havent received it yet

Tim R
November 29, 2020

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What are the dimensions on the mounting foot print of this 2 inch venturi 15045 (specifically hole spacing)?

2" Length, 2" Width, .250" Thickness and 1.5" distance hole spacing.

Q: How long is it?

Approx 7.25" overall length.
