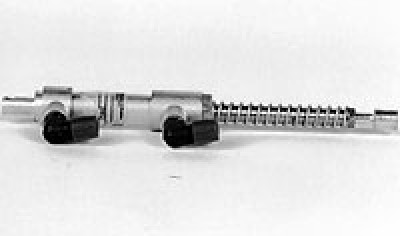

Cleveland Master Brake Cylinder Model 10-19

$2003.00/Each
Quantity
Add to Wishlist
Part# 06-01210
MFR Model# 010-01900

Overview

Used on Pitts and other homebuilts. Similar to Model 10-20 except with ports aligned differently.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Please explain the difference between the 10-19 master cylinder and the 10-20 model? You say they are similar but the ports are different?

The difference between these two are, P/N# 10-19 has an install length of 8.35". The port size is 7/16-20. The comments are, "Ports in-line, fittings 90 degrees, extruded aluminum body".

P/N# 10-20 has an install length of 7.48". The port size is 1/8-27 NPT. The comments are, "Ports in-line, no fittings, no rod celvis, extruded aluminum body." These two are not interchangeable with one another".

Q: Is the O ring set for the 10-20 compatible with the 10-19 Caliper? I have a Pitts with the 10-19 cylinder and need to replace the seals.

The o-ring kit you will need for a 10-19 is P/N# 199-505 (See Accessories).

Q: What is included in the CLEV 199-505 Overhaul KIT for the Cleveland 10-19 master cylinder? Is it just O-rings?

It has 2 o-rings and 1 washer seal.

Q: What does the Cleveland model 10-19 unit weigh?

Approx 0.53 lbs.

Q: correction needed!! I have a 10-19. this cylinder has the 1/8-27 NPT and steel body. Your answer below causes much confusion!!!

There is not a steel body 10-19 per the Cleveland book.

Q: What is the piston diameter of the Cleveland 10-19 master cylinder?

The piston diameter is .560 inch.

Q: I am looking for a Seal kit for my master cylinders. , my model number is 10- 19D. Can you tell me what the D means?

The "D" in 10-19D references a specific cylinder body. The seals are the same for all 10-19 assemblies.
