Home / Landing Gear / Struts and Parts / Rebuild Kits /Piper Nose Strut Seal Kit
Main Image

Piper Nose Strut Seal Kit

19 Reviews 1 Answered Question
$19.95/Each
Quantity
Add to Wishlist View More In This Series →
Part# 06-03965
MFR Model# TPNS-1

Overview

Piper Nose Strut Rebuild Kits

Nose Strut Application: Piper PA28-140, 150, 151, 160, 161, 180, 181, 235 & PA32-260, 300.

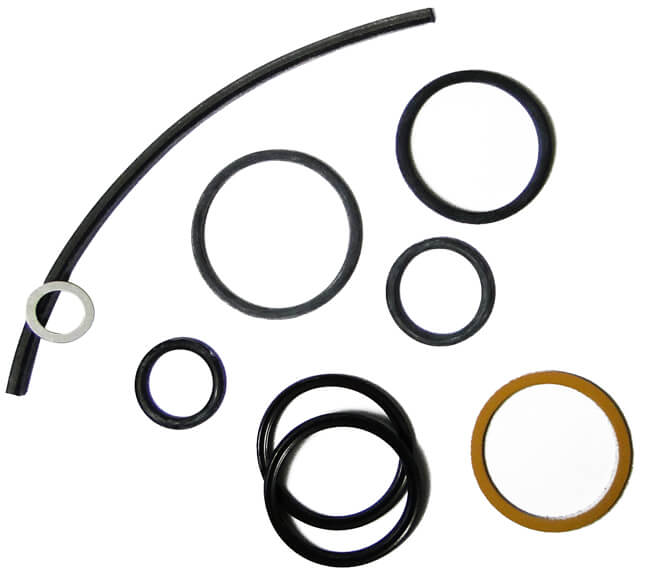

Includes: O-Rings, Seals, Wiper, Back-up Ring & Aluminum Gasket.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

In The Box

  • 1 - MS28775-214/AN6227-19 O-ring
  • 1 - MS28775-211/AN6227-16 O-ring
  • 1 - MS28775-222/AN6227-27 O-ring
  • 2 - Q4222 Quad Seal
  • 1 - MS28775-224/AN6230-2
  • 1 - 10V70 Wiper
  • 1 - AN6246-27 Back-up Ring
  • 1 - AN901-5A Aluminum Gasket
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Submit a Review

Works great

Andrews A Verified Purchase

Trimcraft Piper Nose Strut Rebuild Kit
March 18, 2025

Michael G Verified Purchase

Trimcraft Piper Nose Strut Rebuild Kit
December 24, 2024

Aircraft Spruce always has the right parts at the right price. They also have a great attitude and treat us customers with respect and gratitude

Lonnie A Verified Purchase

Trimcraft Piper Nose Strut Rebuild Kit
November 30, 2024

Rogerio S Verified Purchase

Trimcraft Piper Nose Strut Rebuild Kit
September 21, 2024

Very well priced and it was exactly what I needed to fix my piper nose strut

Bebo S Verified Purchase

Trimcraft Piper Nose Strut Rebuild Kit
July 8, 2024

Replaces the kit I bought for an Arrow instead of my Cherokee 140. Didnt realize my mistake until I had the strut all disassembled!

Larry N Verified Purchase

Trimcraft Piper Nose Strut Rebuild Kit
January 30, 2024

Frank W Verified Purchase

Trimcraft Piper Nose Strut Rebuild Kit
May 23, 2023

Everything you need to rebuild a Cherokee front strut in a handy kit at a great price.

Johnny D Verified Purchase

Trimcraft Piper Nose Strut Rebuild Kit
December 23, 2022

Worked and fit perfectly. BtW, the Piper SM gives two options to service the strut after rebuild. Only do the option where you draw the fluid in with a hose from the new can of 5056 and keep working the strut at least 10 times to work all the air out and on the final collapse of the strut it will leave you with the proper amount of fluid. Remove the hose and reinstall the valve core. Make sure you use 5/16 clear hose to determine when you have the air out.

Timothy L Verified Purchase

Trimcraft Piper Nose Strut Rebuild Kit
December 16, 2022

*****

Hermann T Verified Purchase

Trimcraft Piper Nose Strut Rebuild Kit
November 30, 2022

Q&A

Submit

Please note, Aircraft Spruce ®'s personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce ® assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: If air is leaving the nose oleo strut, is this the kit to fix it? Below minus 30 makes either air or oil leave the strut sometimes, and we usually replace things in it, but its my first time ordering, so just wanted to make sure I get the right items.

Yes, the strut seal kits are designed to be used when the strut is leaking and you are having to re-seal the strut.
