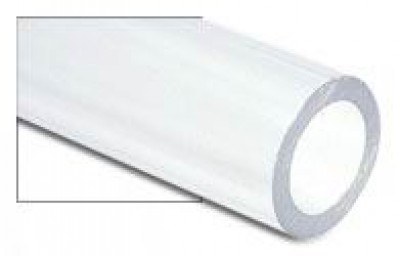

Clear PVC Pipe

$2.60/Foot
Quantity
Add to Wishlist
Part# 03-54100
MFR Model# 4000H-002 6&4FT

Overview

Clear, rigid Schedule 40 PVC pipe for sight gauges. Excellent resistance to gasoline. Nominal 1/4" pipe size (0.54" O.D., 0.33" I.D.)

Maximum Pressure is 390. Maximum Temp is 140 degrees F.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Reviews

Excellent product for Sight Gauge

Humberto D
October 23, 2013

this I thought would be perfect for sight gauge but after a few months it did go milky and with a slight bit of tension on it it will snap a bit risky for aircraft use I thought

Gerrit
December 25, 2013

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: I am interested in the Clear PVC pipe Part # 03-54100 and the question is what fittings would go with it or would it be possible to put a 1/8 NPT on either end and manufacture a fuel gauge like that?

There is not a specific fitting for this tube, but if you have the capability to tap 1/8"NPT, it should work with this tube.

Q: What is the inside diameter of this tubing?

Nominal 1/4" pipe size (0.54" O.D., 0.33" I.D.).
