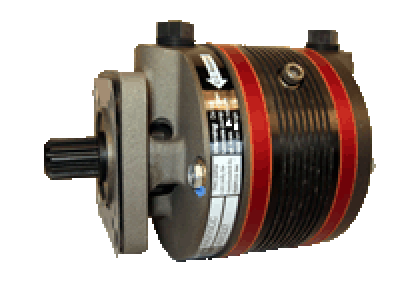

RAPCO RAP215CC NEW AIR PUMP

$415.00/Each
Part# 10-23925
MFR Model# RAP215CC
Rapco Part No.ReplacesPN
RAP215CCAirborne PN. 211CC, 215CC, Aero Accessories PN. AA211CC, AA215CC, AA3215CC, AA3225CC10-23925

Overview

RAPCO DRY AIR VACUUM / PRESSURE PUMPS
Rapco dry air pumps are FAA-PMA approved direct replacements for Airborne and AA.

NEW RAPCO PUMPS are FAA-PMA approved and come with an inspection port and tool to help determine replacement time, and an internal oil seal to help keep out contaminants. Mounting gasket included. Warranty period on the 200 series is three years / 1300 hours. The warranty period on the 240 and the 400 series is 1 year / 500 hours, which ever comes first. There is no Core Charge on new pumps.

OVERHAULED RAPCO PUMPS are FAA approved and come with an FAA form 8130-3. Mounting gasket included. The warranty period for the 200 series is two years / 1000 hours. The warranty period for the 240 and the 400 series is one year / 400 hours, which ever comes first. Core charge applies.



NO CORE CHARGE
Contact RAPCO for details on receiving a $25.00 dollar bonus for your old core.
http://www.rapcoinc.com/

Mounting flange gasket is included.

Application Guide
Download Complete Rapco Catalog (PDF)
  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Works as expected.

Hugh F Verified Purchase

RAPCO RAP215CC NEW AIR PUMP

September 7, 2022

Satisfactory

Don F Verified Purchase

RAPCO RAP215CC NEW AIR PUMP

August 5, 2022

great value!

Stephen S Verified Purchase

RAPCO RAP215CC NEW AIR PUMP

July 14, 2022

Pump installed, all vacuum sys are back to normal. Works.

Sandra M Verified Purchase

RAPCO RAP215CC NEW AIR PUMP

July 11, 2022

7

Eap A Verified Purchase

RAPCO RAP215CC NEW AIR PUMP

July 5, 2022

Richard P Verified Purchase

RAPCO RAP215CC NEW AIR PUMP

March 12, 2022

Replaced old pump and is working great

Doug C Verified Purchase

RAPCO RAP215CC NEW AIR PUMP

December 26, 2021

Felipe C Verified Purchase

RAPCO RAP215CC NEW AIR PUMP

December 4, 2021

Royce T Verified Purchase

RAPCO RAP215CC NEW AIR PUMP

October 22, 2021

Norm P Verified Purchase

RAPCO RAP215CC NEW AIR PUMP

September 13, 2021

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Do the New Rapco Dry Air Vacuum Pumps listed on this page come standard with an 8130 form?

Yes. All Rapco approved parts now come with an 8130-3 form that is good for export as well as domestic.

Q: What is the difference between a RAP215CC and a RAP215CC-9?

Per Rapco: Any pump will run mounted in any position however the 215CC-9 dry air pump was primarily designed to hang vertically on the bottom of an Continental O-200 engine, in a location with a high probability of oil contamination. If oil gets into the pump it will gum up the vanes and they will cease to produce suction. Oil contamination is the number 2 cause of premature dry air pump failure next to foreign object damage. Airborne attempted to deal with this contamination problem by putting a slinger ring on the drive shaft to throw off any oil that might happen to drip down. The oil is slung into a channel with a drain hole to try to get it away from the shaft. It helps although if the oil problem is not soon resolved the pump will soon fail to operate. There were also a few other applications in which the aircraft manufacturer called out for this particular pump to go on aircraft with Lycoming O-320 engines, even though on that engine the pump is situated horizontally. On new RAPCO pumps we use a proprietary oil seal on the drive shaft, instead of the slinger ring, to deal with oil contamination issues. In addition to the RAP215CC-9 all of our new dry air pumps have it.

Q: Are dimensions available? Specifically the drive-face to rear dimension on the 216CW.

From the drive-face or mounting pad, to the furthest rear location is about 4.350 inches.

Q: Can you advise which filter goes with your 10-23925. RAP21500?

There is not a specific filter to pump application. The aircraft parts manual will show the filter used for that airframes vacuum system. Otherwise there are several to choose from, like p/n RA1J7-1.

Q: Does the rapco 215cc replace the rapco 211cc and are they the same dimensions?

Yes, they are interchangeable and will have the same external dimensions.

Q: Do the new Rapco dry air vacuum pumps come with a new gasket?

Yes the gasket is included.

Q: I have a tempest AA3215CC, is there a Rapco that can replace it?

RAP215CC new, our part # 10-23925. 215cc overhauled our part # 10-03084.

Q: I am replacing an Airborne 200CC vacuum pump. What is the new Rapco equivalent number?

P/N# 10-23925 will be the correct replacement as the 200CC has been superseded to the 215CC pump.

Q: I need to replace an airborne 215cc. Will this Rapco 215cc work?

Yes, the Rapco 215cc replaces the Airborne 215cc.

Q: Does the Rapco 215cc need an air/oil separator?

It does not, a RAP215CC is a DRY air pump and there should be no oil in the system to separate.
