SILICON NIPPLE RED MS25171-2S

Packaged Items
SinglePack of 5

Overview

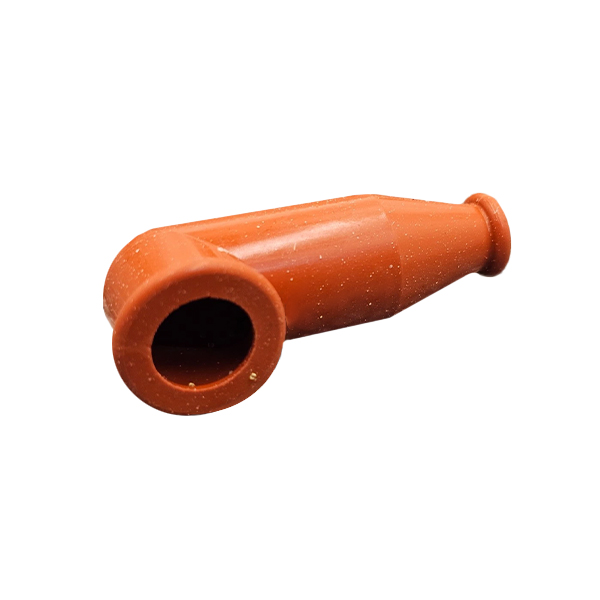

Right angle nipples made of silicone rubber
MIL-R-5847, Class II, Grade 50. A-A-59178B

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

A-A-59178B A B C D E F G H
Dash No. Max. ±.125 ±.005 Dia. Dia. Dia. Dia. Dia.
-1 1.38" 0.56" 0.06" 0.4" 0.63" 0.16" 0.41" 0.76"
-2 2.5" 1" 0.06" 0.56" 0.82" 0.31" 0.56" 0.95"
-3 2.5" 1" 0.06" 0.56" 0.82" 0.43" 0.68" 0.95"
-4 2.5" 1" 0.06" 0.56" 0.82" 0.56" 0.82" 0.95"

Reviews

Download A-A-59178B from everyspec for a better drawing.

John B
February 2, 2023

These works great. just be sure to measure to get the correct size for the wire and for the lug.

Owl E Verified Purchase

SILICON NIPPLE RED MS25171-2S

January 8, 2023

Donald F Verified Purchase

SILICON NIPPLE RED MS25171-2S

July 16, 2022

Pick the right size for your wire diameter.

Joseph J Verified Purchase

SILICON NIPPLE RED MS25171-2S

June 17, 2022

Good product. Would purchase again.

Red M Verified Purchase

SILICON NIPPLE RED MS25171-2S

April 10, 2022

Robert E Verified Purchase

SILICON NIPPLE RED MS25171-2S

January 6, 2022

Mike M Verified Purchase

SILICON NIPPLE RED MS25171-2S

September 7, 2021

OK

Brm A Verified Purchase

SILICON NIPPLE RED MS25171-2S

August 28, 2021

Infinity A Verified Purchase

SILICON NIPPLE RED MS25171-2S

July 6, 2021

Excellent part!

William M Verified Purchase

SILICON NIPPLE RED MS25171-2S

July 1, 2021

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Are these widths in inches or cm?

The dimensions listed are in inches.

Q: Any temperature specification? How do they perform inside an engine cowling?

The temp range is from -85 to 4010F, and these are commonly used on engine components.
