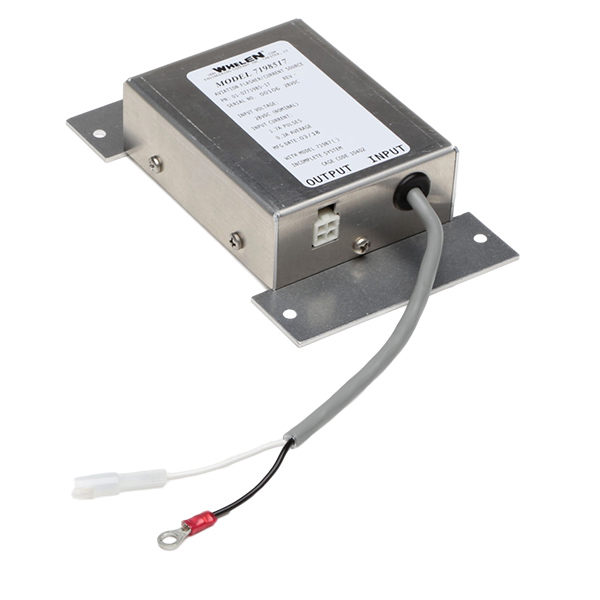

WHELEN 7198517 FLASHER ASSY

$355.00/Each
Part# 11-18320
MFR Model# 01-0771985-17
ModelWhelen #DescriptionApprovalPart Number
719851701-0771985-17Flasher AssemblyFAA-PMA11-18320

Overview

The Model 7198700 & 7198517 is designed to replace the legacy strobe light (01-0770818-00) and power supply (01-0770006-12 & -17) system on Cessna single engine restart aircraft 1996 & newer. FAA/PMA Approved.

**Note: If replacing either 7081800 strobe assembly or 7000617 power supply both 7198517 & 7198700 are needed to convert to LED.**

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Drawing: 71987 & 71985
  • Weight: 0.14lbs. - 71987 / 0.48lbs. - 71985
  • Current Draw: 0.3 AMPS Avg. @ 28 Volts
  • Dimensions: 71987 - 1.18 (30mm) H X 3.17 (81mm) L X 1.42 (6mm) W 71985 - 1.38 (35MM) H X 3.93 (100mm) L X 3.10 (79mm) W
  • LED Color - Aviation White
  • Model: 7198700 - 01-0771987-00 - LED Anti-Collision Light, White
  • Model: 7198517 - 01-0771985-17 - Flasher Assembly
