Rotax 912 | 914 Ul Muffler | Turbocharger | Oil Sump Container

From $0.19 to $1726.62

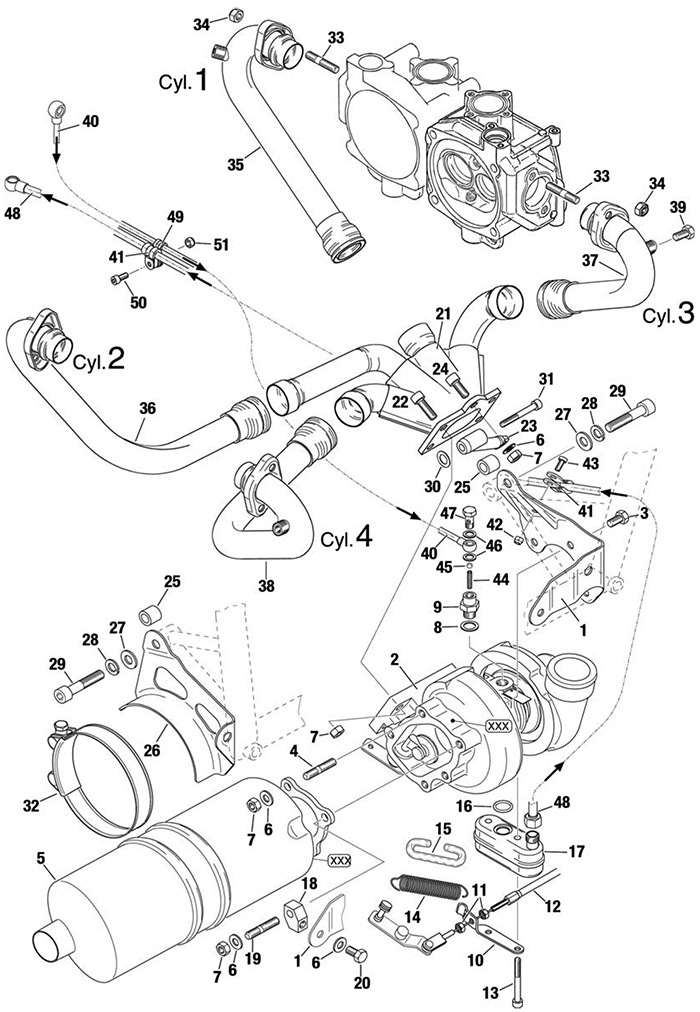

Reference Chart

(Hover to zoom | Use mouse wheel for +/-)

No. Rotax Number Description Qty 912 UL Qty 912 ULS Qty 914 UL PN Price Buy
3940-583HEX. SCREW M8x16 STAINLESS4
15-03204
$1.99
Quantity
5979-406 MUFFLER ASSEMBLY STAINLESS1af
15-10538
$1726.62
Quantity
6250-313 WASHER 8.4 STAINLESS7
15-00258
$0.75
Quantity
7242-203HEX. NUT M8 STAINLESS10
15-00210
$1.05
Quantity
11242-211HEX. NUT M62
15-00214
$0.27
Quantity
15960-080SILICONE TUBE 5x8ARc
15-03625
$27.50
Quantity
16430-225O-RING 15.9-2.31
15-00528
$5.71
Quantity
19641-343STUD M8x30/131a
15-00669
$5.71
Quantity
20940-583HEX. SCREW M8x16 STAINLESS1
15-09866
$3.51
Quantity
21979-416EXHAUST MANIFOLD ASSEMBLY STAINLESS 1f
15-10362
$1155.77
Quantity
22240-083ALLEN SCREW M8x25 STAINLESS4
15-00118
$1.97
Quantity
25847-841 SPACER 10.5/17/152
15-09176
$6.30
Quantity
27927-411WASHER 10.52
15-09721
$0.63
Quantity
28945-833LOCK WASHER A102
15-10852
$0.19
Quantity
36979-437EXHAUST BEND CYLINDER 2 STAINLESS1e
15-04110
$727.00
Quantity
37979-447EXHAUST BEND CYLINDER 3 STAINLESS1e
15-10295
$667.74
Quantity
40956-476TURBO PRESSURE OIL LINE1
15-03551
$171.85
Quantity
42, 51942-021LOCK NUT M5 (#51 - 2 Req.)1
15-03290
$0.72
Quantity
43, 50241-842ALLEN SCREW M5x12 (#50 - 2 Req.)1
15-09746
$0.76
Quantity
47840-730BANJO BOLT M8x1x171d
15-01136
$36.89
Quantity
43241-842ALLEN SCREW M5x121
15-00192
$0.43
Quantity
Subtotal $0.00
Add to Wishlist

Overview

- Items not illustrated
  • a   Marked with S/N;
  • b   Stainless
  • c   In a roll, Tube 125 mm (4.92 in.)
  • d   With imprinting “oil”;
  • e   See Service Instruction SI-914-022 current issue
  • f    With additional internal bracket from engine S/N 914 F: 4,420.437
  • g   With lubrication hole for waste gate shaft


Explanations of symbols and statements in part number charts:
  • N = Newly introduced part number
  • s.v. = Still valid. Part was replaced by compatible component and can not be supplied any longer by the producer. Existing stock may be used.
  • AR = As required. This generally refers to shims, hose, wires, and cable. Measure the amount you need before ordering. Many times there will be multiple listings of different lengths with the same part number. Use individual part descriptions to determine the proper length needed.
  • n.a or NLA = No longer available, no replacement from Rotax. Part is no longer available due to incompatibility to current production or unavailability of part.
  • CALL = Please call for price, 800-247-9653

Notes

No.
Status
Part No.
Description
912 UL
912 ULS
914 UL
Price
12
xxx-xxx
see chapt. 76-00-00
1
-
20
940-583
HEX. SCREW M8x16 STAINLESS 19 ft.lb.
1
$1.99
30
xxx-xxx
see chapt. 72-20-00 pos. 38
AR
-
31
xxx-xxx
see chapt. 72-20-00 pos. 36
AR
-
33
xxx-xxx
See fig. 1 pos. 10
8
8
8
-
34
xxx-xxx
See fig. 1 pos. 11
8
8
-
39
-
HEX. SCREW M8x1x6
4
-
50
241-841
ALLEN SCREW M5x12
2
$0.43
51
942-020
LOCK NUT M5
2
$0.72
