Rotax 912 iS Oil Radiator Parts

From $12.65 to $309.80

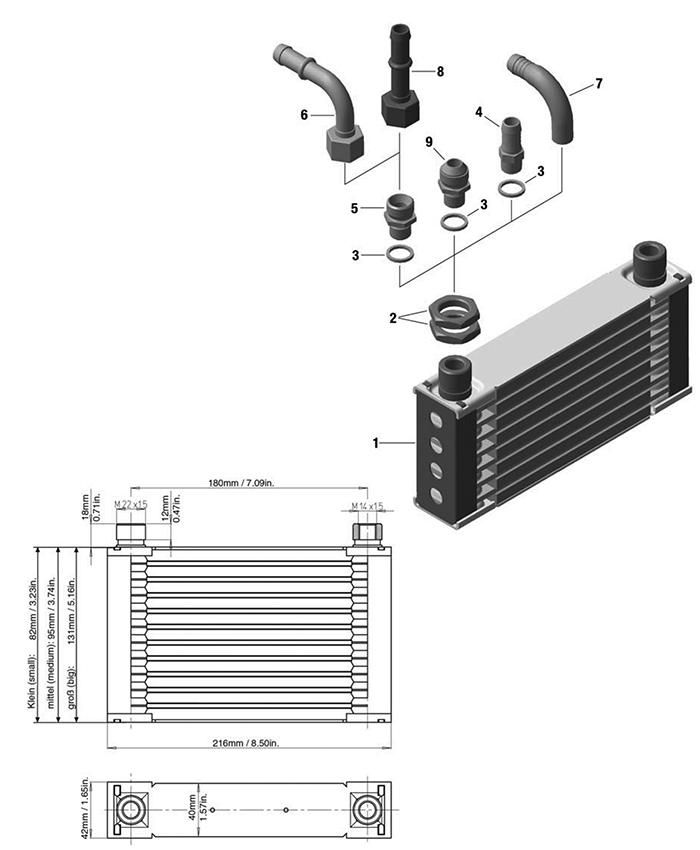

Reference Chart

(Hover to zoom | Use mouse wheel for +/-)

No. Rotax Part Number Description Qty Req PN Price Buy
1-4886-032OIL RADIATOR SET(1a)
15-10548
$305.00
Quantity
1886-000OIL RADIATOR(1a)
15-10539
$290.64
Quantity
1886-002OIL RADIATOR(1b)
15-10540
$309.80
Quantity
2,3,9956-645SCREW CONNECTION SET UNF(1)
15-03581
$93.25
Quantity
3,5,8956-615SCREW CONNECTION SET STRAIGHT(1)
15-03577
$93.25
Quantity
4840-461NIPPLE 13.2/9.5-M14x1.5(2)
15-08694
$12.65
Quantity
6956-580BENT SOCKET ASSEMBLY(2)
15-10085
$30.80
Quantity
7924-585ANGULAR TUBE M14x1.5(2)
15-02960
$53.60
Quantity
9956-643ADAPTER 3/4-16 UNF/M14x1.5(2)
15-03580
$49.55
Quantity
Subtotal $0.00
Add to Wishlist

Overview

- Items not illustrated
  • a   Small. Cooling area 125 cm2/19.38 sq in
  • b   Middle. Cooling area 142 cm2/22 sq in
  • c   Big. Cooling area 234 cm2/36.27 sq in
  • d   Connection UNF


Explanations of symbols and statements in part number charts:
  • N = Newly introduced part number
  • s.v. = Still valid. Part was replaced by compatible component and can not be supplied any longer by the producer. Existing stock may be used.
  • AR = As required. This generally refers to shims, hose, wires, and cable. Measure the amount you need before ordering. Many times there will be multiple listings of different lengths with the same part number. Use individual part descriptions to determine the proper length needed.
  • n.a or NLA = No longer available, no replacement from Rotax. Part is no longer available due to incompatibility to current production or unavailability of part.
  • CALL = Please call for price, 800-247-9653

Notes

No.
Status
Part No.
Description
912iS
912iS Sport
Price
1-4
886-034
OIL RADIATOR SET
2
2
*
1
886-022
OIL RADIATOR
(1a)
(1a)
*
1
886-023
OIL RADIATOR
(1b)
(1b)
*
6
956-580
BENT SOCKET ASSEMBLY
AR
AR
*
