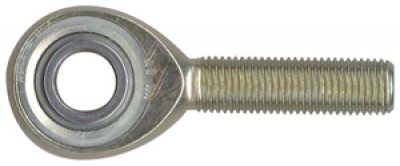

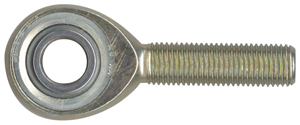

Mm-6Y Bearing

$11.50/Each
Quantity
Add to Wishlist
Part# 04-00196
MFR Model# MM-6Y

Overview

MM-6Y Bearing

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Thread type: right hand
  • Thread configuration: male
  • B-Ball Bore [inch]: .3750
  • W Ball Width [inch]: .500
  • H-Head Width [inch]: .406
  • A-Base to Center [inch]: 1.938
  • D-Head Diameter [inch]: 1.000
  • Ball Diameter [inch]: .719
  • C-Thread Length [inch]: 1.250
  • Thread Size: 3/8-24
  • Thread Class: UNF-3A
  • a- Misalignment Angle Clevis Mounted [degrees]: 12
  • Ultimate Radial Static Load Capacity [lbs.]: 3,915
  • Approximate Brg. Weight [lbs.]: .112
  • Options: Stud, Solid Shank
  • Lubrication Options: Zerk Fitting, Flush Fitting or Ptfe Liner
