PN | L/R | Thread | Hole Dia. |
Inside Width |
Strength | Price | Buy |
---|---|---|---|---|---|---|---|
AN665-10R | R | 6-40 | .190 | .109 | 1200 | $16.90 | |
AN665-21R | R | 10-32 | .190 | .150 | 2400 | $16.50 | |
AN665-34R | R | 1/4-28 | .250 | .203 | 4200 | $29.65 | |
AN665-46R | R | 5/16- 24 | .313 | .203 | 4600 | $37.50 | |
AN665-61R | R | 5/16- 24 | .375 | .203 | 6900 | $42.75 | |
AN665-80R | R | 3/8-24 | .375 | .266 | 10000 | $52.75 | |
AN665-10L | L | 6-40 | .190 | .109 | 1200 | $15.55 | |
AN665-21L | L | 10-32 | .190 | .150 | 2400 | $16.50 | |
AN665-34L | L | 1/4-28 | .250 | .203 | 4200 | $34.50 | |
AN665-46L | L | 5/16- 24 | .313 | .203 | 4600 | $37.65 | |
AN665-61L | L | 5/16- 24 | .375 | .203 | 6900 | $42.75 | |
AN665-80L | L | 3/8-24 | .375 | .266 | 10000 | $52.75 |

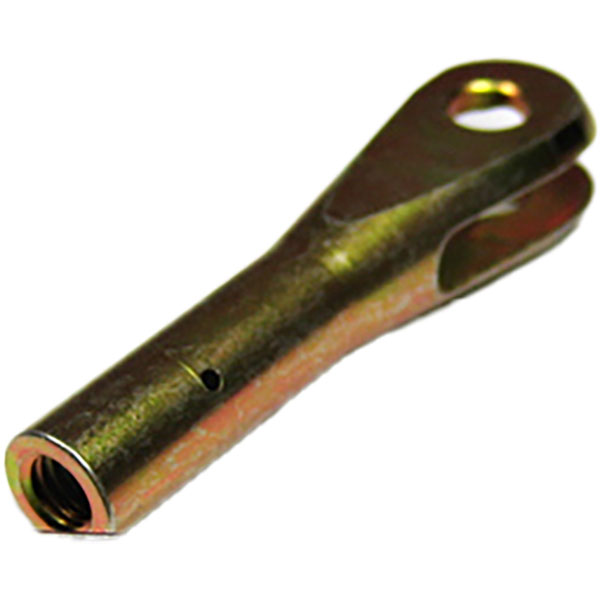

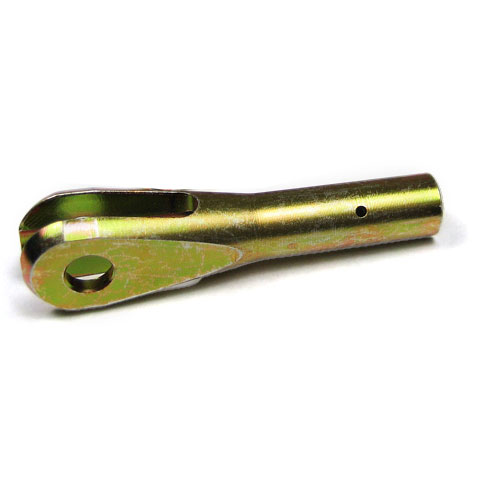

These Zinc plated steel terminals are manufactured to AN specifications, with either right-hand or left-hand threads. Example: P/N AN665-10L has a 6-40 lefthand thread. AN665-34R has a 1/4-28 right-hand thread.
Terminal
Assemblies if locknut, clevis pin, and cotter pin are required along with terminal. Otherwise, only terminals are supplied. *Note - Cad Plated Terminals are no longer being manufactured due to enviromental reasons. Once the cad plated stock is depleted the zinc plated terminals will be shipped. Please note that we can not guarantee cad plated terminals will be received. |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
As advertised, what can go wrong with AN/MS/NAS approved products.
Clevis Tie Rod Term. AN665-21L
Clevis Terminal AN665-46R
Perfect parts!
Clevis Tie Rod Term AN665-34R
As received, this clevis was well made with chamfered edges, smooth threads, and without blemishes in the finish. High quality product, as I’ve come to expect from Aircraft Spuce.
Threaded Clevis Tie Rod AN665-21R
AN665-80R Threaded Clevis Tie Rod Terminal
Threaded clevis tie rod
Threaded Clevis Tie Rod AN665-21R
High quality fit and finish, a great looking replacement for old, junky appearance parts
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The AN665-34R unit only uses the clevis and cotter pins that are in the 05-02700 kits, which is : AN394-15 Clevis Pin & MS24665-132 Cotter Pin. The kit also included the AN315-4R jam nut.
The AN665-34R or -34L will have a 1/4 hole.
