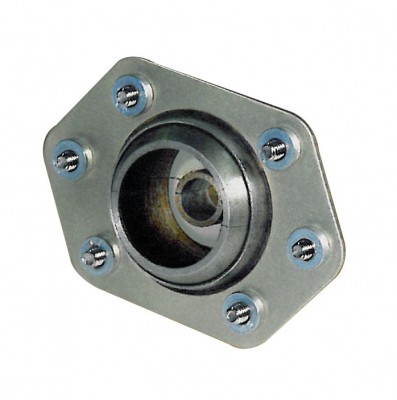

The S series firewall fitting has a 1 inch steel ball held in place by 2 stainless steel pressure plates. It has a swivel angle up to 50 degrees from straight and is held to the firewall with 6 #4 screws.
Assembly weighs only 1.0oz-1.9oz (.06lb-.12lb) depending on ball hole size.
Ball hole sizes available are .125, .188, .218, .240, .250, .260, .312, .330, .375, .438, .500, .562 and .750.
Meets FAR 23.1191 and AC 20-135 requirements.
Order example: TTP-125S (.125 ball hole size)
WARNING: The product may contain and/or expose you to a chemical(s) or substance(s) which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. www.P65Warnings.ca.gov
These are well made in the USA. Fit great and look good. No disappointment.
SPHERE STEEL GROMMET .330
Great product. Well made.
SPHERE STEEL GROMMET .250
Good quality manufactured part, however, it is NOT easy to install. I would not recommend this installation on an already completed aircraft with limited work space. The size .25 does NOT fit over a .25 control cable, try .26.
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Yes, 05-01382 will secure an A920 outer housing.
I could not identify an A-760 cable, but if you are referring to an A-1760 cable, the best eyeball assembly to use is one with a 0.240" hole. There are several to choose from this size. You will just need to select the style of assembly you want and then the hole size 0.240".
You will need to drill a 1.125" diameter hole.
If you need the housing to go through the eyeball firewall fitting, then you would use Part # 05-01381.
