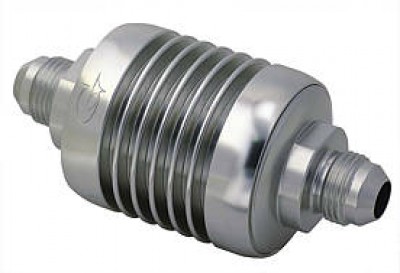

Micron 10 Fuel Filter

$133.75/Each
Quantity
Add to Wishlist
Part# 05-01699
MFR Model# 40-06AN

Overview

**This is a very fine stainless steel type filter. Frequent inspections are required.**

This award winning high performance billet, stainless steel, washable and reusable Filter is USA made, high performance billet, stainless steel, washable and reusable superb flow filters. For those who want and appreciate quality, these high performance billet, stainless steel, washable and reusable filter will take you to the highest level of filtration performance.

Filter Element: Designed and engineered for the aerospace industry, for rugged, high temperatures, and extreme filtration environments, made of pleated 304 stainless steel, 10 micron (.000392"), 1.375"(inch)diameter. there is a total of 6.2 square inches of effective filtration area, providing maximum flow of 900 gallons per hour simultaneously with no restriction and no drop in pressure.

The filter element is washable and reusable indefinitely, cleaned easily with air or soluble rinse. Bodies: The finest CNC machining from 6061 aluminum, Clear Anodize, give you the clearance for use in any type of fuel, oil etc. The billet, stainless steel, washable, reusable, and performance filters assembly is reversible to provide full fuel bypass to prevent fuel starvation in racing applications. The interchangeable threaded end caps are sealed with rubber O-Rings that will withstand over 6,000 pounds per square inch of pressure.

Filters can be used in other applications such as: Transmission, Power Steering, Rear End Gears and more. Note: For other then fuel applications, may require a large micron element.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Length: 4.25”
  • Diameter: 2.0”
  • Flow rate: 15.3 gpm
  • Weight: 5 oz.
  • Fitting Size: use (-6) Phenix Fittings - see "Accessories" tab
  • Filter medium: 1.375” dia. 304 pleated SST disk
  • Filter Efficiency: 10 Micron
  • Operating Pressure: 8,000 PSIG
  • Drop in pressure: 1.0%
  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

The inline filter is very well made and can be cleaned very easy. My only concerns in my application is the 10 micro screen is to fine. I have another filter down stream before the injection rail to catch the small stuff, so I dont want this filter to plug before the other filter. They are trying to see if this filter can be purchase with a coarser screen. Then it will safer for my home built application.

Larry
December 25, 2018

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Since this filter is S.S and aluminun...could it be used in filtering water? Filter 05-01666 thanks

We cannot recommend this for filtering water as it was designed to filter fuel. Any additional application would be secondary to its intended function.

Q: Is this filter compatible with methanol?

Per the vendor, it is NOT compatible with methanol.

Q: Is this Micron 10 Fuel Filter suitable for fuel injected engines?

Per the supplier: Yes, this can used with fuel injected engines.

Q: Is this Micron 10 Fuel Filter suitable for fuel injected engines?

Per the supplier: Yes, this can used with fuel injected engines.

Q: Is this filter compatible with ethanol?

Per the supplier: yes, we recommend E-85 Ethanol.

Q: Is this Micron 10 fuel filter compatible with kerosene?

Per the supplier: It is not recommended to be used with kerosene.

Q: What is the size of the flare fittings on this Micron 10 Fuel Filter?

The filter has male 3/8"(-6), flare fittings.

Q: Is this Micron 10 filter compatible with Jet A?

Yes, this is compatible with Jet A fuel.

Q: Is this micron 10 filter compatible with Jet A1 ?

We do not have any data to support using this filter with Jet A.

Q: Can this filter be used on certified aircraft?

No, as this is for experimental aircraft only as it does not hold any aircraft certifications or approvals.
