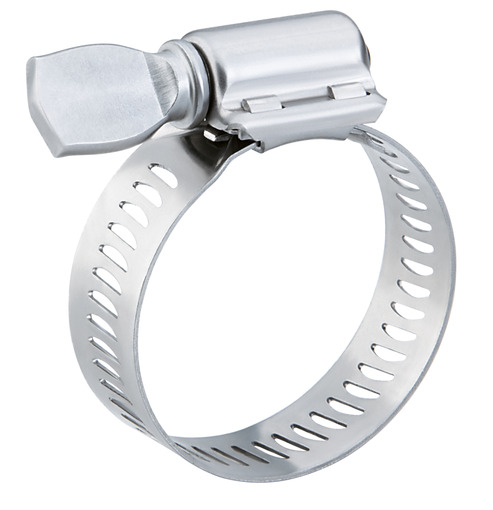

BREEZE AERO-SEAL® CLAMPS 200 SERIES STAINLESS STEEL WING SCREW

From $2.15 to $2.65
SAE Min Max PN Price Buy
67/1625/32
QS200-06W
$2.16
Quantity
81/229/32
QS200-08W
$2.17
Quantity
109/161-1/16
QS200-10W
$2.18
Quantity
1211-161-1/4
QS200-12W
$2.17
Quantity
1613/161-1/2
QS200-16W
$2.37
Quantity
241-1/162
QS200-24W
$2.15
Quantity
281-9/162-1/4
QS200-28W
$2.15
Quantity
321-9/162-1/2
QS200-32W
$2.28
Quantity
361-13/162-3/4
QS200-36W
$2.53
Quantity
402-1/163
QS200-40W
$2.65
Quantity
Subtotal $0.00
Add to Wishlist

Overview

Perforated Stainless Steel worm-drive clamp. Heavy-duty four-piece Quadra-Lock construction enables far more tightening torque to be delivered to the band perforations. Use for aircraft and heavy-duty industrial applications. Conical Arched Perforated Slots: More steel between perforations for added strength and smoother worm-drive engagement. Made in the USA
  • Thumb Wing or Safety Screw Options
  • Quadra-Lock Construction
  • Per SAE Standard J1508 Type F
  • Diameter Range 7/16" – 12 1/4"
Aero-Seal Specs:
  • 5/16" 410 Stainless Steel Thumb Wing Screw
  • 9/16" Band in 300-Series SS
  • Two-Piece Housing in 300-Series SS

Specifications

EFFECTIVE DIAMETER RANGE
PART NUMBERS
SAE Size
Min.
Max.
410 SS Hex* Screw
in.
mm.
in.
mm.
6
7/16
11
25/32
20
200 06 H
8
1/2
13
29/32
23
200 08 H
10
9/16
14
1-1/16
27
200 10 H
12
11/16
17
1-1/4
32
200 12 H
16
13/16
21
1-1/2
38
200 16 H
20
13/16
21
1-3/4
44
200 20 H
24
1-1/16
27
2
51
200 24 H
28
1-5/16
33
2-1/4
57
200 28 H
32
1-9/16
40
2-1/2
64
200 32 H
36
1-13/16
46
2-3/4
70
200 36 H
40
2-1/16
52
3
76
200 40 H
44
2-5/16
59
3-1/4
83
200 44 H
48
2-9/16
65
3-1/2
89
200 48 H
52
2-13/16
71
3-3/4
95
200 52 H
56
3-1/16
78
4
102
200 56 H
60
3-5/16
84
4-1/4
108
200 60 H
64
3-9/16
91
4-1/2
114
200 64 H
72
1-7/8
48
5
127
200 72 H
80
2-1/2
64
5-1/2
140
200 80 H
88
3-1/8
79
6
152
200 88 H
96
3-5/8
92
6-1/2
165
200 96 H
104
4-1/8
105
7
178
200 104 H
128
5-5/8
143
8-1/2
216
200 128 H
152
7-1/8
181
10
254
200 152 H
188
9-3/8
238
12-1/4
311
200 188 H
  • Customers Also Viewed
  • Frequently Purchased With

Reviews

I bought these clamps not for an aircraft but for a vintage look on my Hot Rod. This is a period Hot Rod and the clamps turned out perfect. Thanks Bob Meehan

Bob M
June 13, 2020

thanks for the fast shipping, and grate prices

Tim R
July 19, 2019

very good product and the price was great Thanks

Tim R
July 19, 2019

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the difference between the QS 100 and QS 200 series Breeze Aero-Seal clamps?

QS100 are cadmium and QS200 are stainless.
