RAMI AV-12 / AV-12L VOR ANTENNA

From $246.95 to $279.95
DESCRIPTION PART NO. PRICE BUY
RA MILLER ANTENNA AV-12
11-02368
$246.95
Quantity
RA MILLER ANTENNA AV-12L
11-05847
$279.95
Quantity
Subtotal $0.00
Add to Wishlist

Overview

P/N AV-12L

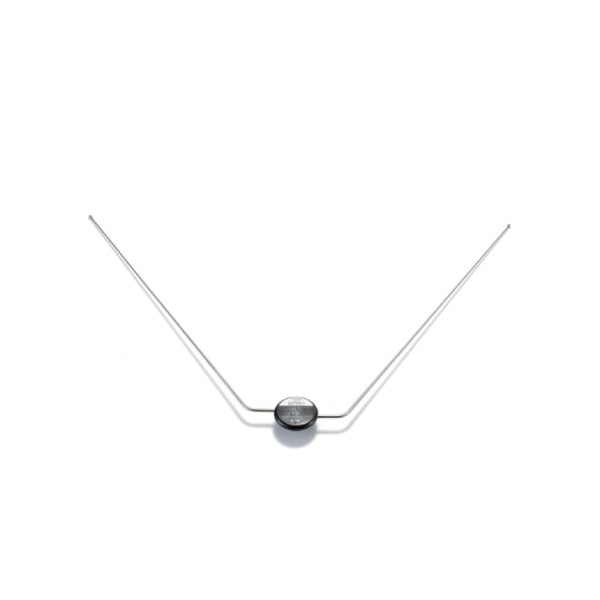

The AV-12 is a VOR/LOC receive only antenna which uses a highly efficient technique of molding the elements directly into a high-impact thermo-setting bakelite center insulator. The stainless steel elements are ground to close tolerances to provide a low profile. The antenna is designed to operate at speeds up to 350 mph and altitudes up to 50,000 ft. It has a drag force of 0.92 lb @ 250 mph.

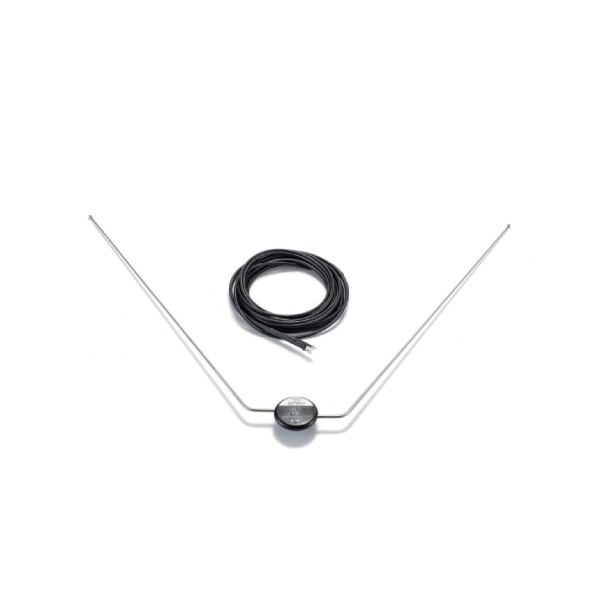

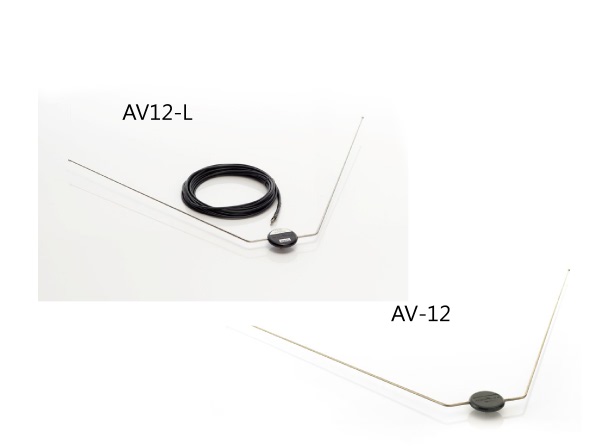

The AV-12L includes all of the same features as the AV-12 and a 25 ft cable with integral balun is also supplied. Order P/N 11-03992 for male BNC connector.

Click here to download
Outline Drawing in PDF format.

Specifications

  • Application: VOR Receive Only
  • Frequency: 108 to 118 MHz
  • Impedance: 50 Ohms Nominal
  • VSWR: 2.2 to 1 Maximum
  • Connector: N/A
  • Max Weight: 5.5 oz (14 oz with cable)
  • Width Across Tips: 29-1/2"
  • RF Power Capacity: Receive only
  • Accessories
  • Customers Also Viewed
  • Frequently Purchased With
  • Related Items

Reviews

The listing information is incorrect. This is a VOR/Loc/Glide slope antenna. It was an exact replacement for the one in my 1978 Piper. It works fine for VOR and ILS.

Joshua M
May 20, 2021

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Can I use this antenna in a Cessna 170B for VOR only, no ILS.

The AV 12 and AV 12L are certified (TSO'd) antennas so you can install in a certified aircraft.

Q: Can this antenna be used with Mitchell Nav/com 170C radios?

Yes it can but will only give you VOR NAV not VOR with glideslope.

Q: How thick is the center bakelite insulator (top surface to bottom surface) for the RAMI AV-12/12L antennas?

The measurement from the top to the bottom is .5 inches.
