RAMI AV-532L VOR Antenna With Cable

0 Reviews 8 Answered Questions
$244.00/Each
Quantity
Add to Wishlist
Part# 11-05101
MFR Model# AV-532L

Overview

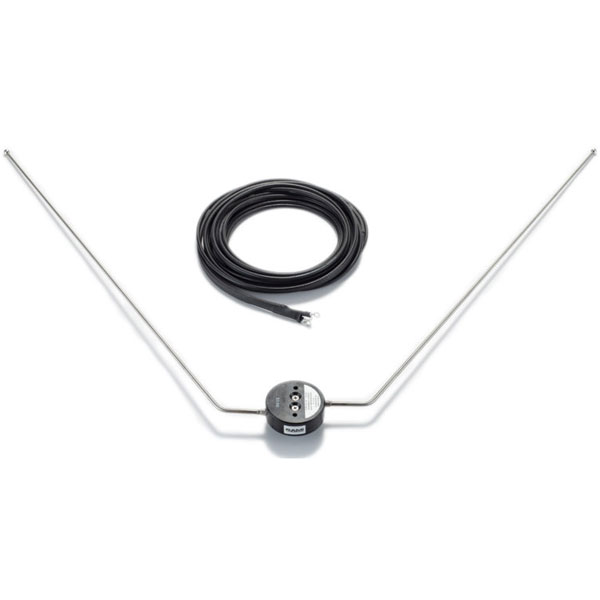

The AV-532 is a VOR/LOC/GS receive only antenna which consists of taper ground high-strength 17-7PH stainless steel elements to reliably withstand vibration and wind loads. The insulators are weather-sealed compression-molded bakelite with the mounting holes provided. The unit may be mounted with the V pointed either forward or aft. The antenna is designed to operate at speeds up to 350 mph and altitudes up to 50,000 ft. It has a drag force of 3.42 lb @ 250 mph. A 30 ft. transmission line with integral balun is also supplied.

Specifications

  • Application: VOR/LOC/GS (Receive Only)
  • Frequency: 108 to 118 MHz, 328-336MHz
  • Impedance: 50 Ohms Nominal
  • VSWR: 2.0:1 Maximum
  • Pattern: Omni-Directional
  • Connector: Threaded studs to accept transmission line assembly with integral balun transformer (included)
  • Max Weight: 11 oz
  • FAA TSO: C40c
  • Width Across Tips: 23-1/2"

Documents

  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Submit a Review

Q&A

Submit

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: The Rami website states the AV-532L is a Nav/Vor/GS combined antenna but your website says that the AV-532L is VOR ONLY. Can you please advise to why there is a discrepancy? Thank you

Our website has incorrect information. The RAMI website is correct. We are updating our online info now. Thank you for bringing this to our attention.

Q: What is the cable length on this RAMI AV-532L antenna with cable? What is the connector on it?

The cable is 30 feet with threaded studs for the antenna side. The unit side is unterminated.

Q: Is this antenna compatible with a Garmin G5 in order to use VOR/LOC/ILS? Needs two cables from the antenna top work with those two or just one cable and diplexer o splitter?

The G5 cannot connect to this antenna directly.

Q: Which Specification is the cable? RG400 or other?

The COAX being used is RG58.

Q: It says this comes with RG58. Can this antenna be used on a certified aircraft?

Yes. This is a TSO'd antenna.

Q: Is this RAMI AV-532L antenna suitable to transmit and receive VHF comms?

No, this is not a communications antenna. It is a VOR/LOC/GS receive antenna only.

Q: IS THE 30 FT OF CABLE IMPORTANT OR CAN THE CABLE LENGTH BE DIFFERENT?

This is a pre-fabricated cable from the manufacturer and only comes in 1 length.

Q: Can this antenna have its elements unscrewed to ship using a smaller package?

Unfortunately we cannot break down the elements. We want to ship it the safest way and using the mfg formed box to confirm the safety of the part.
