RAMI AV-525 VOR/LOC/GS ANTENNA FAA TSO

Select Bundle:
AV-525 Unit OnlyAV-525 + AV-801 WAAS GPS Antenna
Quantity
Add to Wishlist

Overview

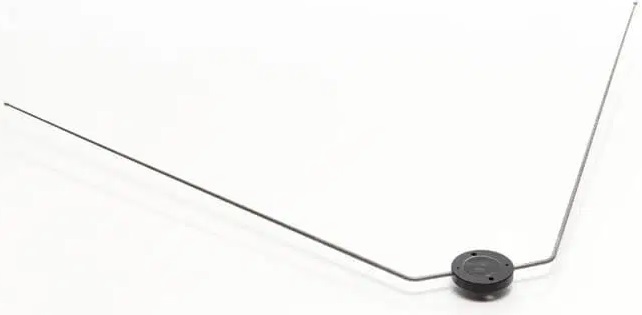

The AV-525 FAA/TSO is a VOR/LOC/GS antenna similar in style to the AV-12 but utilizes an internal balun transformer. The antenna is rated at speeds up to 350 mph and altitudes up to 50,000 feet. It is a direct replacement for the CI 157P.

Frequency: 108-118 MHz (VOR/LOC) / 329-335 MHz (GS)

Specifications

  • Application: VOR/LOC/GS Receive Only
  • Frequency: 108-118 MHz (VOR/LOC)
  • 329-335 MHz (GS)
  • Impedance: 50 Ohms Nominal
  • VSWR: 3.0:1 Maximum 108-118 MHz
  • 2.0:1 Maximum 329-335 MHz
  • Polarization: Horizontal
  • Pattern: Omni-Directional
  • Connector: “BNC” Female
  • Weight: 0.50 lbs
  • FAA TSO: C34e, C36e, C40c
  • Customers Also Viewed
  • Frequently Purchased With

Reviews

Very happy with this purchase and delivery.

Shawn G
April 6, 2021

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does this have screw in elements?

Yes, this does.

Q: What are the dimensions and weight of the RAMI AV-525 antenna?

The AV-525 measures: W 29.64" x L 20.03" | Weight: 0.50 pounds

Q: What is the length of the cable? Also confirmed the connectors - BNC female?

This antenna does not come with a cable. You will need to measure the distance from your unit to the antenna and get a custom coax built for that. We offer custom coax assemblies on our website. The cable will need to have BNC male connectors on both ends.

Q: Can the Rami AV-520 be mounted underneath, bottom of the tailcone?

Per the manufacturer, the ideal mounting location for the VOR, LOC & GS V Dipole Antenna is on top of the vertical stabilizer
