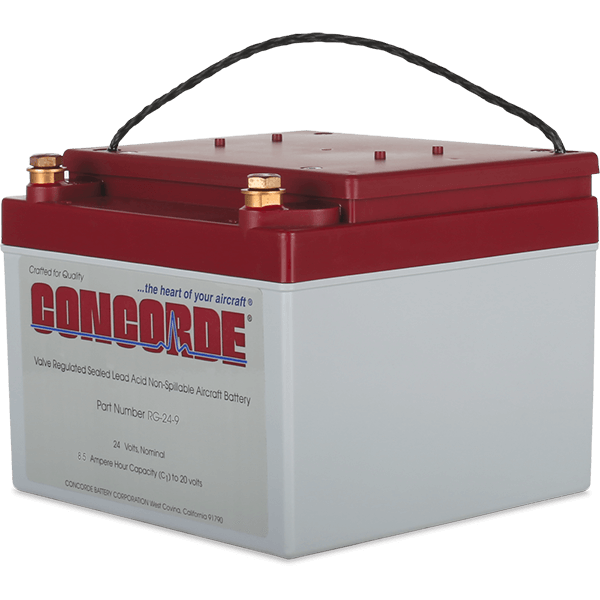

Concorde RG-24-9 Aircraft Battery

$719.00/Each
Quantity
Add to Wishlist
Part# 11-11608
MFR Model# RG24-9

Overview

General aviation battery designed for a two battery, two bus, two alternator / generator system to satisfy the requirement for a secondary system to support FADEC and / or Glass Panel installations. Designed to run in parallel only when cranking. These are the only batteries required in the aircraft.
  • Full Authority Digital Engine Control (FADEC)
  • Electronic Engine Control (EEC)
  • Electronic Flight Instrument System (EFIS) and / or
  • Electronic Ignition Systems
Two light weight 8.5 AH batteries buss tied in parallel produce more starting power than one large 17 AH battery.Recombinant Gas - The RGŪ Series are low resistance, valve regulated lead acid (VRLA) batteries.
  • Superior starting power
  • Reliable essential power in the event of a generator failure
  • Low impedance design
  • Maintenance free
  • Constructed with non removable vent valves - no addition of electrolyte or water required
  • Aerobatic: Non spillable at any altitude or attitude
  • Factory tested to assure airworthiness
  • Manufactured with absorbed glass mat separators (AGM)
NOTE: This aircraft battery is not designed or intended for turbine aircraft engine starting applications. Warranty coverage applies to reciprocating aircraft engine starting, and standby / essential power installations.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Primary Aircraft Purpose: General Aviation AGM Aircraft Battery
  • Voltage :24v
  • Rated Capacity: C1 = 1 hr.
  • rate in ampere hours: 8.50
  • Max Weight: 22.00 lb / 10.0 kg
