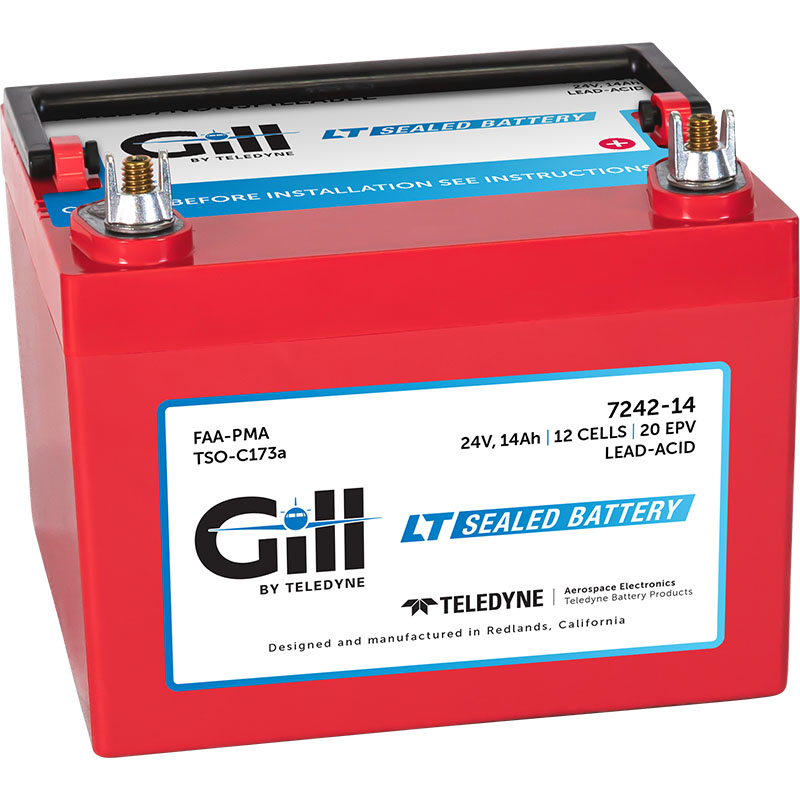

GILL® 7242-14 LT SEALED LEAD ACID BATTERY

$582.00/Each
Quantity
Add to Wishlist
Part# 11-15282
MFR Model# 7242-14

Overview

  • The 7242-14 is a “sealed lead acid battery upgrade” to the popular Gill® G-242
  • Maintenance Free –Shipped Fully Charged and No Electrolyte or Water Required
  • Non-Spillable and Proven for Aerobatic Maneuvering
  • 2 Year Factory Warranty After Installation
  • Robust Starts, Higher Residual Power & Faster Re-Charge Times
  • First Capacity Check Not Required Until 18 Months/1800 Hours
  • Cost Competitive and Best Shelf Life in Lead Acid Chemistry
  • Advanced Valve Regulated Lead Acid (VRLA) Design
  • FAA/PMA Approved, TSO Authorized and Tested to DO-160E
  • LT® Series Batteries Are Fully Recyclable
  • LT® Series Batteries Ship Hazmat Exempt
Start strong with the Gill® 7242-14 for your 24V Cessna, Piper, Mooney and Socata piston powered aircraft. See application chart link to locate your aircraft and review your battery options.

MODEL VOLTS AMP HOURS 30 MINUTE CAPACITY BATTERY DIAGRAM
7242-14 24 14 22 Full Battery Specifications

Application Guide

Manufacturer Model PMA SUP. #
Cessna 310R, T310R, 404 77
Cessna 152, F152, FA152, F172N, FR172K, F182Q, FR182 77
Mooney M20J, M20K 77
Piper PA-31, PA-31P, PA-31-300 77
Piper Aircraft PA-31, PA-31-300, PA-31-325, PA-31-350, PA-36-285, PA-36-300 77
Socata TB9, TB10, TB20, TB21, TB200 77
Textron Aviation (Beechcraft) C23, C24R, F33C, V35B, A36, G36, D55, D55A, E55, E55A, 58TC, 58TCA, 76, 95-55, 95-A55, 95-B55, 95-B55A 77
Cessna 152, A152, 172N, R172K, 177B, 177RG, 180K 182Q, F182Q, R182, A185F, A188B,T188C, T206H, TU206G, U206G, 207A, 207A, 210M, 210N, 210R, P210N, T210M, T210N, T210R, 337H, FT337HP, P337H, T337H, T337H-SP 77

Specifications

  • 24 Volts
  • Type: Sealed
  • Weight: 30 lbs.
  • 1 Hr (C1): 14
  • 30 Min (2C): 22
  • Electrolyte: Not Needed

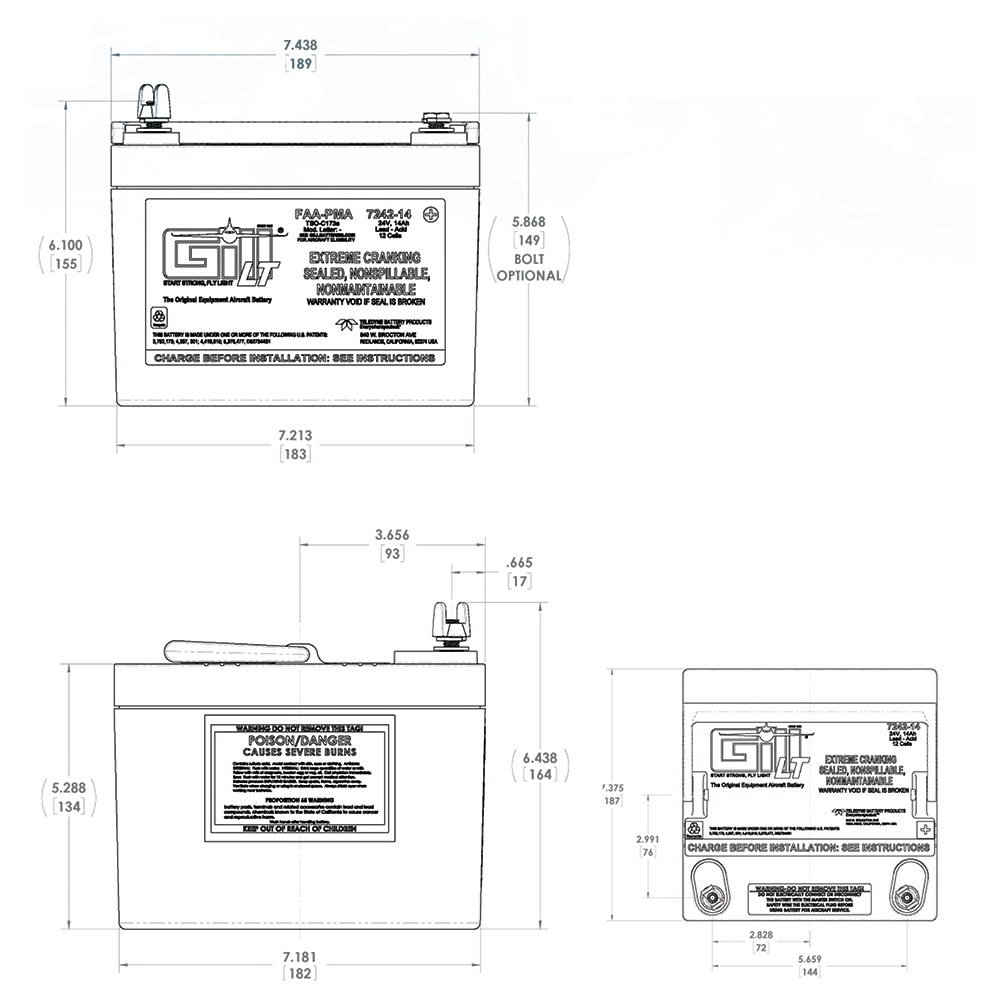

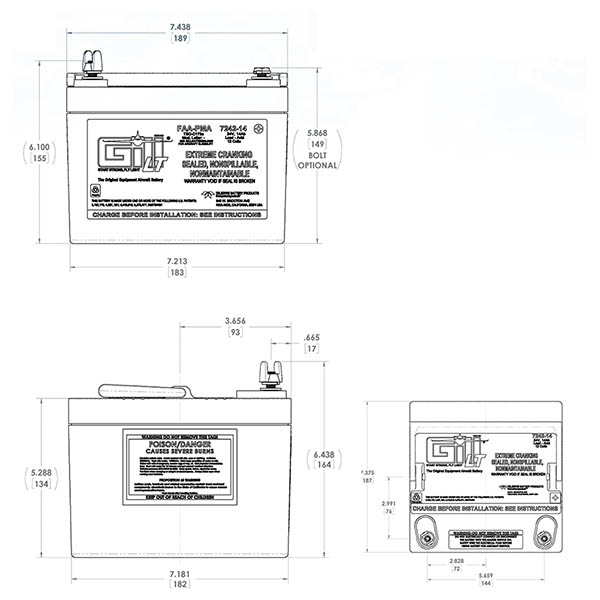

Drawing

  • Customers Also Viewed
  • Frequently Purchased With

Reviews

Q&A

Q: Is there a dimensions drawing for the Gill LT 7242-14 battery available?

Yes, we have added it to our web page in the 'Drawing' tab.

Q: What is the cold cranking amps of 7242-14 battery?

These batteries are not rated in CCA, they are now rated in Ipp, A and Ipr, A. The Ipp, A is 1200amps at 75 degrees F, 720 amps at 0 degrees F and 512 amps at -22 degrees F. The Ipr, A is 270 amps at 75 degrees F, 230 amps at 0 degrees F and 200 amps at -22 degrees F.
