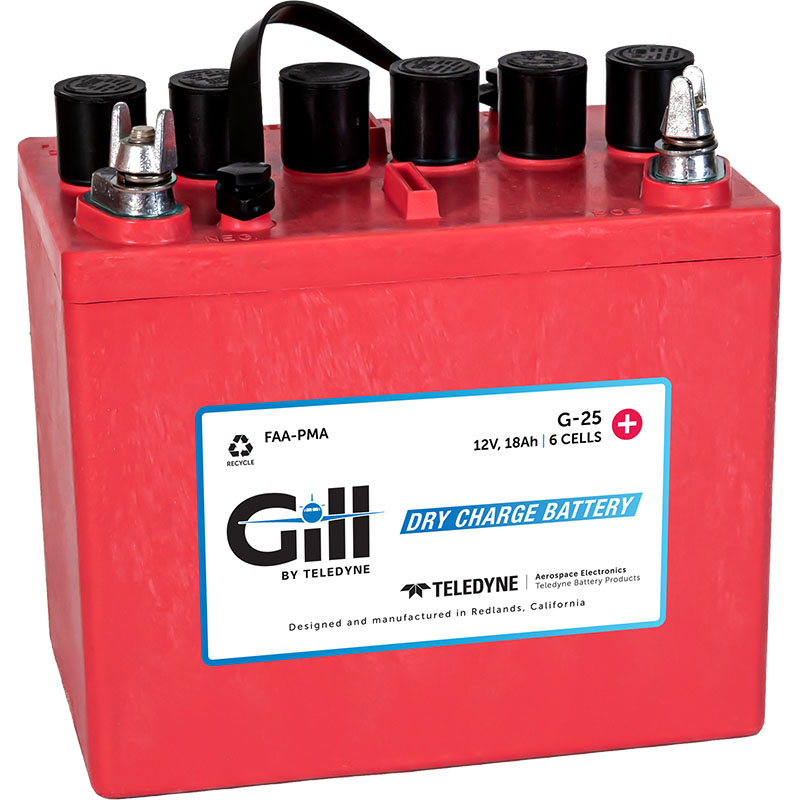

GILL® G-25 BATTERY

Select Model:
with Acidwithout Acid
Quantity
Add to Wishlist

Overview

The Gill Electric Company was founded by Mr. Lawrence Gill in 1920, in Redlands, California, where the factory remains today. At that time, Gill Electric manufactured lead-acid batteries for the automotive industry. During the war years, Gill manufactured batteries for military ground vehicles and aircraft; some of these batteries are still in production today. Gill Electric improved the drycharged process which provides a fresh charged product when the electrolyte is added. Gill has become the OEM "original equipment battery" for Raytheon, Cessna, LearJet, Mooney, Piper, Ayres, Airtractor, Maule, Scheizer and others in the aviation industry and Gill continues to be the industry's choice for quality battery products.

Application Guide

Beech 19, 23, 24, 55, 58, 77
Beechcraft 19A, B19, 23, A23, A23A, B23, C23, A24, A24R, B24R, C24R, E33, E33A, E33C, F33. G33, 35-33, 35-A33, 35-B33, 35-C33, 35-C33A, D55, D55A, E55, E55A, 58, 58A, 58P, 58TC, G58, 77, 95, B95, B95A, D95A, E95, 95-55, 95-A55, 95-B55, 95-C55, 95-C55A
Cessna 120, 140, 150, 150A, 150B, 150C, 150D, 150E, 150F, 150G, 150H, 150J, 150K, 150L, 150M, A150K, A150L, A150M, 170, 172, 172B, 172C, 172D, 172E, 172F (USAF T-41A), 172G, 172H (USAF T-41A), 172I, 172K, 172L, 172M, 172 N, F172D, F172E, F172F, F172G, F172 H, F172K, F172L, F172M, F172N, 175, 175B, 175C, P172D, 177, 177A, 177B, 188, 188A, 188B, T188C, 310, 310B, 310C, 310D, 310F, 310G, 310H, E310H, 310I, 310J, 310J-1, E310J, 310K, 310P, 310Q, 320, 340 Commander, 112, 112TC, 112B, 112TCA
Piper: PA-60-600, (Aerostar 601) PA-60-601, (Aerostar 601P) PA-60-601P, (Aerostar 602P) PA-60-602P
Piper: PA-11, PA-36-285, PA-36-300, PA-36-375, PA-38-112, PA-46-350P
Piper: PA-11, PA-22-108, PA-22-135, PA-22-150, PA-22-160, PA-23-235, PA-23-250, PA-28-140, PA-28-150, PA-28-151, PA-28-160, PA-28-161, PA-28-180, PA-28-181, PA-28-201T, PA-28-235, PA-28-236, PA-28R-180, PA-28R-200, PA-28RT-201, PA-28RT-201T, PA- 32-260, PA-32-300, PA-32R-300, PA-32RT-300, PA-32RT-300T, PA-36-285, PA-36-300, PA-36-375, PA-38-112
Socata, S.A.: GA- 7
True Flight: AA-1, AA-1A, AA- 1B, AA-1C, AA-5, AA-5A, AA-5B

Warranty Info

Warranty Information

Specifications

  • Rate (Amps): 1 hr (C1) 18, 30 min (2C) 30, 60 sec/0 deg F (CCA) 225
    Model
    Weight
    Part No.

    G-25
    12 Volt
    With Acid

    21 Lbs. (full)
    Electrolyte (2 Qts.)
    11-01833

    G-25
    12 Volt
    W/O Acid

    21 Lbs. (full)
    Electrolyte (2 Qts.)
    11-01673

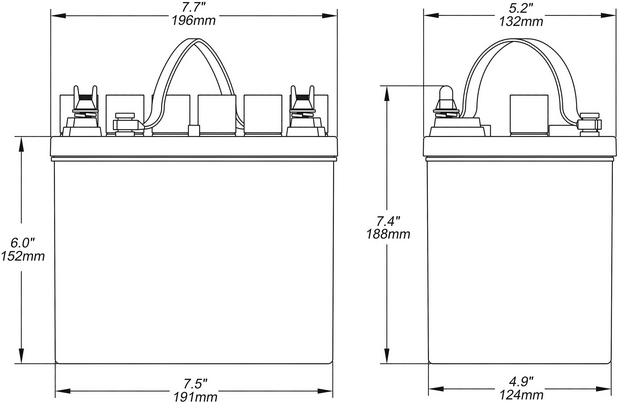

Drawing

  • Accessories
  • Customers Also Viewed
  • Frequently Purchased With

Reviews

Replacing previous Gill G-25 battery of many years of service in a Citabria 7ECA. The battery was well packaged and arrived in good order. The instructions for filling it with acid and how to charge it were clear and concise. I hope to get many years of reliable service out of this batter as well.

Jim D
December 29, 2020

Super fast shipping!

Jeffrey H
December 28, 2020

Great price and it works.

Bill
December 21, 2020

Other than the price just keeps climbing, the process was quick, easy and painless. Its a Gil 25. Might get 2 years, might get 4.

Tony L
December 20, 2020

Were replacing the same unit because we got great service from the last one for 40 months. Aircraft Spruce excellent on fulfilling the order. Ordered Friday evening.. It was here Tuesday morning. Thanks again

Cary J
December 7, 2020

price was good.free shipping and fast

Joseph L
November 20, 2020

Just like always, Aircraft Spruce makes it happen.

Bill B
September 14, 2020

I am very happy to say the battery arrived in the time promised, packaged very well and un damaged!!!! Unfortunately I cant say the same for my recent order of a can of Royco 756 oil which arrived damaged and leaking.

Walter O
August 5, 2020

Everything was as expected

Weaver A
June 8, 2020

Great service, it arrived on time as advertised, thanks.

Ron D
April 16, 2020

Q&A

Q: What's the advantage of ordering with acid versus without acid?

The battery requires acid. The only reason to order without the acid would be if you already have electrolyte that you can use to fill the battery.

Q: Does free shipping apply to the version "with acid"?

Yes, this battery will qualify for free ground shipping to the lower 48 USA with or without acid.

Q: Will I need to charge the battery, or can I just install it and go?

Gill recommends that you fill it, charge it, and then use it. If it is absolutely necessary, you can pour the acid in, wait an hour, and use it but it will hurt the longevity of the battery.

Q: Hello, I put the G-25 with acid in my shopping cart and I see it says free shipping and I see in a question, someone asked if this is eligible for free shipping and you said it is, but in my shopping cart the battery is flagged with a Hazardous symbol. Is there a shipping charge for the hazardous material? Thank you.

No, these are not considered hazardous for ground shipping in the USA. These do qualify for free ground shipping and you will not incur an additional hazardous charge if you select the free ground method.

Q: I ordered a Gill g25. My question is what type battery is this considered for charging purposes. I have battery type on my charger as Regular/AGM (Absorbed glass mat) or GEL?

It's a Dry-Charged Lead Acid Battery.

Q: What is th weight of the standard Gill G-25 serviced and charged?

Approx 21 lbs filled.

Q: My battery is nearing the end of its life. Is there any harm in ordering the replacement and just keeping it in storage, without the acid, until I’m ready to put it in sevice?

No, without the acid the battery can be safely stored without risk of deterioration.
