T7 COMMERCIAL TOGGLE SWITCHES

From $13.95 to $22.85
Reference Chart

(Hover to zoom | Use mouse wheel for +/-)

# of Poles OTTO No. Circuit Part No. Price Buy
1T7-131A1on-off
11-00755
$19.95
Quantity
1T7-131B1on-on
11-00756
$15.50
Quantity
1T7-131C1mom-off
11-00757
$18.50
Quantity
1T7-131D1mom-on
11-00758
$13.95
Quantity
1T7-131E1mom-off-mom
11-00759
$18.50
Quantity
1T7-131F1on-off-on
11-00760
$18.50
Quantity
1T7-131G1mom-off-on
11-00761
$17.70
Quantity
2T7-231A1on-off
11-00762
$22.85
Quantity
2T7-231B1on-on
11-00763
$20.50
Quantity
2T7-231C1mom-off
11-00764
$20.50
Quantity
2T7-231D1mom-on
11-00765
$15.85
Quantity
2T7-231E1mom-off-mom
11-00766
$21.50
Quantity
2T7-231F1on-off-on
11-00767
$22.85
Quantity
2T7-231G1mom-off-on
11-00768
$20.50
Quantity
Subtotal $0.00
Add to Wishlist

Overview

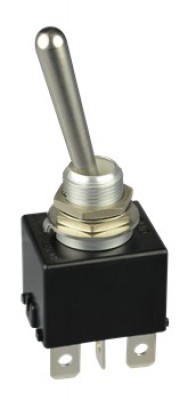

T7 commercial toggle switch, waterproof bushing seal switches up to 16 amps 15/32-32 thread mount. Mounting hardware included.

Note: MOM designates Momentary On.

These toggle switches are rugged, high performance sealed switches designed for use under severe conditions found in heavy equipment, industrial control, marine and appliance applications. The T7 series is sealed to both IP68S and IP69K. OTTO’s front panel seal is accomplished with an O-ring under the bat handle.

T7 toggles are offered in single and double pole configurations. A choice of models are offered to handle power levels to 16 amps, 0.5 HP and low level electronic switching applications. These toggles feature positive detent action for safe switching operation. In conjunction with the unique OTTO snap-action switch mechanism, the T7 offers non-teasible contact transfer.

High contact pressure and superior contact wiping action of the OTTO design makes the T7 an excellent choice for switching loads from logic level up to 16 amps. Mounting hardware provided includes two hex nuts, one lock-washer and one key-way washer.

Features

  • Sealed to IP68S and IP69K
  • Switches up to 16 amps
  • Withstands extreme shock & vibration
  • Positive detent, non-teasible contact transfer
  • 2 & 3-position, momentary & maintained action
  • Choice of terminal styles
  • UL recognized & CSA certified
  • RoHS/WEEE/Reach compliant

Ratings

Ratings

Specifications

  • Customers Also Viewed
  • Frequently Purchased With

Reviews

extremely cheap product. I purchased them and 8 years later never even used them heated shop they failed.

Ams A Verified Purchase

COMM. TOGGLE SWITCH T7-231A1

August 5, 2021

They seem to be high quality. They come with a star washer unlike the cheaper ones

Jason
April 29, 2021

as advertised

Stephen
February 27, 2017

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Can you please give dimensions of these T7 commercial switches?

We have added the Dimensions PDF to the 'Documents' tab of this web page. Please review them there.

Q: ARE THE T7 SWITHES FAA APPROVED FOR CERTIFIED PLANES ?

These do not have specific FAA Approval. Please contact your A&P to determine if they can be legally installed in your aircraft.
