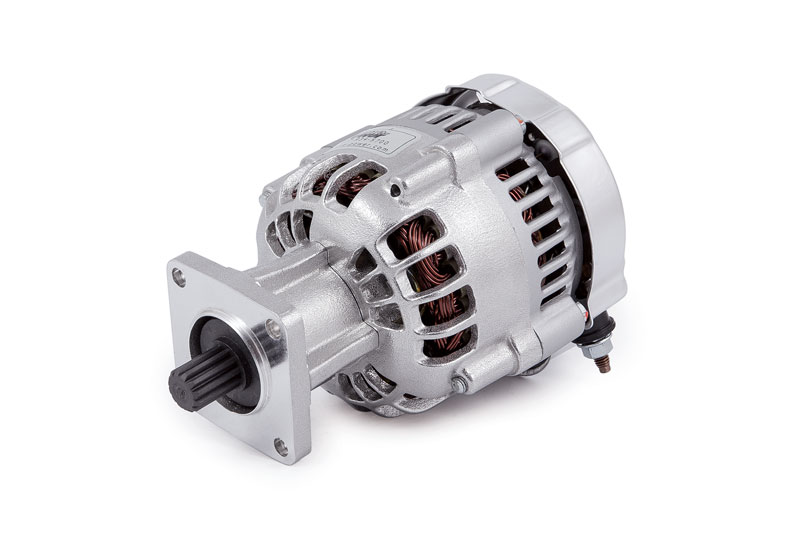

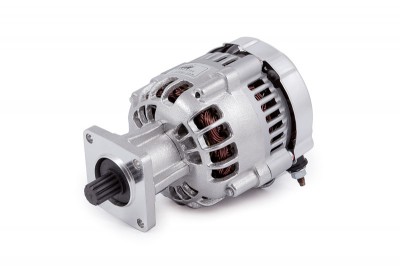

Hartzell Plane Power Alternator Kit Fs1-14B

$1352.00/Each
Part# 07-01883
MFR Model# FS1-14B

Overview

The FS1-14B alternator's lightweight (6.0 pounds), compact size and flexible installation, on either Continental or Lycoming engines, makes it the ideal alternator solution for a wide variety of kit-built aircraft. Another distringuishing feature is that, depending on the builder’s needs and aircraft configuration, the FS1-14B alternator can be used as the aircraft’s primary power source.

About the FS Series alternator:
  • Power rating for the FS1-14B: 14.2 volts
  • Power rating for FS1-14: 13.6 volts
  • 30 amps continuous power output at actual Continental or Lycoming engine cruise power settings
  • Internal regulators and over-voltage protection
  • Simple installation on any AND 20000 pad (vacuum pad) on Continental and Lycoming engines
Note: Regulators are not included with the alternators. They must be purchased separately. Please see the "Accessories" tab for the associated regulators.

These are complete kits which include everything you need to add an alternator to your experimental aircraft engine including not only the alternator, but also all new brackets, spacers, mounting hardware and belt.

Specifications

  • Volt/Amps: 12/30
  • Replaces: 14.2 volt, 30 amp primary alternator for aircraft not requiring more than 30 amps at cruise RPM and little or no output below approx. 1200 RPM. It mounts on an unused AND 20000 pad (vacuum pad) on both Lycoming and Continental engines
  • (Internal Regulator)
  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

The sheer coupling from the drive port to the innards of the alternator sheered within 10 minutes of installation! Looks like a fault within the plastic moulding. Not impressed with its quality.

Mark S Verified Purchase

FS1-14B HARTZELL PLANE POWER ALTERNATOR

October 5, 2022

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: The description states the FS1-14B has an internal regulator and O/V protection. The "Note" states you must buy a separate regulator. Which is it?

The FS1 14B is internally regulated. It does not an external regulator.
