Airpath Compass Repair Kits

From $1.15 to $92.75
Description Part Number Price Buy
COMPASS REPAIR W/FLUID
10-08000
$12.50
Quantity
COMPASS REPAIR W/O FLD
10-08020
$10.50
Quantity
COMPASS FLUID 1/2 PINT
10-08100
$2.45
Quantity
COMPASS FLUID QUART
10-08200
$8.75
Quantity
AIRPATH SPARE DEVIATION CARD HOLDER
10-01658
$2.39
Quantity
AIRPATH SPARE COMPASS DEVIATION CARD C23-807
10-01659
$1.15
Quantity
AIRPATH SPARE CB21-914H GASKET
10-00505
$12.50
Quantity
COMPASS DIAPHRAGM C21
10-01386
$5.65
Quantity
AIRPATH SPARE C2300/C2400 FACE GLASS CB21-913X
10-08010
$29.60
Quantity
AIRPATH SPARE CB21-915G GASKET
10-00368
$2.50
Quantity
AIRPATH SPARE RUBBER GASKET FILLER CAP CB21-736
10-06036
$3.55
Quantity
AIRPATH SPARE COMPENSATOR ASSY
10-06037
$92.75
Quantity
AIRPATH SPARE TEFLON GASKET FILLER PLUG C21-736
10-06039
$3.35
Quantity
AIRPATH SPARE DEVIATION CARD WINDOW C23-806
10-06040
$1.15
Quantity
AIRPATH SPARE WHITE LIGHT ASSY
10-06041
$57.75
Quantity
AIRPATH STD OVERHAUL MANUAL
10-06042
$36.75
Quantity
Subtotal $0.00
Add to Wishlist

Overview

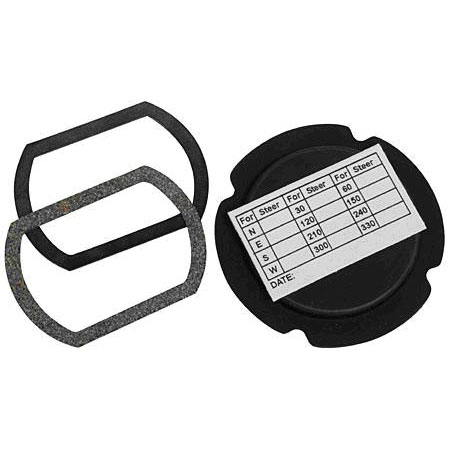

Airpath compass repair kits. Includes (2) Gaskets, (1) Deviation Card, (1) Diaphram. With or without 1/2 pint of Compass Fluid.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Application

  • C-2200 Series
  • C-2300 Series
  • C-2350 Series
  • C-2400 Series
  • C-2450 Series
  • C-2475 Series
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

One quart. Exactly what I needed.

Ron K Verified Purchase

COMPASS FLUID QUART

November 8, 2023

It worked well for me. I would recommend it. I ended up filling the unit through the front rather than rear membrane since there is not enough liquid to submerge the whole unit. Ended up bubble free.

Dmitriy K Verified Purchase

COMPASS REPAIR W/FLUID

November 4, 2023

The gaskets and diaphragm in this kit fit my compass perfectly and fixed the leak!

Ronnie H Verified Purchase

COMPASS REPAIR W/FLUID

October 27, 2023

Worked great , I used Baby Oil for fluid , won’t stink if leaks and east to get , less reactive than the mineral spirits …

Murawski E Verified Purchase

COMPASS DIAPHRAGM C21

October 1, 2023

Takes 20 minutes worked great. Takes a little goofing to get rid of air bubbles.

Adam W Verified Purchase

COMPASS REPAIR W/FLUID

September 20, 2023

Good one

Todd H Verified Purchase

AIRPATH SPARE COMPASS DEVIATION CARD C23-807

August 30, 2023

Worked as advertised

Todd H Verified Purchase

AIRPATH SPARE DEVIATION CARD HOLDER

August 30, 2023

Anthony F Verified Purchase

AIRPATH SPARE COMPASS DEVIATION CARD C23-807

August 1, 2023

Included the front and rear gaskets and enough compass fluid to service two compasses. Worked perfectly.

Mark A Verified Purchase

COMPASS REPAIR W/FLUID

July 22, 2023

plenty of fluid bay faaar

Mark C Verified Purchase

COMPASS FLUID QUART

July 20, 2023

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does the repair kit come with both gaskets for the glass?

Yes, both gaskets are included.

Q: Does the Airpath Compass Repair kit come with instructions on how to use it?

No, it does not come with instructions.

Q: Does this kit also fit the military model CB-2100-T4 Airpath compass?

This is a generic repair kit and should work with the Airpath compass you mention.

Q: Will this kit fit an old Airpath B-16 compass?

If the B-16 exceeds 2-1/4 inches in size or it is a bubble lense this will not work.
