(Hover to zoom | Use mouse wheel for +/-)

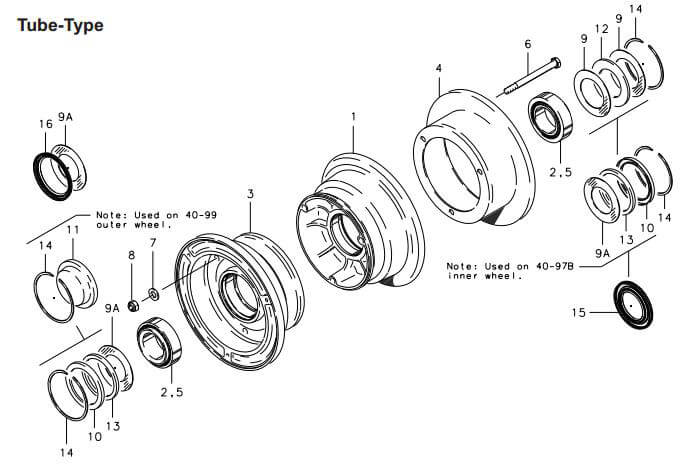

Figure # | Part Number | Description | Qty / 40-97A | Price | Buy |
---|---|---|---|---|---|
Complete Assy. | 40-97A | Cleveland Wheel Assembly 40-97A | -- | $1020.00 | |
1 | 161-03000 | Inner Wheel Half Assembly | 1 | $417.00 | |
2 | 214-00100 | Cup-Bearing | 1 | $36.65 | |
3 | 162-02700 | Outer Wheel Half Assembly | 1 | $464.00 | |
4 | 164-02601 | Brake Disc | 1 | $159.75 | |
5 | 214-00200 | Cone-Bearing | 1 | $140.75 | |
6 | AN5-35A | Bolt | 3 | $1.38 | |
7 | AN960-516 | Washer | 3 | $0.04 | |
8 | AN365-524A | Nut | 3 | $0.20 | |
9A | 153-00300 | Ring-Grease Seal | 1 | $16.85 | |
14 | 155-00100 | Snap Ring | 2 | $13.50 | |
15 | 154-12000 | Molded Grease Seal | 1 | $37.85 | |
16 | 154-12400 | Molded Grease Seal | 1 | $32.50 |
MODEL NO. 40-97A wheel with brake disc and 1-1/2" dia. bearings fits Cessna 172, 175, 182 |
I havent installed these wheels as of yet but expect them to function as the originals. They are a complete assembly that is greased up and ready to go. Beautiful
Received quickly even though spruce was out at the time they got it shipped out quick to help my client
fit&worked perfect
No, wheel assembly 40-97A is intended for use with the following brake assemblies: 30-63A, 30-63, 30-56A, 30-56. Brake assembly 30-96 is used with wheel assembly 40-131 per the Cleveland parts catalog.
This is a main wheel assembly and is attached to the main landing gear leg with a straight axle. It sounds like you are looking for a nose wheel. Please contact our sales staff by clicking the "Contact Us" link in the upper right portion of the web page. Our sales agent will need to know the aircraft year, make, and complete model number to identify.
Thank you for the information. We will post for customer reference.
It is sold as a complete wheel and per the application guide it is correct for that aircraft.
Yes everything is included. Discs, bearings, seals, etc etc.
#8 is AN365-524A
#10 would be 153-01500 and #13 would be 154-01300.
