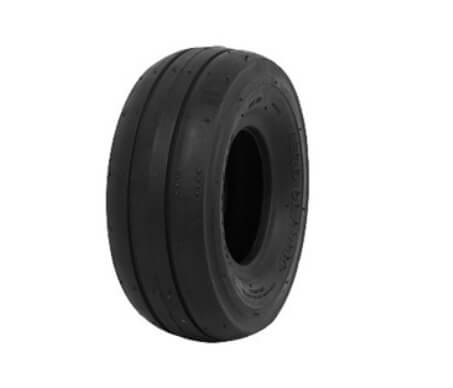

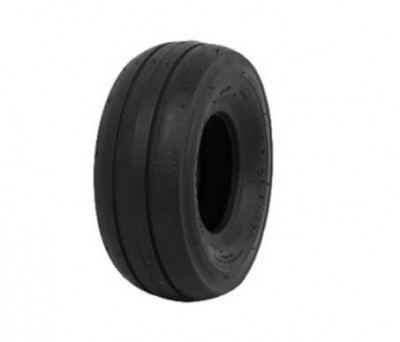

AERO CLASSIC FLAT RIB TIRE 11/400-5 8PLY

$69.95/Each
Part# 06-01240
MFR Model# DTR5582

Overview

Aero Classic is our proprietary line of over 50 aircraft tires and tubes made to meet or exceed the original specifications. The Aero Classic range boasts tires and tubes from 8" diameter for tailwheels, up to 56" diameter C-130 inner tubes...and everywhere in between.

Specifications

  • Speed Rating: 100 mph
  • Load Rating: 650 lbs
  • Ply Rating: 8

Reviews

Harry L Verified Purchase

AERO CLASSIC TUBELESS TIRE 11-400-5 8PLY

July 27, 2021

These are the standard main tires on Staudacher 300 and PANZL S330 aircraft. I own the latter. Your choice for an 11/400-5 tire are the Cheng/Shin (Lamb) or the Aero Classic. The Aero Classic 8 ply is by far the most resilient and therefore longest lasting, typically running 2-3x the number of cycles as the Lamb equivalent. Definitely worth the premium! Aaron McCartan

Aaron M
August 14, 2019

I am very happy with my new Aero Classic tubeless tires. I installed them and flew them to Oshkosh, Marion Indiana, Buena Vista Colorado and back home to Tehachapi CA. They worked perfectly, never lost pressure and I flew as high as 14,000 feet in Colorado. Love my new tires, thanks Jim. Mike Melvill

Mike M
August 5, 2019

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Could you tell me the physical outside diameter of the 11 x 4 x 5 Aero Classic tires? I have very snug wheel pants on my airplane. Thank you. Mike

The outside diameter of this tire is 11 inches.

Q: Could you tell me the physical outside diameter of the 11 x 4 x 5 Aero Classic tires? I have very snug wheel pants on my airplane. Thank you. Mike

The outside diameter of this tire is 11 inches.

Q: Does this Aero Classic tire 11/400X5 require a tube? Which one?

Yes, this requires an 11/400 X 5 tube. Part number 15-04651 can be used for example.

Q: What size inner tube fits the Aero Classic 11-400-5 8 ply rib tire?

See part # 15-04651.

Q: What is the speed range of this tire?

Speed Rating: 100 mph

Q: Are 11/400-5 and 11-400X5 and 11 X 400 X 5 all the same size designators? What does the 400 part measure? Why does a 500-5 tube not need the third part of the size measurement?

Those are all the same sized tire. They have a diameter of 11" they are 4" wide and they are used with a 5" wheel. The 500-5 is 5" wide and used with a 5' wheel. I believe they don't add the third measurement be cause it is a "standard wheel" and the diameter can vary slightly from one manufacturer to the other.

Q: Does this need a tube? I see an answer saying it requires a tube but its titled AERO CLASSIC TUBELESS TIRE 11-400-5 8PLY in my cart and literally says tubeless on the tire. So is it tube or tubeless?

The tire itself is rated as tubeless but you would have to have a tubeless/sealed wheel to use it as such. Most do not which is why we recommend the tube.
