AZUSALITE NYLON WHEELS ( MODELS 1 / 3 / 4 )

Select Size:
4-Inch Wheel5-Inch Wheel6-Inch Wheel
Quantity
Add to Wishlist

Overview

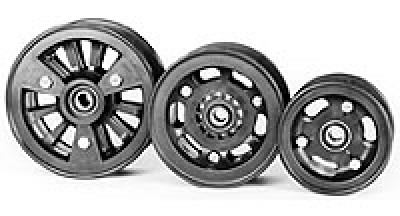

Azusalite wheels are made from engineering grade Nylon. Combines high tensile and compressive strengths and good impact resistance. Excellent for many homebuilt and ultralight aircraft applications since they weigh 60-70% less than aluminum wheels. Azusalite wheels are offered in 4", 5" and 6" models. Replacement parts and unlisted accessories available on request.

06-02500: AZUSALITE 5" Wheel Used as the main wheels on the Mohawk ultralight, this 5" wheel features 5/8" I.D. sealed ball bearings. Uses 4.10 / 3.50 x 5 or 5.00 x 5 tire & tube.

06-02600: AZUSALITE 4" Wheel A 4 inch Azusalite wheel featuring 5/8" sealed ball bearings. Uses a 4.10 / 3.50 x 4 tire and tube.

06-02700: AZUSALITE 6" Wheel - A 6" Azusalite wheel; comes complete w/ 5/8" sealed ball bearings.Uses 4.10 / 3.50-6 or a 6.00-6 tire & tube.
  • Accessories
  • Customers Also Viewed
  • Frequently Purchased With
  • Related Items

Reviews

Harry B Verified Purchase

AZUSALITE MODEL #3 4" WHEEL

June 4, 2021

These nylon wheels have been serving well. Recently replaced the nose wheel rim with the 5# nylon rim and saved 13+ ounces. Good value.

Phill
February 8, 2021

Good light weight wheel but can’t take a lot of side load

Robert K
September 7, 2020

Light, tough, precise and capable of necessary loads. Im very pleased with the wheel. Since no brake is available, Im designing a disk and caliper to use with the wheel. This should favorable affect net weight by about 1.5 to 2.0 lbs. Im excited to complete the assembly.

David B
July 21, 2020

I need a single for an ultralight sailplane. This wheel saves me 1.5-2 lbs. I am designing a caliper brake to work with the wheel since no brake is available. talking with Azusa, they welcomed the design and would consider it.

David B
July 21, 2020

Here is an ideal super light wheels for ultralight aircraft 103 exemption: light, respectively strong for the weight limit of 103 (to be safe though dont exceed about 370lbs max force per wheel on rough landing), easy to assemble. Using inner tube is a must. Here I found the ideal set for these wheels - everything mounts well together: 6 wheel #06-02700, Ribbed round tire 13-400 x 6 / #7005, Azusa Tube # 7133 410/350 X 6 , valve 90deg, part #06-00075, I would recommend aircraftspruce to sell all these as a set for aircraft application instead of the go-cart sawtooth set they currently sell. Also would be great if they publish the max designed load limit of this set with ribbed tires. Thanks to aircraftspruce for their great support of our projects. Vladimir Blanshey eBirdman, TN

Vladimir B
September 15, 2017

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the load rating for the Azusalite nylon wheels?

It depends on what tires you are using. The wheels themselves have a load rating of up to 507 lbs. But if the tires are rated for less than the wheels, the wheels may fail at a lower rating.

Q: What is the weight of the Azusalite nylon 6 inch wheels?

The Azusalite 6 inch wheels (part # 06-02700) weigh approximately 1.82 lbs.

Q: Will the Azusa Tire/Tube #06-03000 work on the Azusalite 06-02700 wheel?

Yes, these will fit each other.

Q: The 4 wheel has MAXIMUM 20 PSI molded into the rim. Why isnt that info listed on the product page? It should be.

Thank you for your suggestion. We have added it to the overview.

Q: How wide is The Azusalite 6 inch wheel (part # 06-02700) ? I understand it is 6 diameter but how wide is it?

3 inch wide
