Compression Type Kit - FAA/PMA

Add to Wishlist
Part# 05-11458
MFR Model# D-205-100

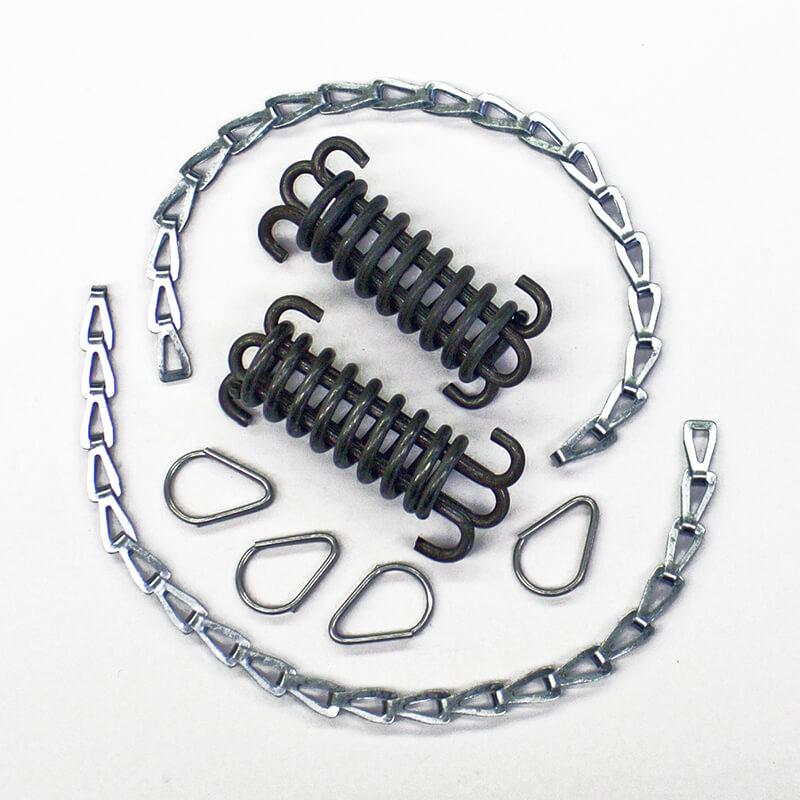

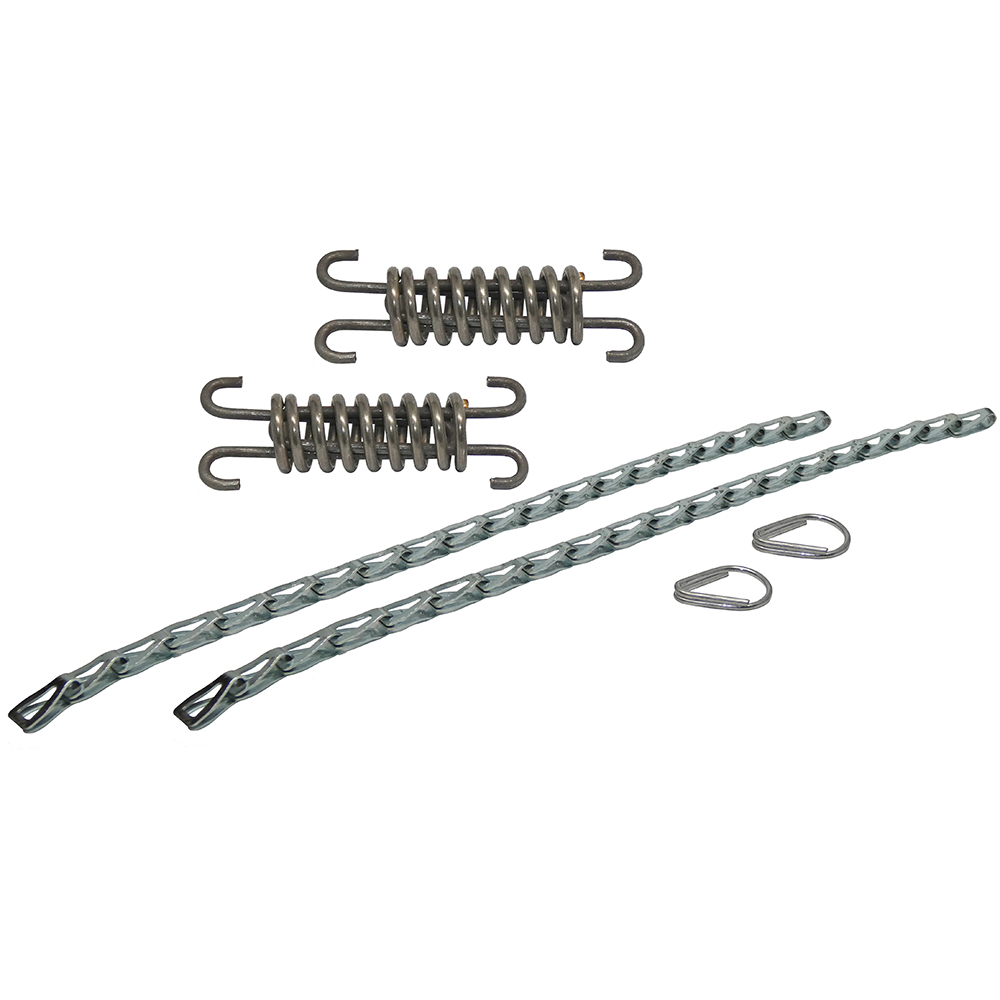

Spring Connector Kit, Compression Type

Keeps rudder neutral - no tension on the post. Complete with 2 springs, 4 connector clips and 2 linkage chains.

Code 4
California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.


exact replica, replacement of previously used, chain could be chromed or corrosion proofed, but functions as expected. thank you!

Mark Y Verified Purchase


February 8, 2023

Finally have good ground control on my pa18 replica (Wag aero super sport) with the skis installed World of difference . The old ones were just worn out.

Tony E Verified Purchase


December 23, 2021

My extension springs were just stretching and not pulling the tailwheel arms. This kit had everything I needed to upgrade my tailwheel steering. There were lots of leftover chain links that are now in the tool kit.

Rob F
April 13, 2021


Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What are the dimensions of the springs?

Length: 2.48" | Width: 1" | Thickness: .15"

Q: What is difference between P/N 06-15600 and P/N 05-11458? Im looking for a light weight spring for pietenpol air camper. Thanks.

It appears these are the same as they share the same dimensions just that P/N# 06-15600 is for experimental applications as 05-11458 is FAA/PMA approved.

Q: Do the connector clips fasten to rudder horn and to tail wheel horn (2 clips each side)? What fastens chain to spring?

On the compression tailwheel spring kit there are four clips to attach to the rudder horn and to the tail wheel.
