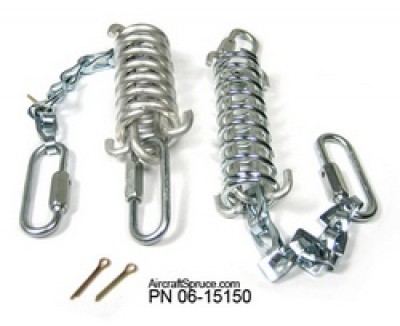

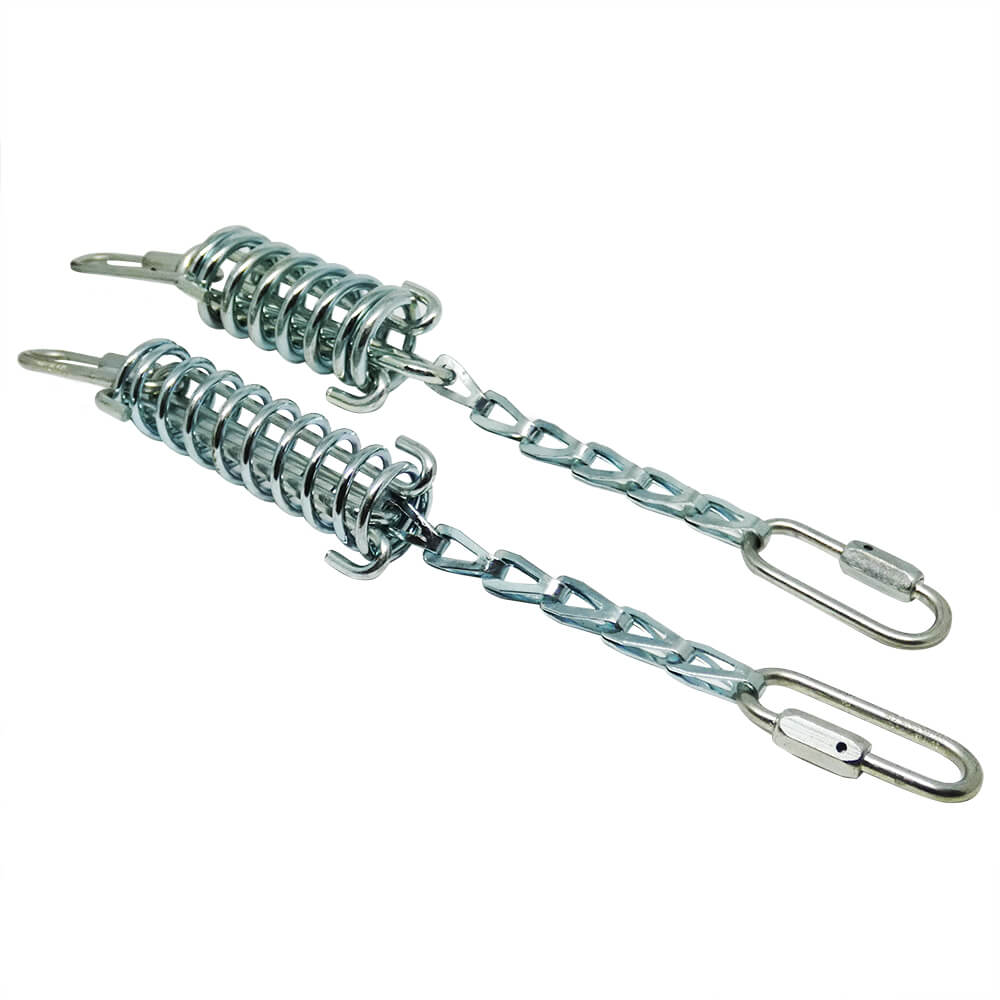

Maule Anti-Shimmy Connector

$159.00/Set
Quantity
Add to Wishlist
Part# 06-15150
MFR Model# 4001-29

Overview

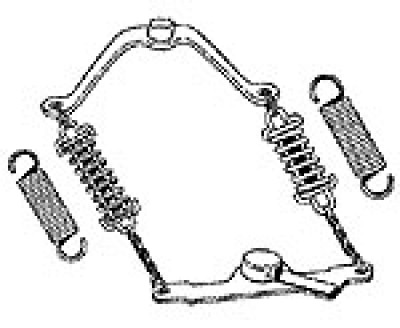

A high and low frequency spring is used to upset the natural frequency of the tailwheel. The lighter spring is used on the left side.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Reviews

Installed comp spring on a 1946 7CCM champ. The springs worked perfectly. Had no trouble with the installation.

Jerry M Verified Purchase

Maule Anti-Shim Comp Spring Kit 4001-29

September 10, 2024

They function as designed with easy install. A good bit pricy.

Thomas I Verified Purchase

Maule Anti-Shim Comp Spring Kit 4001-29

August 14, 2024

Spring material very soft. One spring has stretched after 2 flights. Tailwheel has swivel pin release, so that is how much pressure it experienced.

Kevin L Verified Purchase

Maule Anti-Shim Comp Spring Kit 4001-29

May 25, 2023

Very good spring kit. Well constructed.

Scott J Verified Purchase

Maule Anti-Shim Comp Spring Kit 4001-29

October 21, 2022

Good buy and perfect fit.

Mark S Verified Purchase

Maule Anti-Shim Comp Spring Kit 4001-29

April 13, 2022

I had one of the small Tailwheel spring clips pull open on my Extra 300. This is the prefect replacement system with the oval clips with safety cotter pins.

Kevin E
May 21, 2017

Works great to stop the shimmy on the Scott 3200 tailwheel on my CUB

Tony B
December 15, 2015

Could have been suppied with slightly longer pieces of chain, too short for my aircraft.

Don A
April 27, 2021

Andy M
August 26, 2018

Was wanting to put these on a Taylorcraft with a maule tail wheel. The distance between the tail wheel an the rudder arm was to short.

Randall R
January 4, 2019

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is this Maule anti-shim connector kit FAA Approved? Does this kit include an STC for a Piper PA18-135?

Per the manufacturer, everything in the kit is approved. However, it does not come with STC and a field approval may be required for installation in certified aircraft.

Q: What size are these Maule anti-shimmy springs? And what length are the connectors?

The springs are about 2.25 long and 1" in diameter. The connectors are 1-13/16 and the chain is 4" long.
